Deployable Antenna Reflectors
large-space-structures

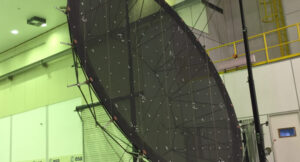

Deployable large space antenna reflectors ranging from 0.5m to 35m+ aperture diameter using umbrella and peripheral-ring backing structures, usable up to Ka-band.
Technical specifications
- Small Deployable Reflectors
- 0.5m - 4.0m
- Medium Deployable Reflectors
- 4.0m - 8.0m
- Large Deployable Reflectors
- 8.0m - 18.0m
- Very Large Deployable Reflectors
- 18.0m - 35.0m and above
- Frequency capability
- Up to Ka-band
About
Large Space Structures (LSS) offers deployable antenna reflectors across four size categories, fitted with proprietary FlexRS reflecting-surface technology, usable up to Ka-band depending on category. The company is developing shaped deployable reflectors combining mesh-based designs with radiation pattern contouring, and in partnership with Thales Alenia Space, in-orbit reconfigurable reflectors using FlexRS Category III surfaces.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
