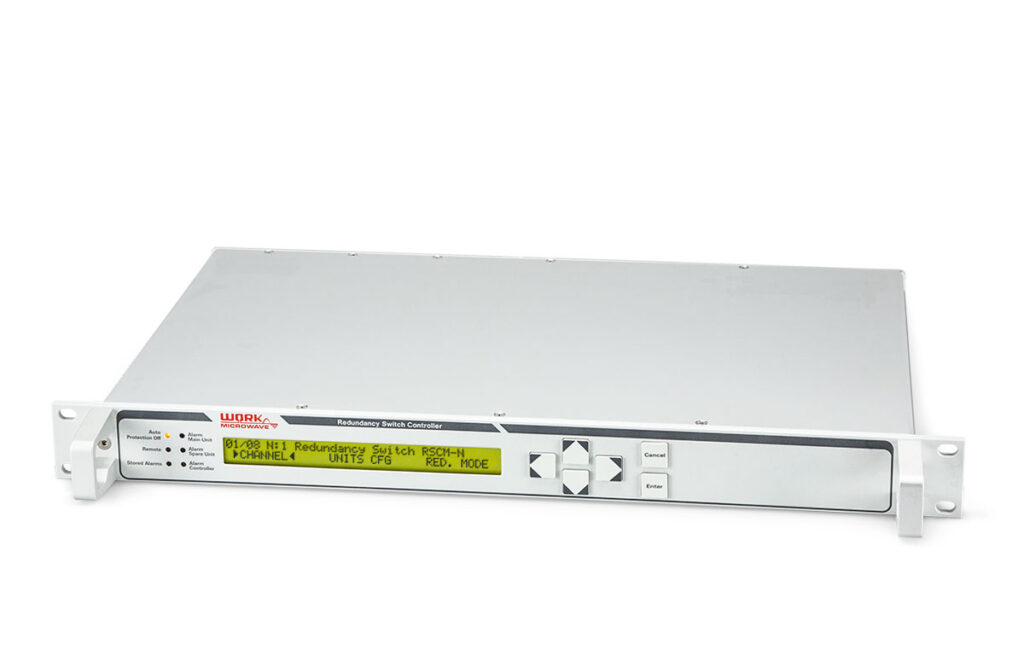

Modular Redundancy Switch N:1
WORK Microwave
A modular redundancy system designed for frequency converters, supporting configurations from 2:1 up to 8:1.
Technical specifications
- Redundancy Config
- 2:1 up to 8:1
- Product Line
- Redundancy switches
- Application
- DTH Broadcast
- Item Number
- RSCM
- Interface
- RS232, RS422/485, TCP/IP over Ethernet
- Power
- 25 VA / 7 W
- Supply voltage
- 100…240 V AC nominal, 90…264 V AC max
- Frequency
- 50…60 Hz
- Operating temperature
- -30 °C … 60 °C
- Dimensions
- 483 x 44 x 270 mm³ or with option L 483 x 44 x 470 mm³ (WxHxD)
- Mass
- approx. 4 kg
- Relative Humidity
- <95% non-condensing
- Mains Fuse
- 2 x 2 x 2.0 A time-lag fuse
About
The Modular Redundancy Switch N:1 is a highly flexible system for frequency converters, offering redundancy configurations from 2:1 up to 8:1. It features a highly flexible control unit and transfer switches mounted on separate panels for enhanced modularity. The system supports both automatic and manual switching operations, ensuring reliable performance. For added resilience, it includes a redundant power supply. An optional uplink power control feature is also available. This product is suitable for applications in DTH Broadcast and is identified by the item number RSCM. It is part of WORK Microwave’s Redundancy switches product line.
