MS3100A 16S Wall mounting receptacle
Hunan Kaida Space Connectors

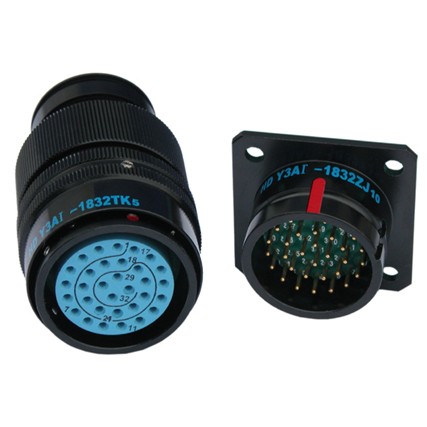

A wall mounting receptacle with 1-20 UNEF A Thread and 7/8-20 UNEF V Thread.
Technical specifications
- A Thread
- 1-20 UNEF
- B (Min)
- 9.53
- K Min /Max
- 1.58/3.96
- L Max
- 42.87
- M+0.79/-0.00
- 14.28
- R±0.12
- 24.61
- S±0.79
- 32.54
- T+0.25/-0.12
- 3.05
- V Thread
- 7/8-20 UNEF
About
The MS3100A 16S is a wall mounting receptacle designed for electrical connections. It features a 1-20 UNEF A Thread and a 7/8-20 UNEF V Thread. The receptacle has a B dimension of 9.53, a K dimension ranging from 1.58 to 3.96, an L dimension of 42.87, an M dimension of 14.28, an R dimension of 24.61, an S dimension of 32.54, and a T dimension of 3.05. This component is part of the MS3100 Class A series.
