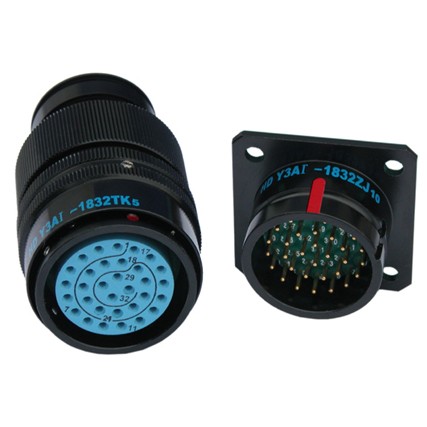

MS3100A 18 Wall mounting receptacle
Hunan Kaida Space Connectors
A wall mounting receptacle with 1 1/8-18 NEF A Thread.
Technical specifications
- A thread
- 1 1/8-18 NEF
- B
- 15.88 Min
- K min /max
- 2.39/5.15
- L max
- 52.37
- M+0.79/-0.00
- 19.05
- R±0.12
- 26.9
About
The MS3100A 18 is a wall mounting receptacle designed for electrical connections. It features a 1 1/8-18 NEF A Thread. The receptacle has a B dimension of 15.88, a K dimension ranging from 2.39 to 5.15, an L dimension of 52.37, an M dimension of 19.05, and an R dimension of 26.9. This component is part of the MS3100 Class A series.
