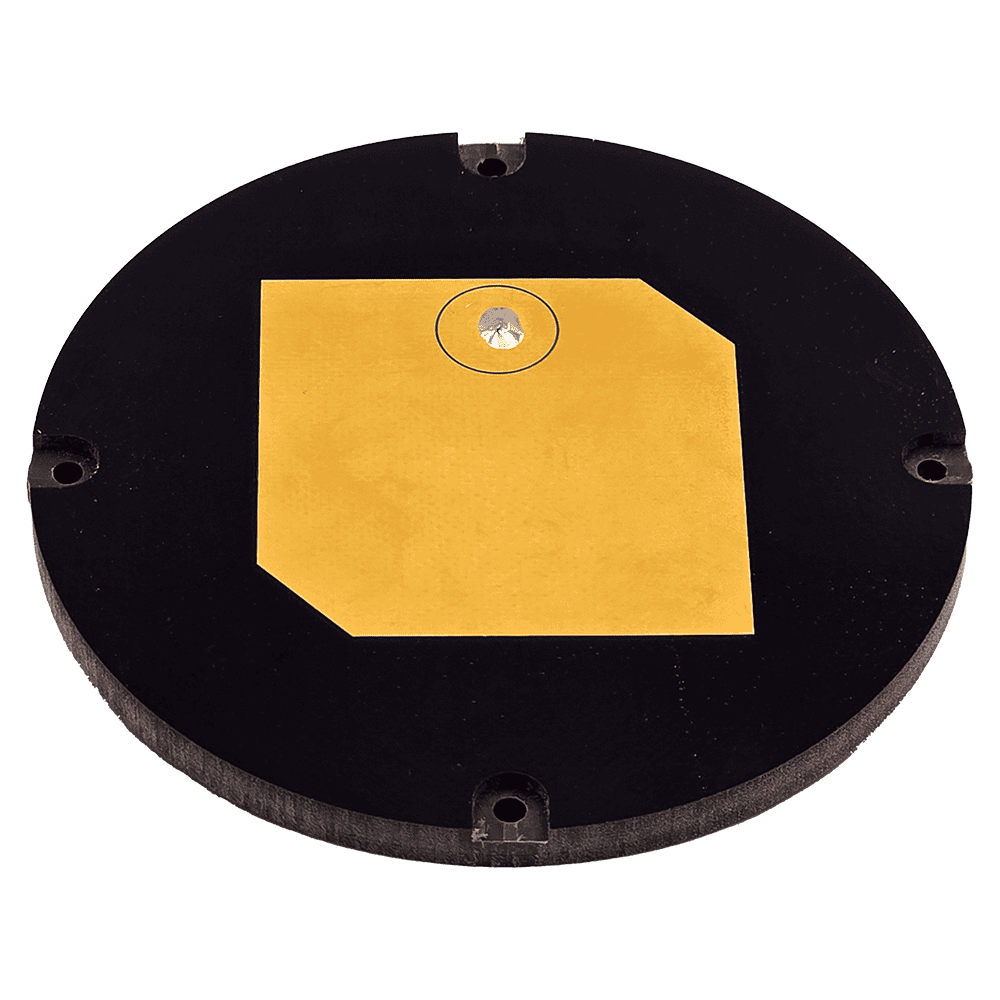

S-Band Patch Antenna
Innovative Space Logistics
The ISISPACE S-Band Patch Antenna is a lightweight, compact passive antenna designed for CubeSat platforms, operating in the commercial S-band range for telemetry and payload data transmission.
Typed specifications7 values
Discloses 2 of 10 fields engineers filter by in this category (category median 3).
- Mass
- 60 g max · product page
- Frequency range
- 2 200–2 290 MHz product page
- Envelope (L×W×H)
- Diameter: 80 mm product page Height (without connector): 5.0 mm | Connector height (straight ): 9.5 mm
- Power consumption
- 2 W product page
- Operating temperature
- -20–50 °C product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Mass
- <60 g
- Dimensions
- Diameter: 80 mm
- Dimensions (without connector)
- Height (without connector): 5.0 mm
- Dimensions (straight)
- Connector height (straight ): 9.5 mm
- Operating temperature
- -20 to +50 °C
- Frequency
- 2200-2290 MHz
- Power
- 2 W
About
The ISISPACE S-Band Patch Antenna is a passive antenna engineered for the commercial S-band range (2200-2290 MHz). It is designed to be lightweight and compact for seamless integration with CubeSat platforms. The antenna offers superior RF performance and structural compatibility, backed by proven flight heritage, to ensure mission success. Its design utilizes Rogers PCB material, which minimizes signal losses compared to traditional FR-4 PCBs, thereby delivering optimal efficiency for both telemetry and payload data transmission.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
