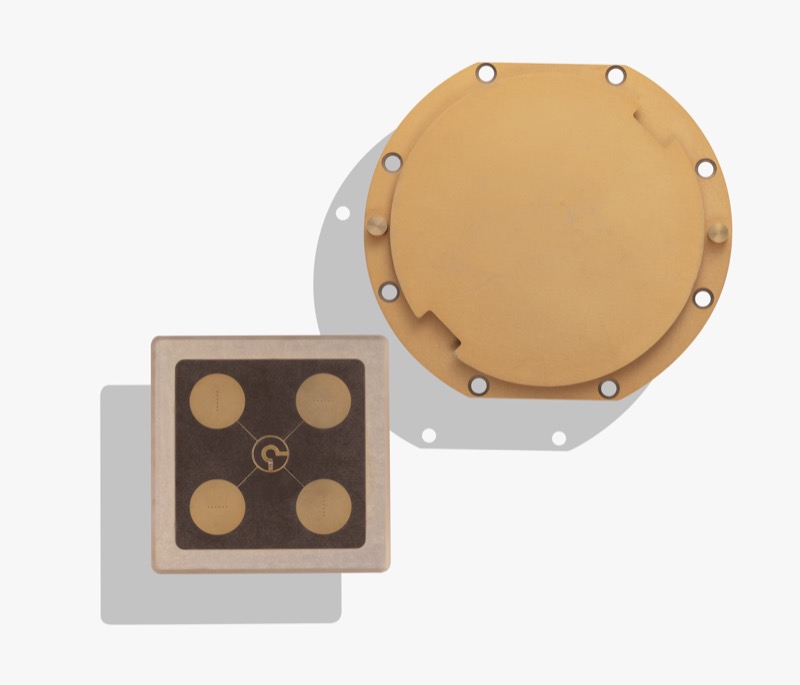

PULSAR-SANT
AAC Clyde Space
The PULSAR-SANT is a high-performance, polarized S-band antenna designed for nanosatellites, offering a small size, low profile, and rugged design for easy system integration.
Typed specifications23 values
Discloses 7 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- S datasheet p.1
- Peak gain
- 7 dBi datasheet p.2 7 dBi min
- Mass
- 50 g max · datasheet p.2
- Frequency range
- 2 400–2 450 MHz SANT-A · datasheet p.2 2 200–2 300 MHz SANT-C | 2 400–2 450 MHz
- Beamwidth (-3 dB)
- 60 ° datasheet p.1 60 °
- Envelope (L×W×H)
- 1U form factor datasheet p.2
- Polarization
- LHCP datasheet p.1 circular Left or right hand | RHCP
- Antenna type
- patch datasheet p.1
- Operating temperature
- -40–85 °C datasheet p.2
- Design lifetime
- 2 years >, LEO · datasheet p.2 2 years min · in LEO
- RF connector
- SMA female · datasheet p.2
- Connector
- SMA female datasheet p.2
- Flight heritage
- UKube-1 mission datasheet p.1
- Satellite class
- CubeSat datasheet p.1
- Fits satellite size
- 1U Dimensions: 1U form factor · datasheet p.2 3U mounted on the nadir facing side of a 3U CubeSat
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Frequency (SANTC)
- 2.2-2.3 GHz
- Frequency (SANT)
- 2.4-2.45 GHz
- Beamwidth
- 60 degrees
- Gain
- 7 dBi
- S11
- <-15 dB
- Connector
- SMA female
- Mass
- <50 g
- Operating temperature
- -40 to +85 C
- Design life
- >2 years in LEO
About
The PULSAR-SANT is an S-band antenna developed by AAC SpaceQuest, specifically designed for nanosatellites. It features a polarized S-band antenna with a focus on high performance and ease of system integration. Its compact size, low profile, and rugged construction make it a suitable addition to various satellite systems. The antenna’s high directionality is a key characteristic. The PULSAR-SANT is also offered as part of communication bundles, such as with the Pulsar-HSTX Transmitter and Pulsar-STX Transmitter, catering to CubeSat and SmallSat missions requiring quick communication solutions.
