NANOadcs
SkyLabs d.o.o.
High performance GNC platform for ADCS with built-in fault-tolerant OBC, GNSS, magnetometer and gyroscope.
Key figurescomparable across the catalogue
- TRL
- 6
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Standard
- ISO 19683, IPC Class 3+
- TRL
- 6
- Mait
- In-house
- Built-in
- NANOhpm interface
- Interface
- Redundant CAN for TM/TC
- Integrated on-board sensors
- GNSS receiver, magnetometer, gyro
- Configurable lcl protected power channels
- 3.3 V, 5 V, 12 V, or 18 V
- Sensors and actuators interfaces
- 5x RS422, 1x CAN, 4x UARTs, I2C, 12x Analog TIA&NTC, 3x Current ctrl. Full-bridge PWMs, 1PPS I/O
- Wide input power range
- 5 V - 28 V
About

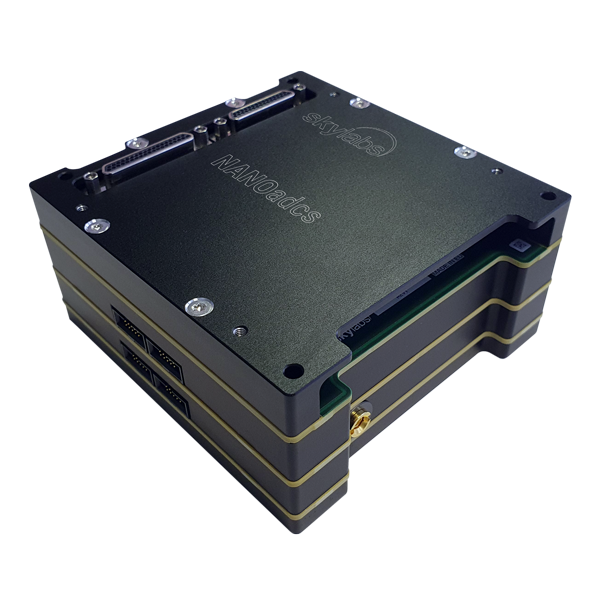

NANOadcs, developed and manufactured by SkyLabs, is the electronics system for the ADCS, consisting of a built-in Fault Tolerant RISC-V 32-bit OBC which runs GNC algorithms based on collected sensor data, and commands or drives actuators to achieve accurate attitude estimation and high precision pointing accuracy and stability. NANOadcs integrates a multi-constellation GNSS receiver, a highly sensitive on-board magnetometer, and a gyroscope. This complete system, including the GNC suite, sensors and actuators, is a fully European solution co-developed between SkyLabs and Indra Deimos, enhancing security, resilience, and innovation, positioning Europe as a leader in small satellite technology. Qualified to ISO 19683 and IPC Class 3+, in-house MAIT, TRL 6.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
