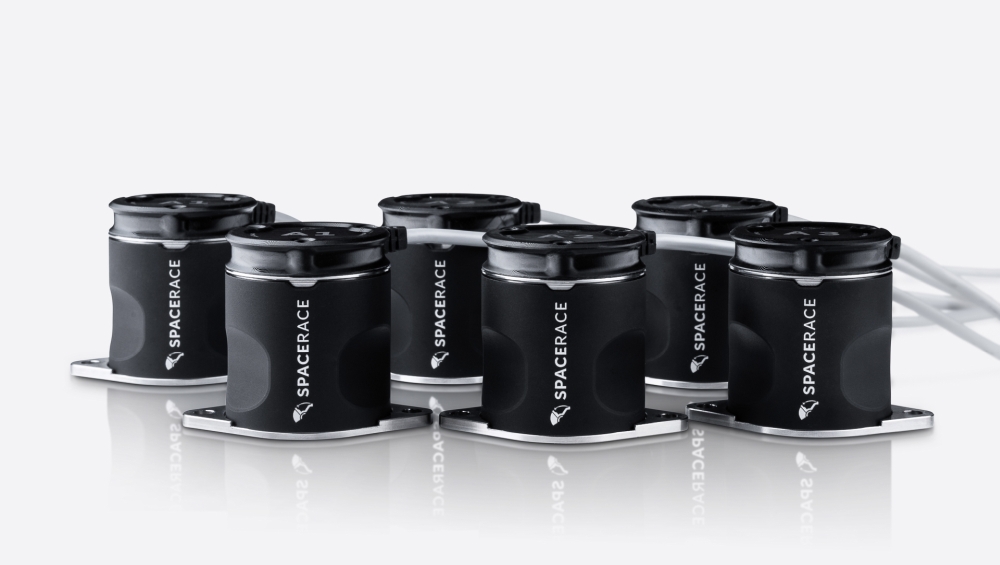

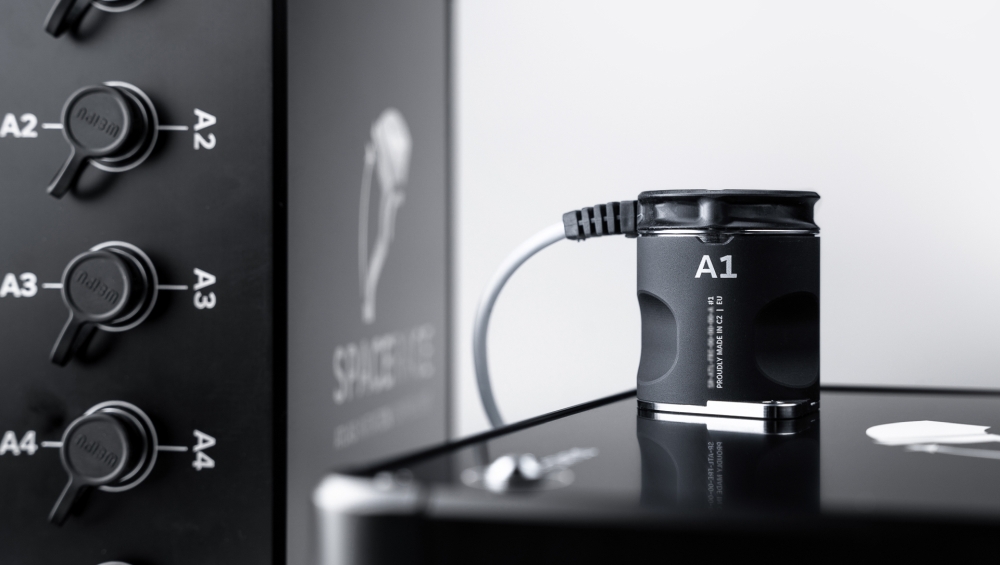

ATLAS Hold Down and Release Actuator
SPACERACE s.r.o.
ATLAS is a rapidly resettable non-explosive release actuator designed for ground testing of space mechanisms, offering efficiency, ergonomics, and reliability.
Typed specifications8 values
Discloses 4 of 10 fields engineers filter by in this category (category median 2).
- Mass
- 270 g without harness and connector · datasheet p.1
- Preload / holding force
- 22 kN Max. release preload · datasheet p.1
- Release time
- 50 ms max · @ 7A with ATLAS control electronics (ICU) · datasheet p.1 50 ms max · 7A with ATLAS control electronics (ICU)
- Separation type
- other ground test release actuator; envelopes commercially availabl… · datasheet p.1
- Release command type
- current pulse PC controlled current pulse (multiple actuators) · datasheet p.1
- Release command (as printed)
- PC controlled current pulse (multiple actuators) with ATLAS control electronics (ICU) · datasheet p.1
- Release current
- 7 A release time < 50 ms @ 7A with ATLAS control electronics (ICU) · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Mechanical interface
- User customizable (to match NEA, Glenair, Eaton, Arquimea)
- Release bolt thread
- User customizable up to M8
- Max. release preload
- 22 kN
- Design limit load
- 33 kN
- Mass
- 270 g (without harness and connector)
- Actuation
- PC controlled current pulse (multiple actuators)
- Release time
- < 50 ms @ 7 A with ATLAS control electronics (ICU)
- Reset
- Release Initiation Unit replacement in minutes with supplied tool
- Life
- 50 releases per ECSS-E-ST-33-01C (>200 tested)
- Operating temperature
- Laboratory conditions
About

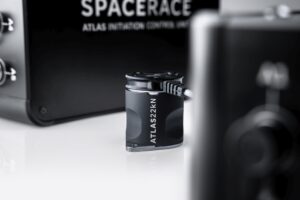

ATLAS is a rapidly resettable non-explosive release actuator developed by SPACERACE. It is designed to provide a cost-effective and efficient solution for ground testing of space mechanisms, offering a substitution for traditional single-use or high-cost resettable release actuators. The device can be reset within 30 seconds using supplied tooling, making it highly efficient for repeated test deployments. It is engineered for efficiency, ergonomics, and reliability, aiming to streamline test operations and reduce release time dispersion between multiple units. The development of ATLAS has been supported by ESA BIC and is planned for commercial launch in 2025. The product is intended to accelerate space markets through a portfolio of smart components, enabling customers to test their mechanisms at a lower cost and higher rate. The company has conducted prototype test campaigns with over 100 full preload releases using the same hardware, demonstrating its durability and resettability. ATLAS is being qualified for use with space hardware according to European space standards ECSS.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
