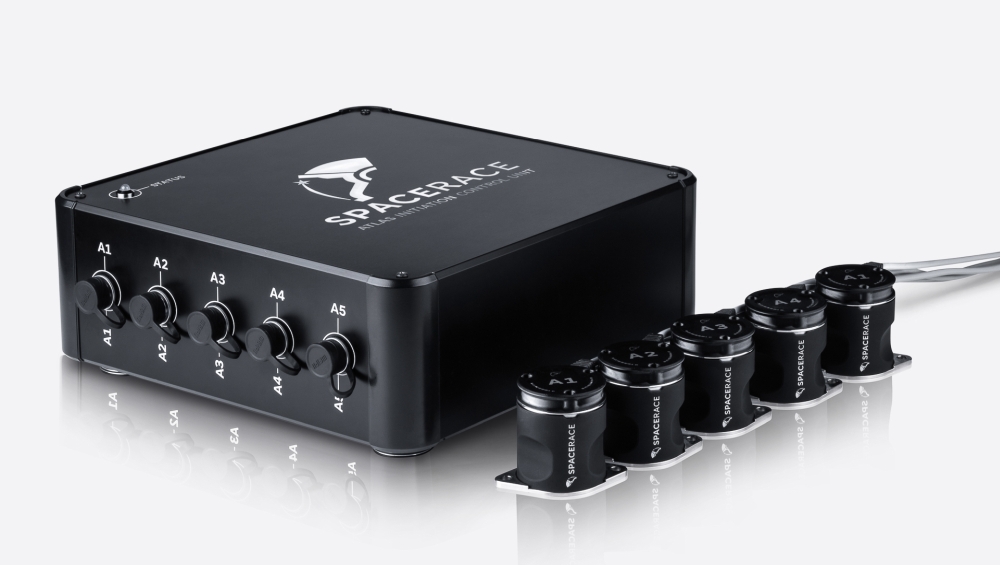

ATLAS ICU (Initiation Control Unit)
SPACERACE s.r.o.
PC-controlled current-pulse generator and control electronics for synchronized initiation of release actuators in ground testing.
Typed specifications39 values
Discloses 6 of 10 fields engineers filter by in this category (category median 1).
- Mass
- 2.9 kg without cables · datasheet p.1
- Envelope (L×W×H)
- 250 x 270 x 100 mm datasheet p.1
- Supply voltage
- 12 V power source 50 A | 12 V | 600 W · datasheet p.1 230 V power supply 230 VAC
- Power consumption
- 600 W power source 50 A | 12 V | 600 W · datasheet p.1
- Data interface
- USB datasheet p.1 USB USB, connected to Windows PC
- Operating temperature
- 0–40 °C datasheet p.1
- Release command type
- current pulse synchronized activation of up to 5 actuators via current puls… · datasheet p.1
- Command pulse duration
- 150 ms pulse length 0.15 s | 4 pwr lines · datasheet p.1 250 ms pulse length 0.25 s | 6 pwr lines | 500 ms pulse length 0.5 s | 8 pwr lines | 1 000 ms pulse length 1 s | 10 pwr lines | 1 000 ms pulse length at ≤ 5 A | 10 pwr lines +4
- Release channels
- 5 up to 5 actuators (10 power lines) · datasheet p.1 5 max
- Release current
- 0.125 A Arming current · datasheet p.1 8.5 A pulse length 0.15 s | 4 pwr lines | 6.5 A pulse length 0.25 s | 6 pwr lines | 5.5 A pulse length 0.5 s | 8 pwr lines | 5 A pulse length 1 s | 10 pwr lines +13
- Unit supply current
- 50 A power source 50 A | 12 V | 600 W · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Actuation steps
- Activation, arming, fire
- Power source
- 50 A / 12 V / 600 W
- Number of actuators
- Up to 5 actuators (10 power lines)
- Arming current
- 0.125 A
- Status monitoring
- LED and software
- Pulse accuracy
- < 10 ms
- Cleanliness
- Closed design, cleanroom compatible
- Actuation safety
- Triple security, activation from internal memory
- Data interface
- USB, connected to Windows PC
- Operating temperature
- 0 C to 40 C
- Dimensions
- 250 x 270 x 100 mm
- Mass
- 2.9 kg without cables
- Power supply
- 230 VAC
About
The ATLAS ICU is a control electronics unit for easy, synchronized initiation of hold-down and release actuators during ground test campaigns of space mechanisms. Configuration of release scenarios takes seconds via intuitive PC software, ensuring synchronized activation of up to 5 actuators (10 independent power lines) via current pulse with millisecond precision. Compatible with any fuse-based non-explosive release actuator, fully enclosed and cleanroom-friendly, with safety features including activation from internal memory and a tripled safety barrier. The package includes the unit, a control laptop, and a dedicated transport box.
