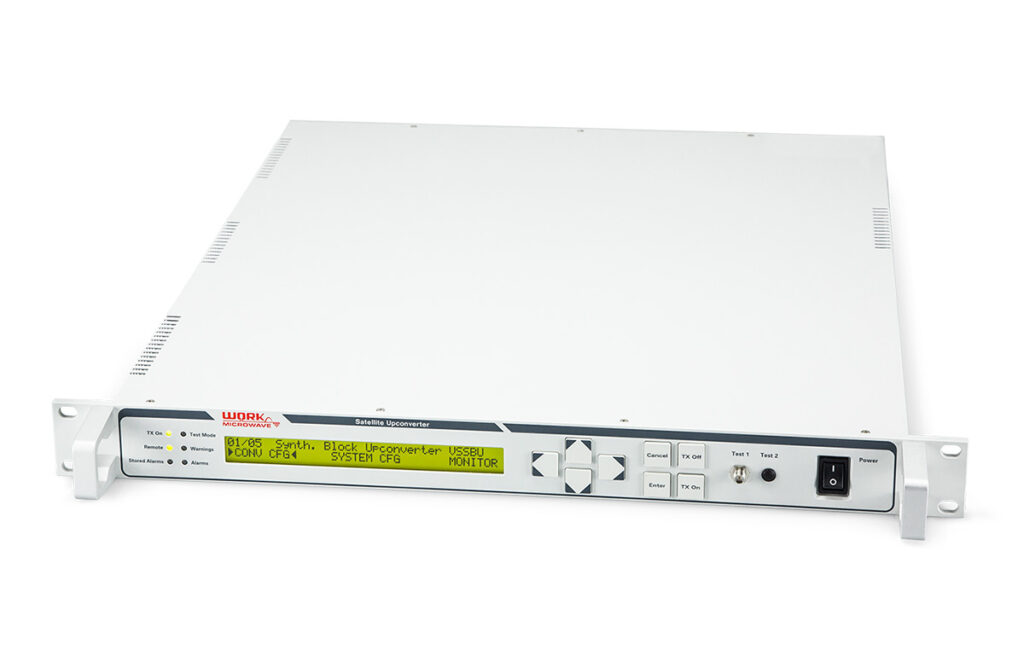

Synthesized Block Upconverter VSSBU
WORK Microwave
Frequency Upconverters for S- to Q-band with L-Band input, available in indoor and outdoor versions for standard and customized applications.
Technical specifications
- Input Band
- L-Band
- Output Bands
- S, C, X, Ku, K(DBS), Ka, Q-Band
- Phase Noise
- < -50 dBc/Hz @ 10 Hz
- OCXO Long-term stability
- < 10^-7 / year
- Optional adjustable gain slope equalizer
- +8 dB / GHz max.
About
The Synthesized Block Upconverter (VSSBU) from WORK Microwave offers frequency upconversion capabilities across a wide range of bands, including S, C, X, Ku, K(DBS), Ka, and Q-Band, with an L-Band input. These upconverters are designed for both indoor and outdoor installations and can be adapted for standard and customized applications. Key features include very low phase noise, specified at less than -50 dBc/Hz at 10 Hz, and a highly stable OCXO with long-term stability better than 10^-7 per year. The VSSBU also offers an optional adjustable gain slope equalizer, providing up to +8 dB per GHz, and digital gain compensation. WORK Microwave also provides multi-channel or multi-band converter configurations to meet diverse operational requirements.
