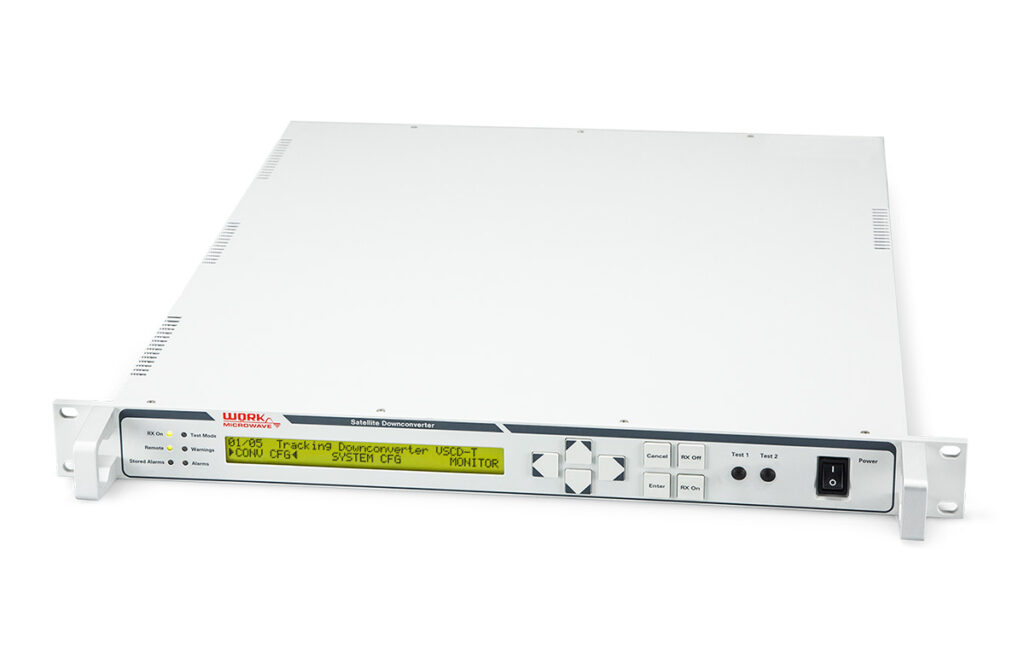

Tracking Downconverter
WORK Microwave
Dual or Triple Channel Frequency Tracking Downconverters with shared oscillator for L- to Q-band, suitable for indoor and outdoor applications, perfect for systems requiring accurate phase relationships.
Technical specifications
- Bands
- S, C, X, Ku, K(DBS), Ka, Q-Band
- IF
- 70 MHz, 140 MHz, 230 MHz or 720 MHz
- Channels
- Dual or Triple
- Phase Tracking between channels
- < 10 deg
- Phase Noise
- < -50 dBc/Hz @ 10 Hz
- OCXO Long-term stability
- < 10 -7 / year
About
The Tracking Downconverter from WORK Microwave offers dual or triple channel frequency tracking capabilities with a shared oscillator, covering L- to Q-band frequencies. These converters are designed for both indoor and outdoor use and can be adapted for standard and customized applications. They are particularly well-suited for systems where an accurate phase relationship between two converter channels is critical. Key features include operation across S, C, X, Ku, K(DBS), Ka, and Q-Bands, with IF options of 70 MHz, 140 MHz, 230 MHz, or 720 MHz. The shared oscillator design ensures excellent phase tracking between channels, typically less than 10 degrees, and very low phase noise, below -50 dBc/Hz at 10 Hz. The unit also boasts a highly stable OCXO with long-term stability better than 10^-7 per year.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
