VHF/UHF Antenna for 6U+
Innovative Space Logistics
The ISISPACE VHF/UHF Antenna for 6U+ is a customizable antenna solution for CubeSats (6U and larger) and Microsats, offering various configurations and covering a wide range of VHF to UHF frequency bands.
Typed specifications10 values
Discloses 3 of 10 fields engineers filter by in this category (category median 3).
- Peak gain
- 0 dBi product page 0 dBi
- Mass
- 90–115 g product page
- Frequency range
- 145 MHz product page
- Envelope (L×W×H)
- 98×98 mm product page
- Power consumption
- 0.08 W product page 2.3 W max | 2 W
- Operating temperature
- -20 °C product page -5 °C
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Mass
- 90-115 g
- Envelope stowed (L x W)
- 98×98 mm
- Power consumption Nominal
- 80 mW
- Power consumption During deployment
- < 2.3 W
- Operating temperature
- -20°C to +80°C
- Deployment Temperature Range
- -5°C to +80°C
- Frequency Range
- 145 MHz – 868 MHz
- Antenna Main Beam Gain UHF
- 0 dBi
- Antenna Main Beam Gain VHF
- 0 dBi
- Max RF Power
- 2 W
- Bandwidth UHF
- > 50 MHz
- Bandwidth VHF
- > 10 MHz
- Antenna Element Deployment Duration
- < 5 s
About

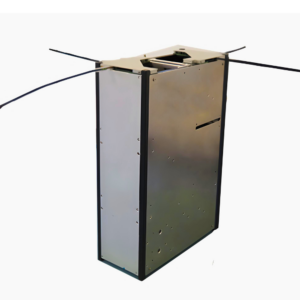

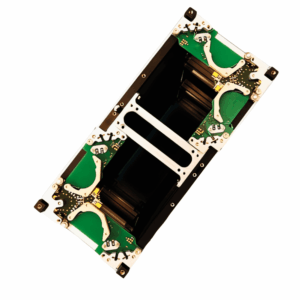

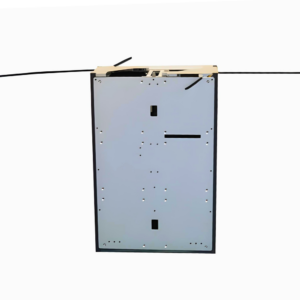

The ISISPACE VHF/UHF Antenna for 6U+ is a highly reliable and customizable antenna solution designed for CubeSat models from 6U and up, as well as Microsats. It offers versatile configurations including monopoles, dipoles, or a 1x turnstile, enabling it to cover a wide range of VHF to UHF frequency bands to ensure mission success. This antenna is a modular evolution of the VHF/UHF Antenna for 1U-3U. It comprises two corner PCBs, an RF phasing circuit board (RFCB), and various harness options that can be tailored to specific mission requirements. The antenna is deployed under user command and integrates seamlessly into 6U+ CubeSats and Microsats, providing a solution for unique mission needs.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
