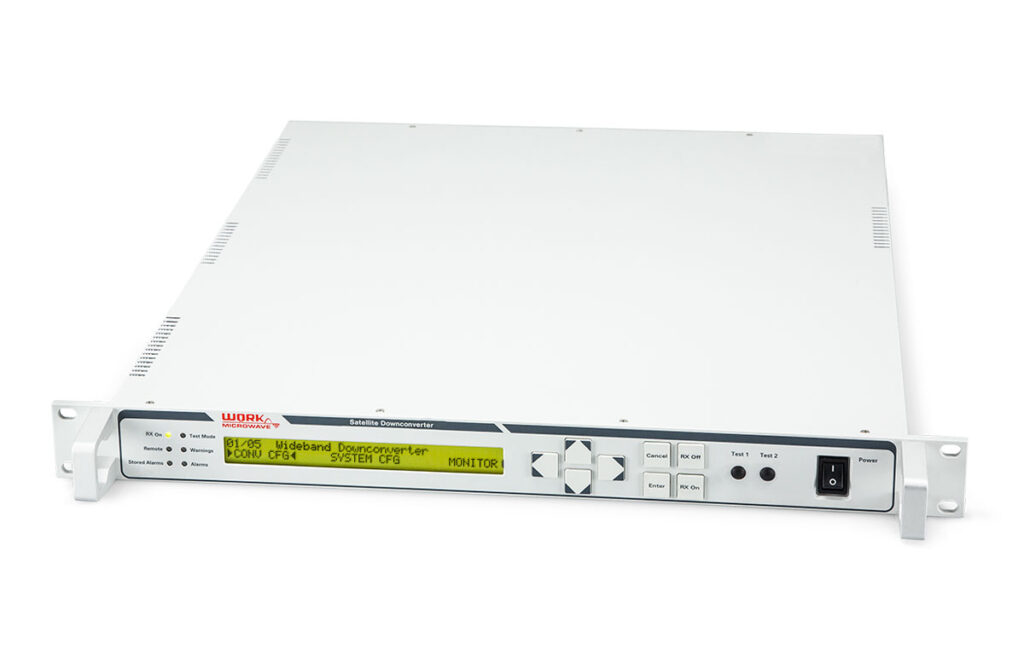

Wideband Downconverter
WORK Microwave
Wideband frequency downconverters covering the full spectrum up to 40 GHz, available in indoor and outdoor configurations for demanding applications.
Technical specifications
- Input frequency range
- up to 40 GHz
- Output frequency
- 70/140/230/720 MHz or L-band
- Phase noise
- < -50 dBc/Hz @ 10 Hz
- OCXO Long-term stability
- < 10 -7 / year
- RF-Input Frequency
- 1.00 … 40.00 GHz
- IF-Output Frequency
- 1200 ±250 MHz
- Phase noise (10 Hz)
- -50 dBc/Hz
- Phase noise (100 Hz)
- -70 dBc/Hz
- Phase noise (1 kHz)
- -85 dBc/Hz
- Phase noise (10 kHz)
- -90 dBc/Hz
- Phase noise (100 kHz)
- -100 dBc/Hz
- Phase noise (1 MHz)
- -105 dBc/Hz
- Phase noise (3 MHz)
- -115 dBc/Hz
- Frequency Resolution
- 100 Hz
- RF-Input Return loss
- > 10 dB
- Maximum Aggregate Input Level
- 10 dBm
- LO leakage
- < -60 dBm
- RF-Input Connector
- K (female)
- IF-Output Return loss
- > 18 dB
- IF-Output 1 dB compression point
- > 10 dBm
About
WORK Microwave offers Wideband Downconverters designed for demanding applications, covering a comprehensive input frequency range up to 40 GHz. These versatile units provide various output frequencies including 70 MHz, 140 MHz, 230 MHz, 720 MHz, or L-band. Key features include very low phase noise, specified at less than -50 dBc/Hz at 10 Hz, ensuring high signal integrity. The downconverters are equipped with a highly stable OCXO, offering long-term stability better than 10^-7 per year. They are designed with no frequency inversion and incorporate digital gain compensation for optimal performance. These downconverters are suitable for governmental and research and development applications, supporting various frequency bands such as S-Band, C-Band, X-Band, Ku-Band, K-Band, DBS-Band, Ka-Band, Q-Band, and V-Band.
