1.5P VibePOD
Wyrm Engineering
The 1.5P VibePOD is a test fixture designed for random vibration testing of 1.5P Pocketqubes, qualified to NASA GEVS7000 standards.
Key figurescomparable across the catalogue
- Mass
- 1.1 kg
- Largest dimension
- 230 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Dimensions w/o plate
- 98 mm x 96 mm x 117 mm
- Dimension of adapter plate
- 230 mm x 230 mm x 14 mm
- Mass (Dry)
- 1.1 kg
- First mission
- 2020 EASAT-2 1.5P
- Qualification
- NASA GEVS7000 in 2020
- Dimensions
- 98.00 x 97.00 x 83.00 mm
About

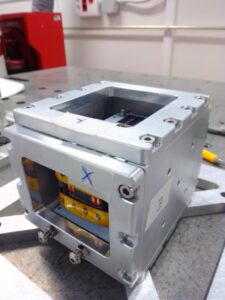

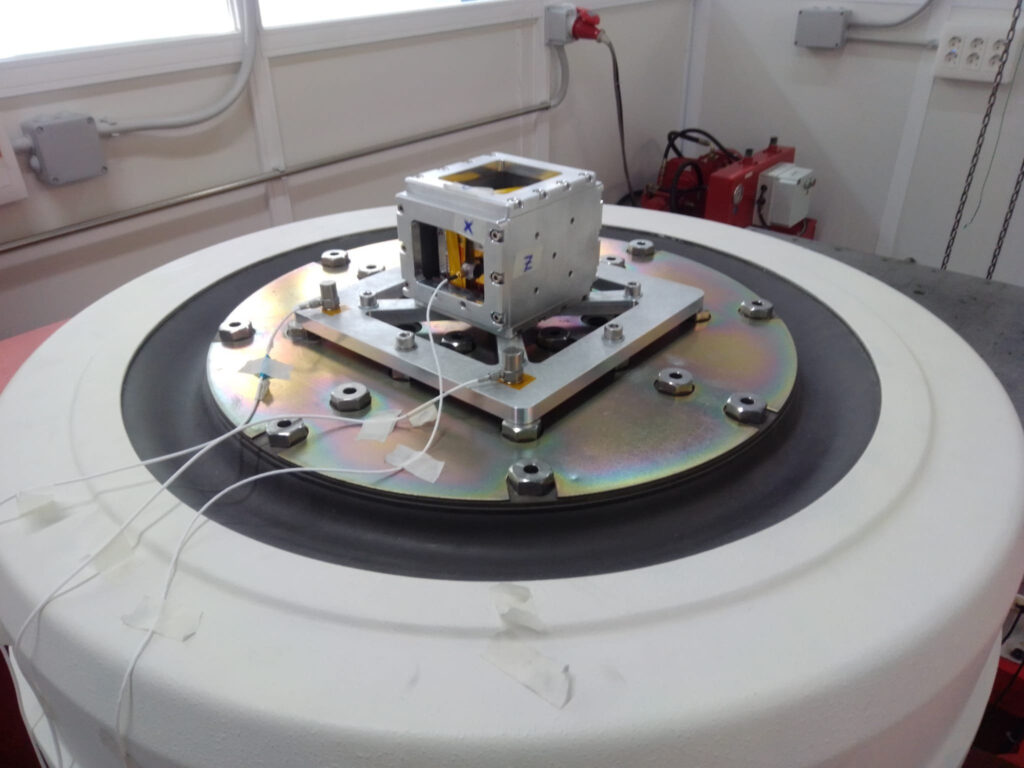

The 1.5P VibePOD is a specialized test fixture used for conducting random vibration testing on 1.5P Pocketqubes. It has been qualified to NASA GEVS7000 standards in 2020, demonstrating its suitability for space-related testing. This device played a crucial role in enabling AMSAT’s EASAT-2 1.5P and Hades satellites to successfully pass their random vibration tests. The VibePOD’s design includes an adapter plate that can be customized to interface with various vibrating tables, offering flexibility for different testing setups. Its first mission involvement was with the 2020 EASAT-2 1.5P satellite. The product page also mentions an ICD (Interface Control Document) for the 1.5P VibePOD, indicating detailed technical specifications are available upon request.
Documentation
- vibepod-1p-icd-document-2.pdf PDF source: wyrmengineering.com ↗
- vibepod-1p-icd-document-2.pdf PDF source: wyrmengineeringdotcom.files.wordpress.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
