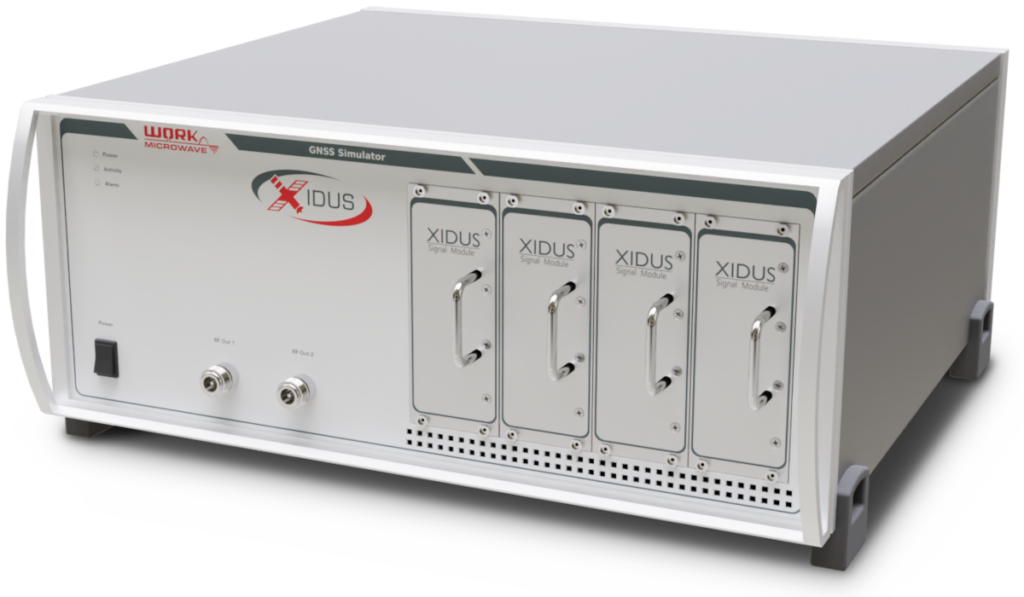

Xidus-424 GNSS Simulator
WORK Microwave
The Xidus-424 is a multi-constellation, multi-frequency GNSS simulator capable of handling a wide range of test scenarios for receiver manufacturing and production testing.
Technical specifications
- LOS channels
- Up to 128
- Multipath channels
- Up to 512
- RF outputs
- 2
- Multi-GNSS frequencies
- max. 16
- Dimension
- 447.5 x 177.8 x 400.5 mm³
About
The Xidus-424 GNSS Simulator from WORK Microwave is a robust solution for comprehensive GNSS testing. It offers extensive simulation capabilities, supporting up to 128 LOS channels and 512 multipath channels across multiple GNSS frequencies (maximum 16). The simulator features two RF outputs and includes single channel simulation capability. Its operation is facilitated by Xidus Studio, a powerful configuration software. The Xidus-424 also incorporates the new Galileo ICD version 2.0, providing advanced features such as Secondary Synchronization Pattern (SSP) for correlating local replicas of encoded pattern configurations, Reduced Clock and Ephemeris for initial position fixes, and Reed-Solomon Outer Forward Error Correction for robust decoding of I/NAV Clock and Ephemeris Data (CED).
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
