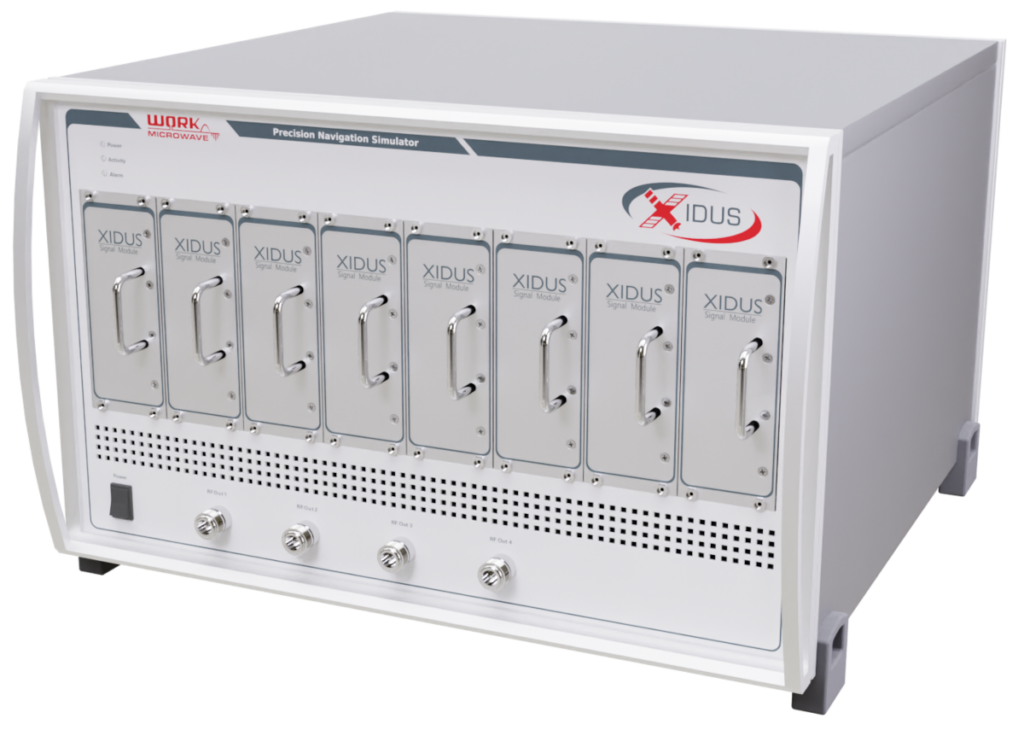

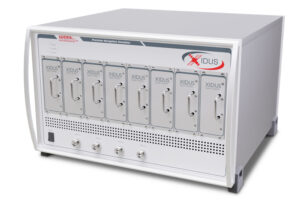

Xidus-648 GNSS Simulator
WORK Microwave
The Xidus-648 GNSS Simulator is a high-end GNSS Simulator supporting all current and future GNSS signals with high signal purity even at 1kHz update rate.
Technical specifications
- Product Line
- Xidus Navigation Simulators
- LOS channels
- Up to 256
- Multipath channels
- 1024
- Multi-GNSS frequencies
- max. 32
- Dimension
- 447.5 x 266.7 x 500 mm³
About
The Xidus-648 GNSS Simulator from WORK Microwave provides perfect test solutions for integrated system tests. It supports up to 256 LOS channels and 1024 multipath channels, offering multi-GNSS frequencies (max. 32). The simulator includes Xidus Studio as powerful configuration software and features new Galileo ICD version 2.0 capabilities. These include a secondary synchronization pattern (SSP) for correlating a local replica of encoded pattern configurations, reduced Clock and Ephemeris for computing an initial position fix, and Reed-Solomon Outer Forward Error Correction for robust decoding of I/NAV Clock and Ephemeris Data (CED).
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
