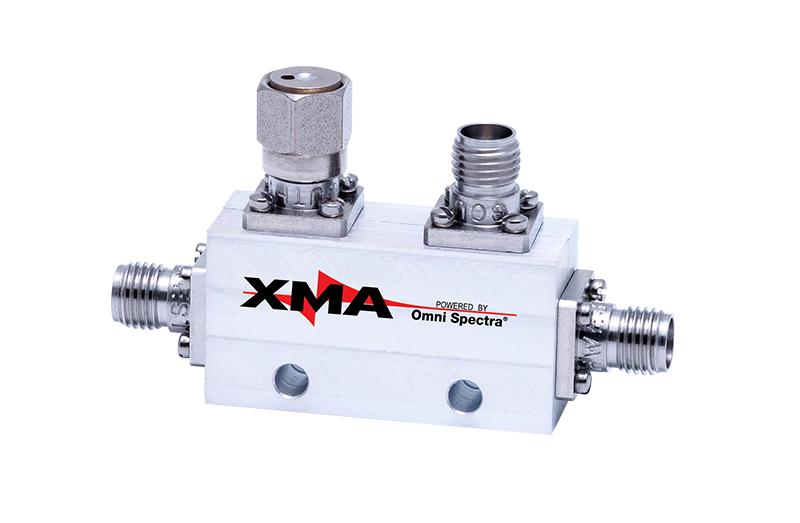

OS2020-6604-06
XMA Corporation
A 6dB directional coupler with SMA female connectors covering 1-2GHz at up to 50W average power.
Key figurescomparable across the catalogue
- Power
- 50 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Item #
- OS2020-6604-06
- Description
- Coupler, SMA-f, 1-2 GHz, 50 W, 6 dB
- Add-ons
- DF
- Materials
- SS
- Types
- Directional Coupler
- Connector
- SMA
- Gender 1
- f
- Average power (Watts)
- 50
- Max frequency
- 2 GHz
- Atten./ coupling options
- 6
- Cryogenic
- no
About
The OS2020-6604-06 is a directional coupler from XMA Corporation, part of the OS2020-66XX coupler product family. It operates over a 1-2GHz frequency range with a coupling value of 6dB and is rated for 50W average power handling. The unit uses SMA female connectors (Gender 1: f) and is constructed with stainless steel (SS) materials. It is available with a DF add-on option. The device is not rated for cryogenic operation. As a directional coupler, it is used to sample a portion of RF signal power for monitoring, test, or feedback purposes in RF and microwave systems, applicable to communications and signal test setups. The product is stocked through third-party distributors including RFMW Ltd., East Coast Microwave Sales and Distribution, LLC, and Microwave Components LLC.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
