GaN-on-Diamond CubeSat satellite radio with up to 700 Mbps downlink in a 10 x 10 x 3 cm form factor.

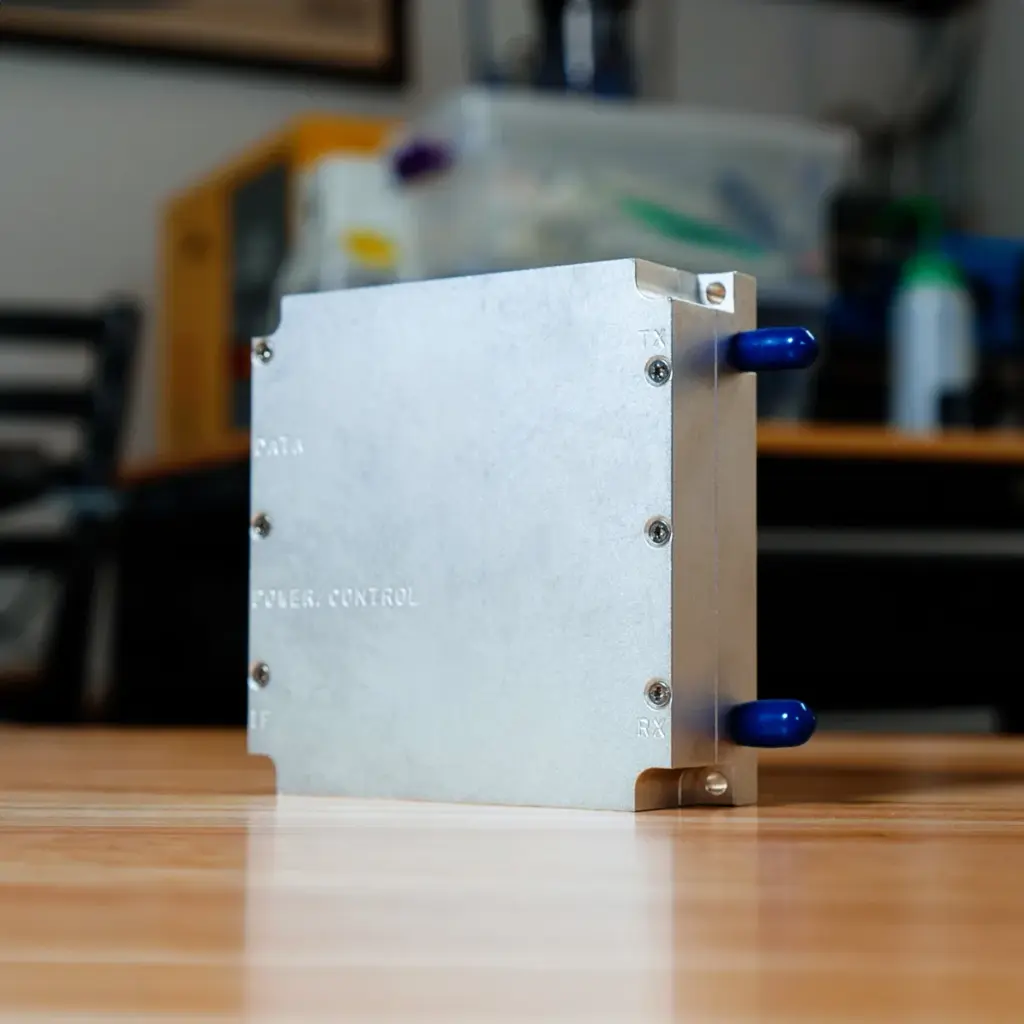

Akash CubeSat Radio
GaN-on-Diamond CubeSat satellite radio with up to 700 Mbps downlink in a 10 x 10 x 3 cm form factor.
Description
The Akash CubeSat Radio is a high-throughput satellite communication radio leveraging Akash Systems' proprietary Diamond Cooling® technology. It fits the standard 10 × 10 cm CubeSat footprint at just 3 cm tall and consumes under 28 W. The radio supports flexible modulation coding and achieves 700 Mbps downlink (extendable to 1.4 Gbps), representing a 3–5× improvement over competing CubeSat radios of similar size.
Diamond Cooling® enables higher RF power output without the thermal runaway risks faced by GaN-on-SiC alternatives, making the radio well-suited for high-cadence Earth-observation and broadband LEO missions.
Specifications
| Dimensions | 100 x 100 x 30 mm |
|---|---|
| Max Downlink Data Rate | 700 Mbps (extendable to 1.4 Gbps) |
| Max Power Consumption | < 28 W |
| Cooling Technology | Diamond Cooling (GaN-on-Diamond) |
