About Blue Canyon Technologies

Blue Canyon Technologies (BCT), a wholly owned subsidiary of Raytheon, an RTX business, is a leading provider of small satellite buses, systems, and components for commercial, civil, and government space missions. Founded to solve the toughest challenges in space, BCT has amassed over 90 launched satellites and thousands of components delivered, with more than 230 years of combined on-orbit heritage for spacecraft, 350+ years for avionics assemblies, and 3,600+ years for individual components.

BCT's product line spans complete spacecraft buses, attitude determination and control systems, reaction wheels, star trackers, and other high-precision components, supporting missions across VLEO, LEO, GEO, lunar, and interplanetary trajectories. The company is known for low-jitter, arcsecond-class on-orbit pointing systems and high-volume manufacturing that maximizes payload mass and volume while minimizing overall mission costs.

With a total integrated mission solutions approach, BCT supports customers from initial design through build, test, and on-orbit operations. Its reliable, flight-proven, high-performing spacecraft solutions serve university-led science missions as well as national defense constellations.

Company Info

Headquarters Lafayette, Colorado, USA, United States

Founded 2008 (18 years)

Specializations

satellite-platforms adcs-navigation reaction-wheels star-trackers

Website bluecanyontech.com ↗

Email info@bluecanyontech.com

Photos 1

Products

Flight-proven

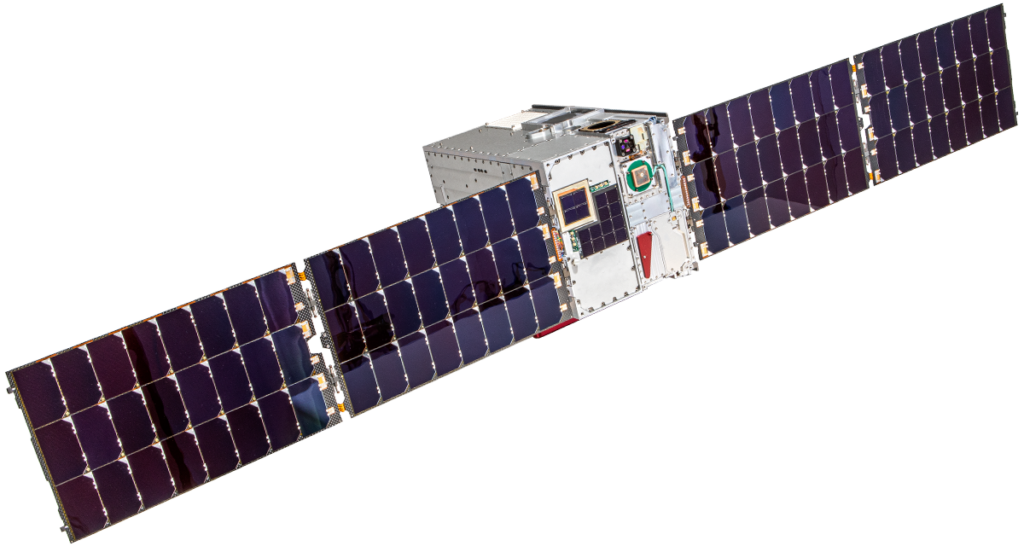

The Blue Canyon Technologies 12U CubeSat is a reliable, high-performing, and flight-proven satellite bus from the XB line, offering a turnkey solution for various space missions.

1 15

Class	12U
Available payload volume	8U (typical)
Pointing accuracy	±0.002° (1-sigma), 3 axes, 2 Trackers
Orbit altitude / orbit lifetime	LEO (> 5 years), GEO (> 2 years), Deep Space (> 2 years)
Real-world missions	Proven Heritage
Units launched	03
Energy storage	6.8 – 20.4 Ah
Solar array power	92 W - 108 W
Pointing stability	1 arc-sec over 1 sec
Agility	> 5 deg/sec
Orbit knowledge	10m, 0.15 m/s (1-sigma)
Data interfaces	UART (3.3 V, 2.5 V LVDS, RS-422, RS-485), SpaceWire, 3.3 V In/Out
LEO uplink	Nominal 100 Kbps
LEO downlink	S-Band 2 Mbps standard
LEO downlink (2)	X-Band up to 10 Mbps

Flight-proven

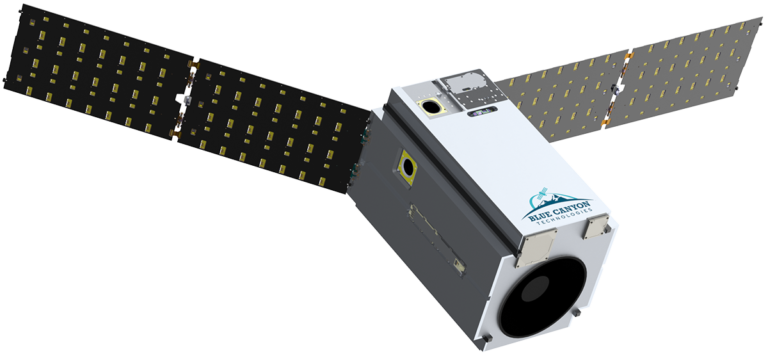

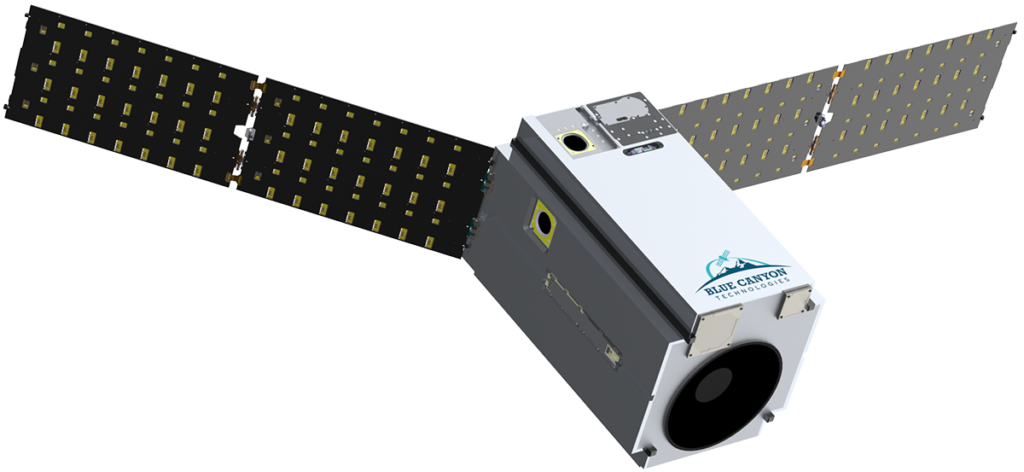

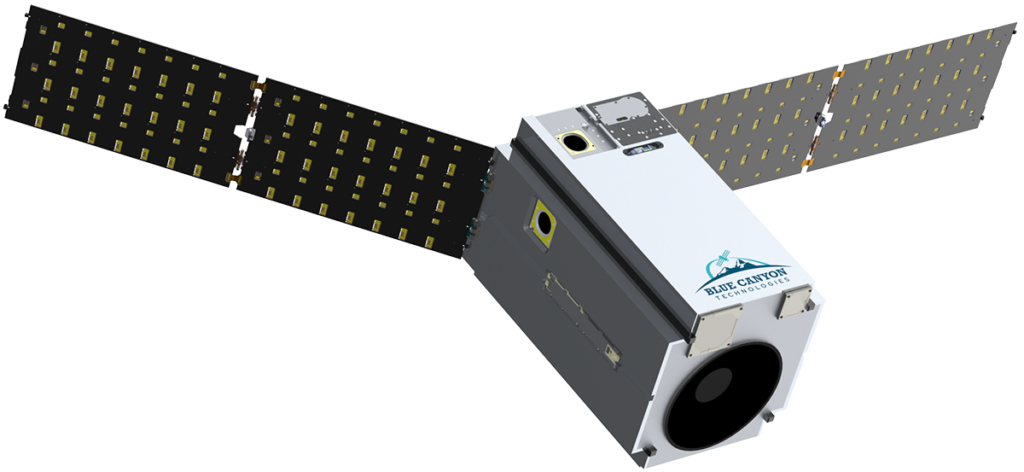

The 16U CubeSat is a reliable, high-performing, and flight-proven satellite bus from Blue Canyon Technologies' XB line, offering a turnkey solution for various space missions.

1 7

Class	16U
Available payload volume	12U (typical)
Pointing accuracy	±0.002° (1-sigma), 3 axes, 2 Trackers
Orbit altitude / orbit lifetime	LEO (> 5 years), GEO (> 2 years), Deep Space (> 2 years)
Real-world missions	Proven Heritage
Units launched	02
Units in-work	02

Flight-proven

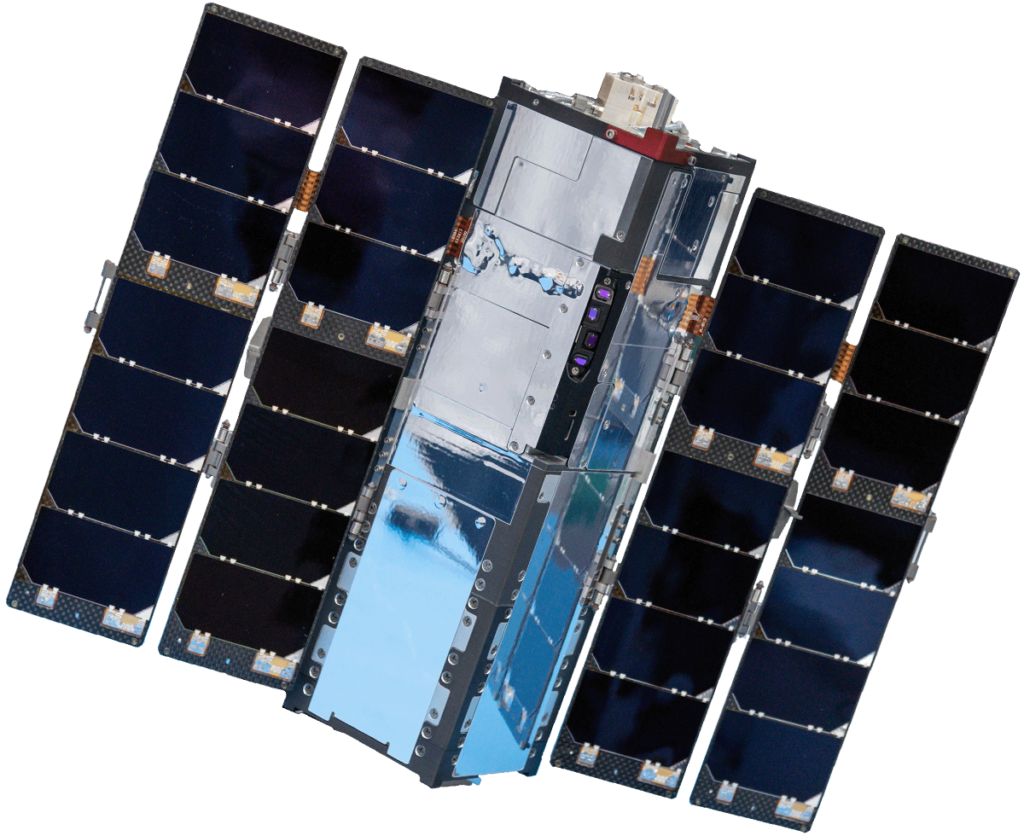

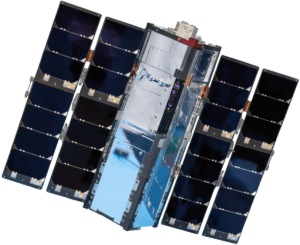

The Blue Canyon Technologies 3U CubeSat is a reliable, high-performing, and flight-proven satellite platform, offering a turnkey solution for various space missions.

2 8

Class	3U
Available payload volume	1.5U (typical)
Pointing accuracy	±0.003° (1-sigma), 2 axes, 1 Tracker
Orbit altitude / orbit lifetime	LEO (> 5 years), GEO (> 2 years), Deep Space (> 2 years)
Units launched	18
Units in-work	02
Units delivered	02
Flight heritage	Proven Heritage

Flight-proven

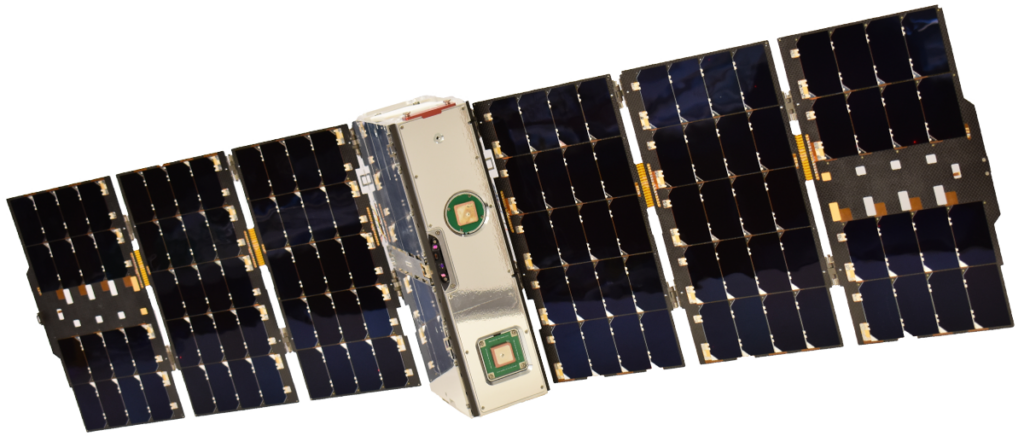

The Blue Canyon Technologies 6U CubeSat, part of the XB line, is a reliable, high-performing, and flight-proven satellite platform offering a turnkey solution for various space missions.

1 8

Class	6U
Available payload volume	4U (typical)
Pointing accuracy	±0.002° (1-sigma), 3 axes, 2 Trackers
Orbit altitude / orbit lifetime	LEO (> 5 years), GEO (> 2 years), Deep Space (> 2 years)
Real-world missions	Proven Heritage
Units launched	46
Units in-work	07
Units delivered	10

Flight-proven

The Blue Canyon Technologies nano star tracker (NST) is a flight-proven, high-performing, and reliable star tracker designed for spacecraft platforms, offering a low SWaP-C solution.

1 7

1p8s	1 string × 8 Li-ion cells in series
2p8s	2 strings × 8 Li-ion cells; ~2× energy of 1P8S
Ip8s	Integrated pack variant
Chemistry	Li-ion
Compatible buses	BCT XB3, XB6, XB12, XB16 (XB1 avionics stack)
Mission life	5-year design life baseline
Applications	LEO, GEO, cislunar, deep space

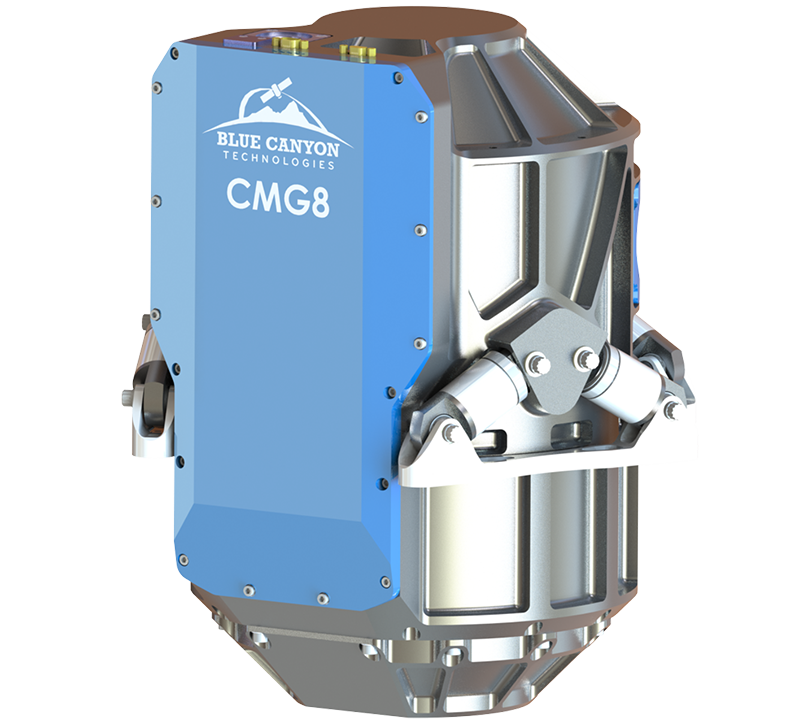

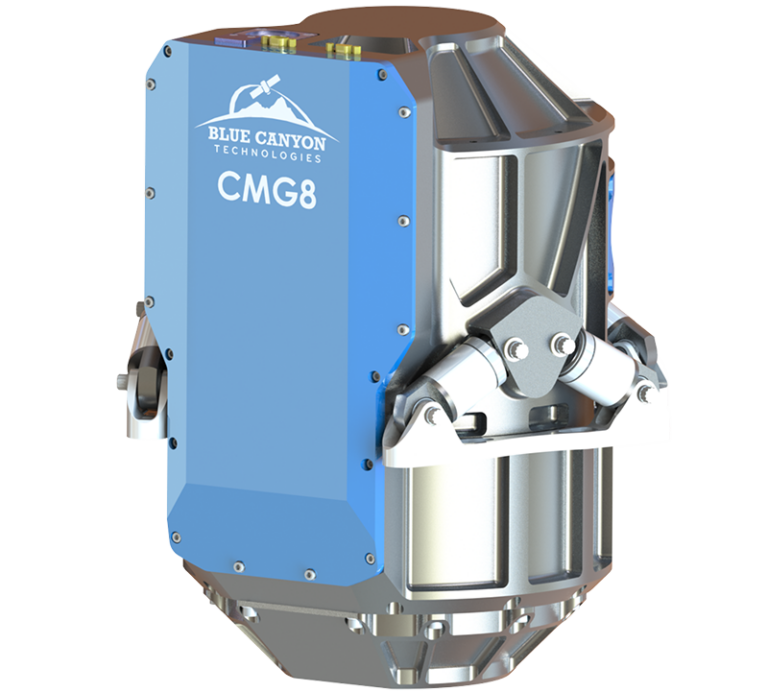

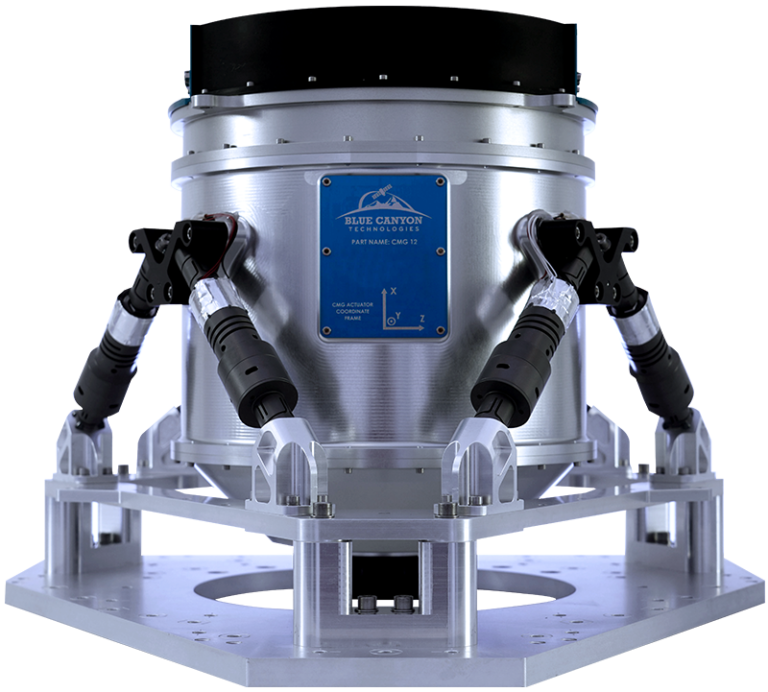

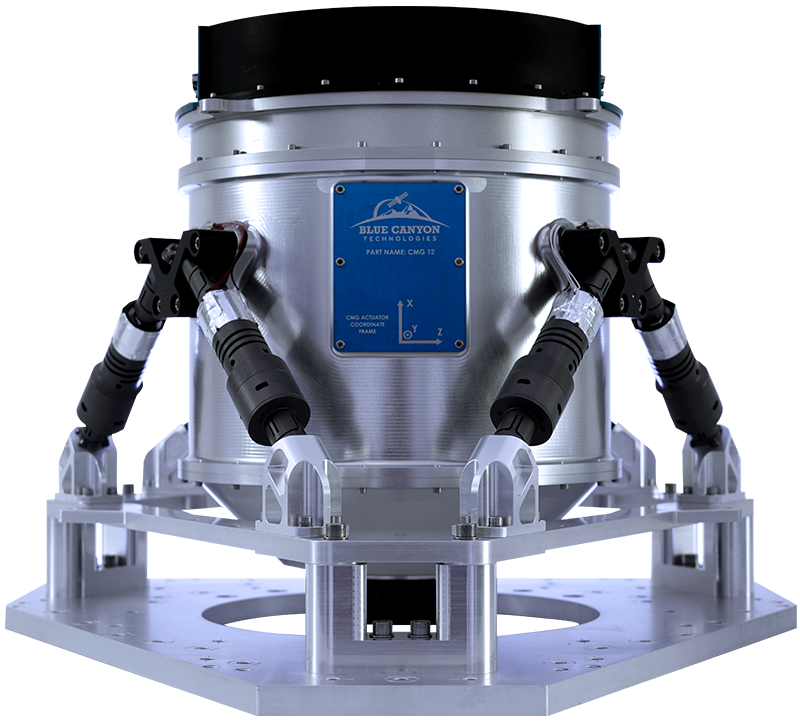

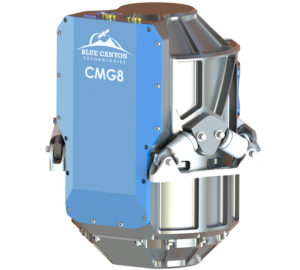

Blue Canyon Technologies' Control Moment Gyroscopes (CMGs) offer significantly higher torque and lower power consumption compared to traditional reaction wheels, providing enhanced agility for spacecraft.

2 7

Cmg-8 momentum	8 Nms
Cmg-8 torque	8 Nm
Cmg-8 mass	< 13 kg
Cmg-12 momentum	12 Nms
Cmg-12 torque	12 Nm
Cmg-12 mass	< 18 kg
Manufactured	13

Blue Canyon Technologies offers Drive Control Electronics as a component for various space applications.

1 5

Dimensions	3.937 x 3.937 x .5 in
Mass	210 g
Supply voltage	10-14 V
Power	<8 W
Interface	31-pin nano

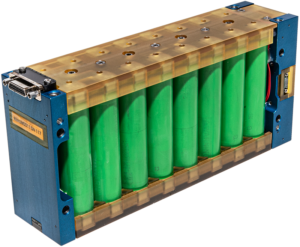

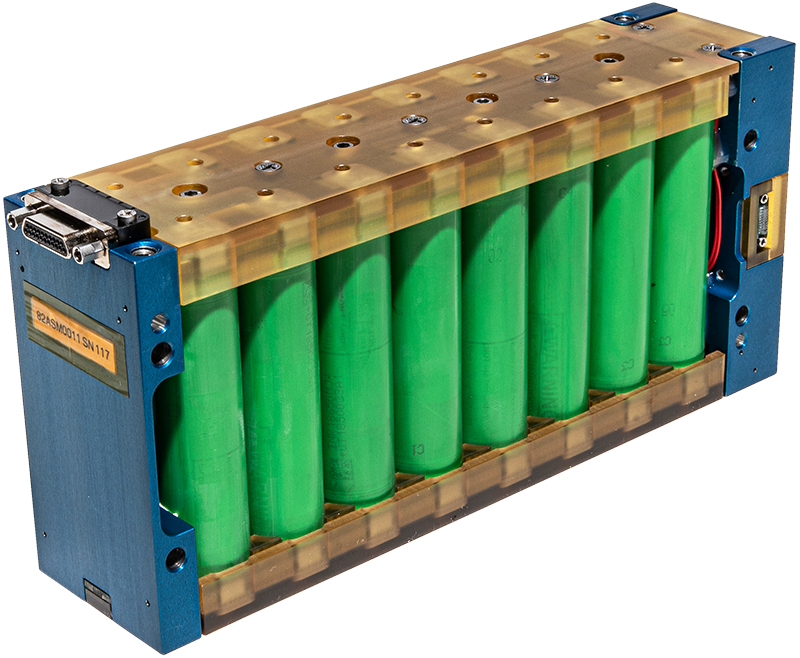

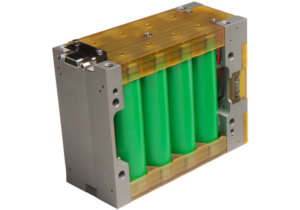

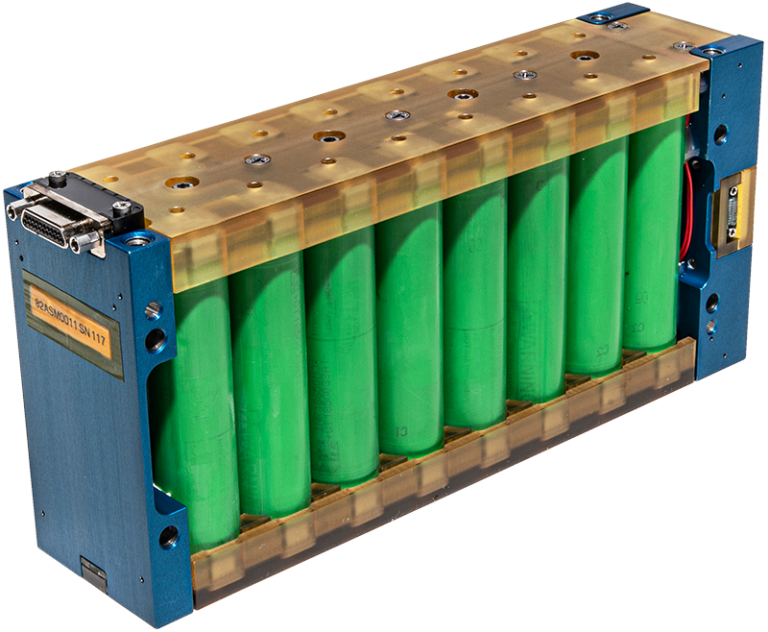

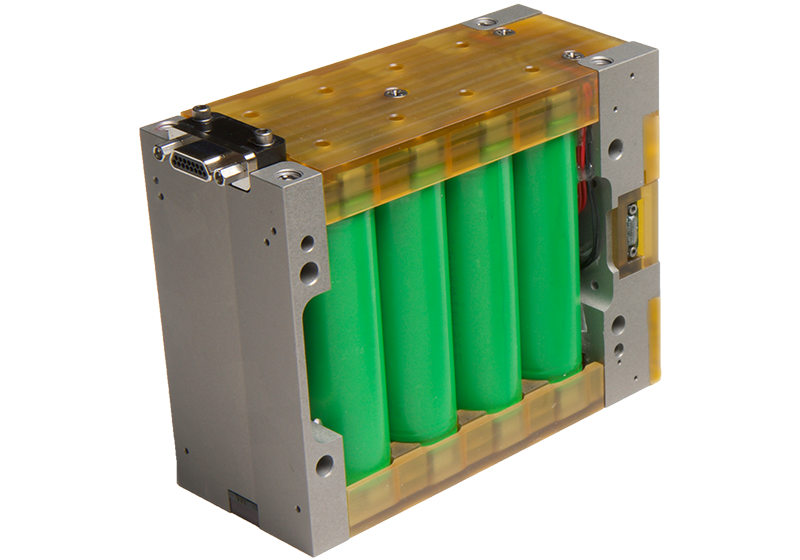

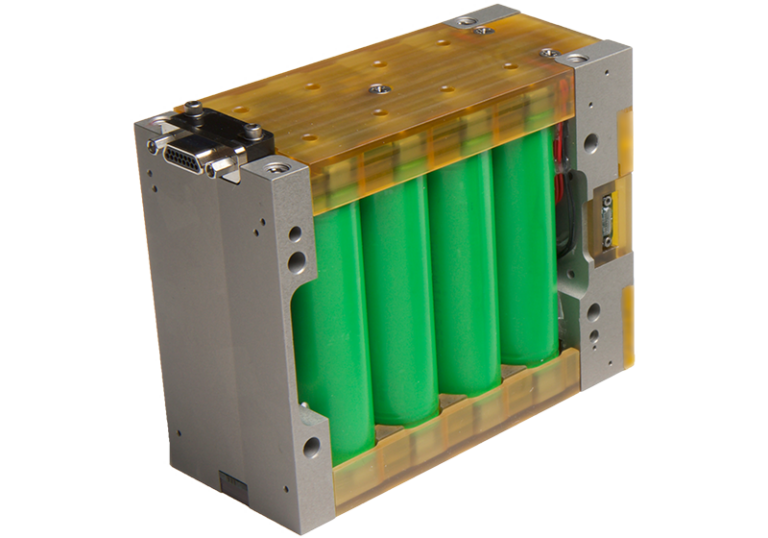

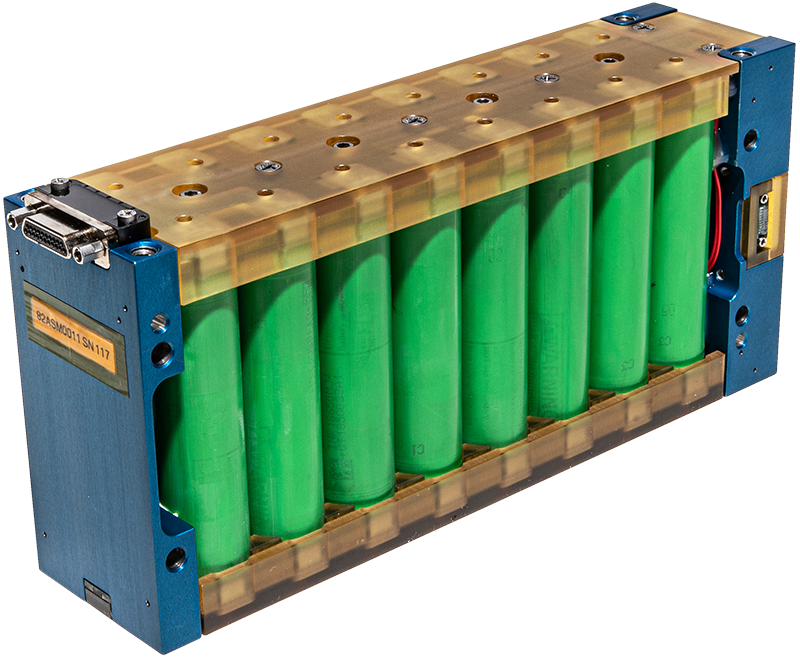

Blue Canyon Technologies offers high-capacity batteries with integrated heaters to optimize operation at low temperatures, available in two configurations: IP8S and 2P8S.

2 8

Ip8s nameplate capacity	3.4 Ah
Ip8s energy	99 Wh
Ip8s mass	<650 g
2p8s nameplate capacity	6.8 Ah
2p8s energy	198 Wh
2p8s mass	<1200 g
Manufactured	595
Launched	140

Flight-proven

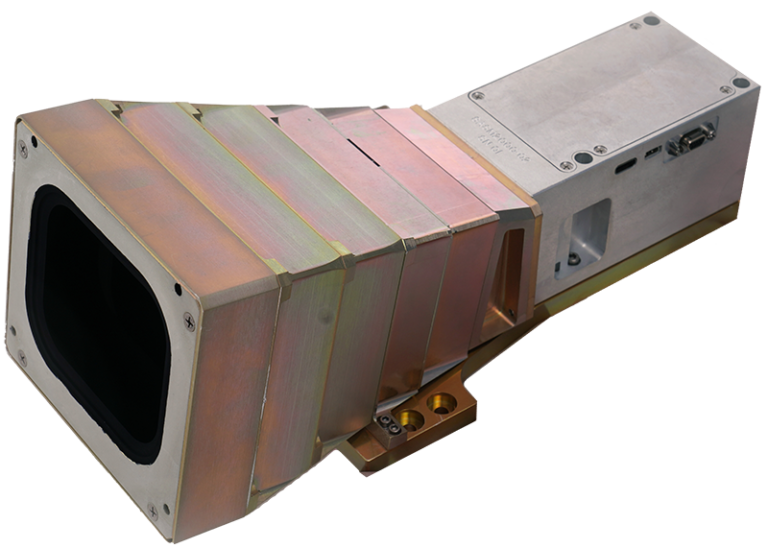

Blue Canyon Technologies' flight-proven nano star tracker is a low SWaP-C, turnkey starlight-in/quaternion-out attitude sensor for standalone missions and constellations.

1 4

Environmental qualification	Beyond GEVS level environments
Interface	Starlight-in, quaternion-out (turnkey)
Tracking sensitivity	Down to 7.5 magnitude
On-board star catalog	More than 20,000 stars

Flight-proven

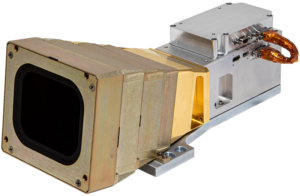

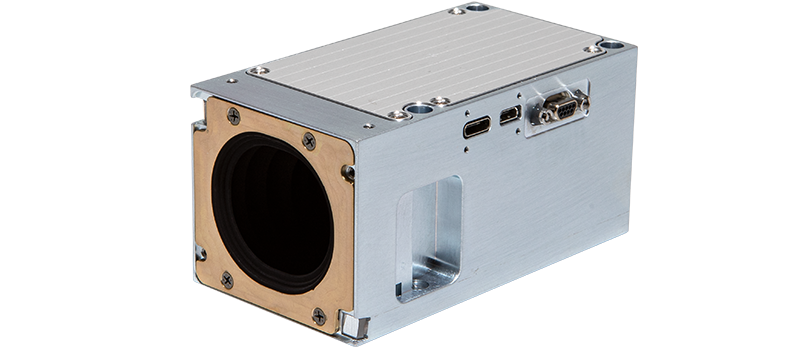

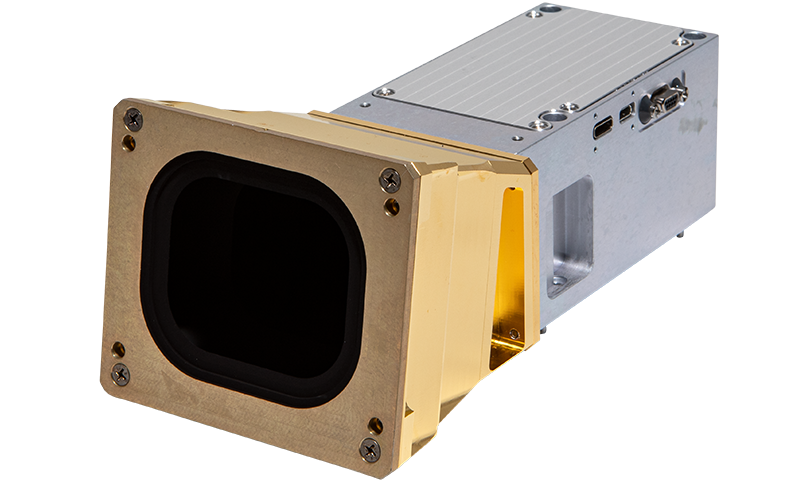

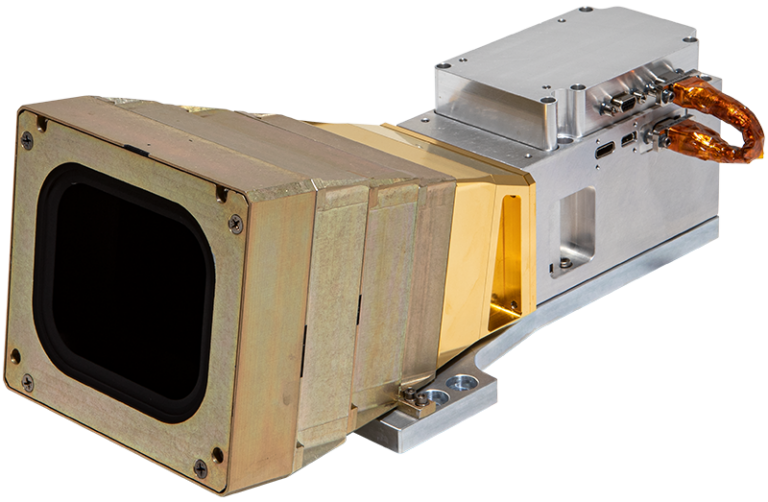

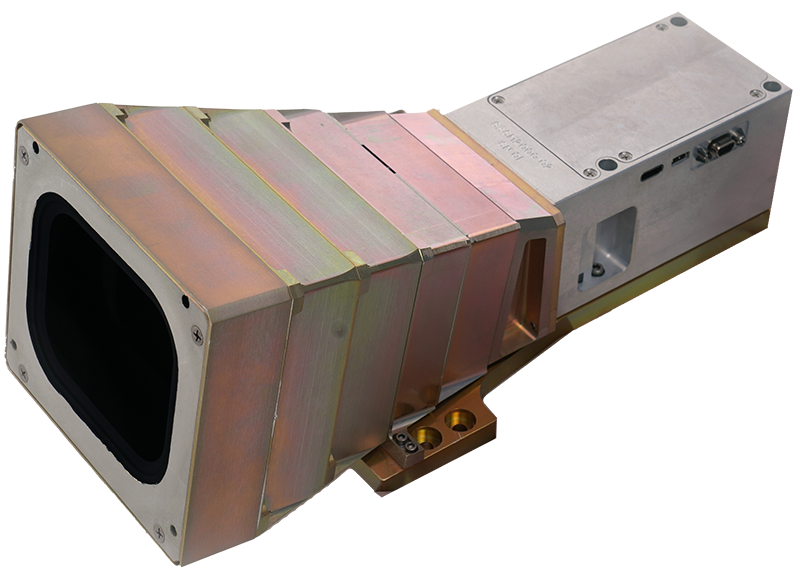

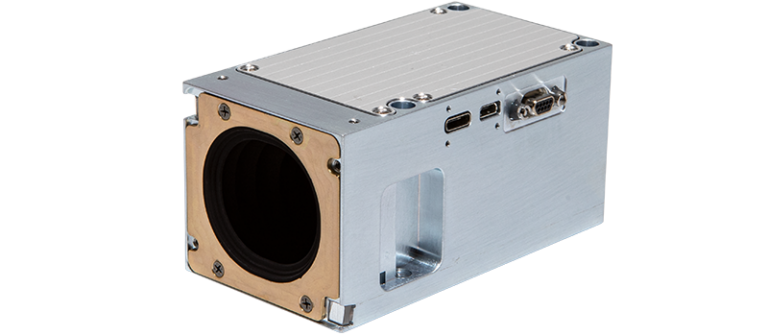

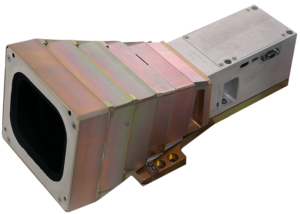

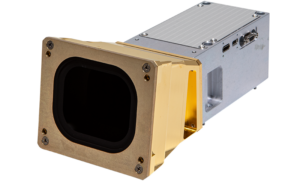

A family of low SWaP-C nano star trackers from Blue Canyon Technologies offering lost-in-space star identification across three form factors with proven flight heritage.

1 14

Standard nst - mass	.35 kg
Standard nst - dimensions	10 x 5 x 5.5 cm
Standard nst - accuracy cross-boresight	6 arcsec
Standard nst - accuracy about-boresight	40 arcsec

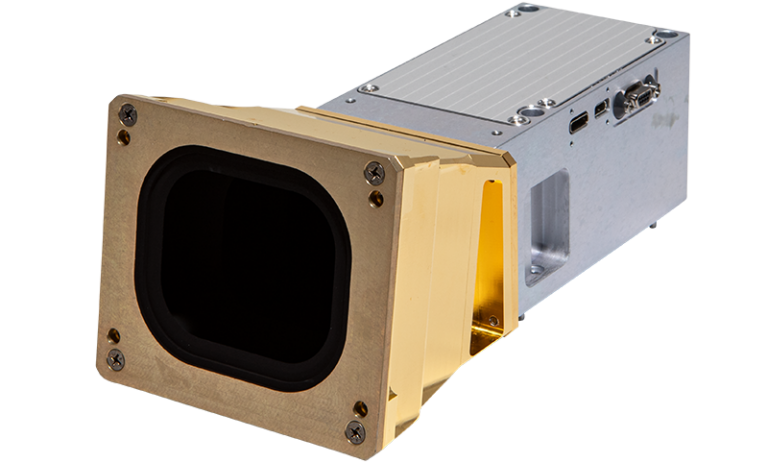

Mid-extension nst - mass	.45 kg
Mid-extension nst - dimensions	17 x 8.5 x 7 cm
Mid-extension nst - accuracy cross-boresight	1 arcsec
Mid-extension nst - accuracy about-boresight	10 arcsec

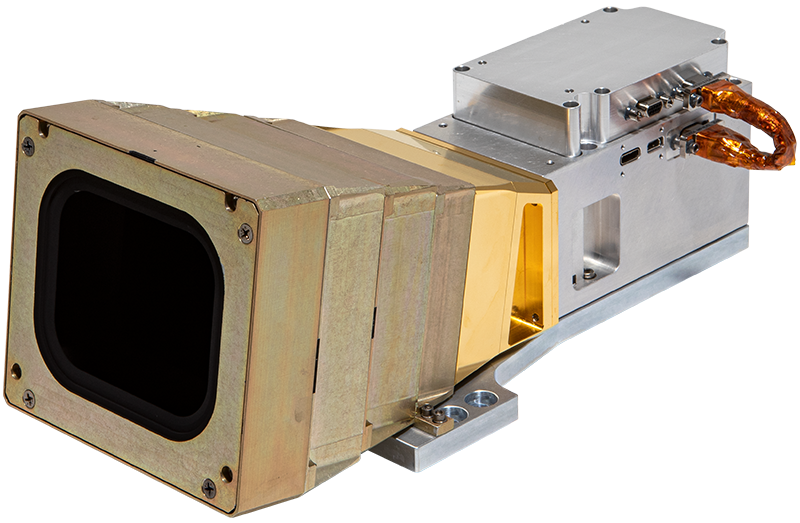

Full extension nst - mass	.85 kg
Full extension nst - dimensions	25 x 10 x 10 cm
Full extension nst - accuracy cross-boresight	1 arcsec
Full extension nst - accuracy about-boresight	10 arcsec
Manufactured	960
Launched	390

Flight-proven

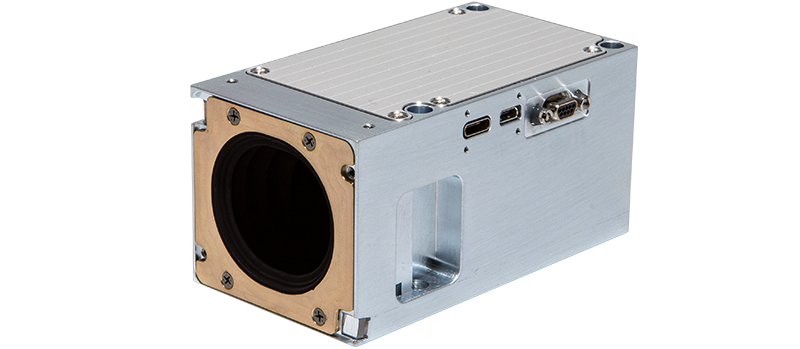

Blue Canyon Technologies' Nano Star Trackers (NST) are low SWaP-C attitude sensors offering lost-in-space star identification with flight-proven heritage.

3 14

Standard nst - mass	0.35 kg
Standard nst - dimensions	10 x 5 x 5.5 cm
Standard nst - accuracy cross-boresight	6 arcsec
Standard nst - accuracy about-boresight	40 arcsec
Mid-extension nst - mass	0.45 kg
Mid-extension nst - dimensions	17 x 8.5 x 7 cm
Mid-extension nst - accuracy cross-boresight	1 arcsec
Mid-extension nst - accuracy about-boresight	10 arcsec
Full extension nst - mass	0.85 kg
Full extension nst - dimensions	25 x 10 x 10 cm
Full extension nst - accuracy cross-boresight	1 arcsec
Full extension nst - accuracy about-boresight	10 arcsec
Manufactured	960
Launched	390

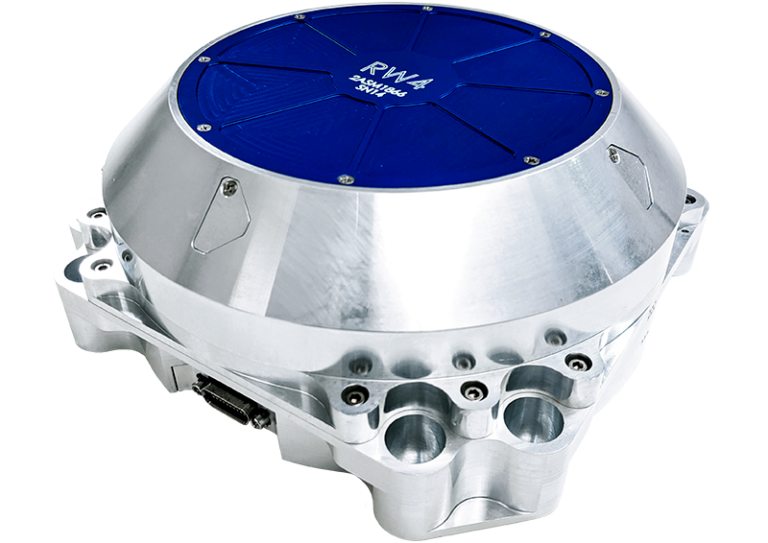

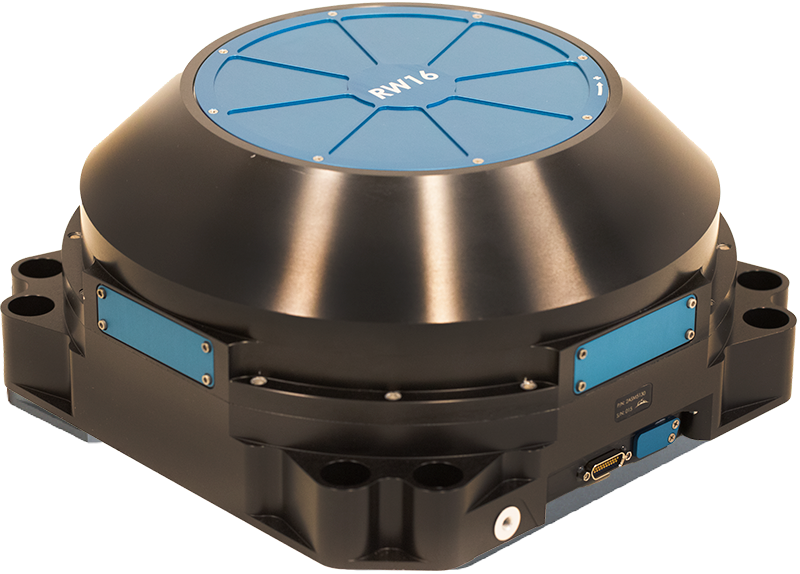

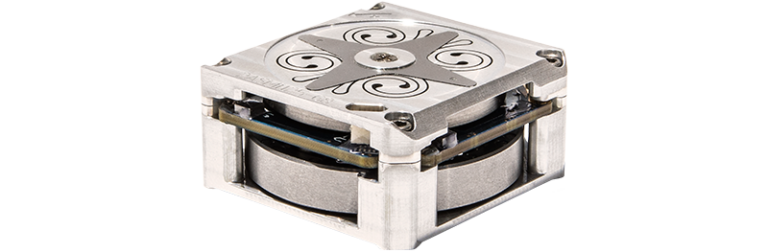

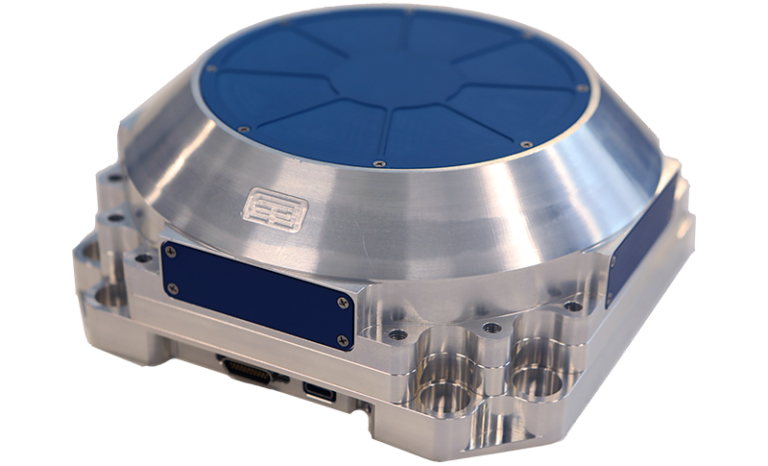

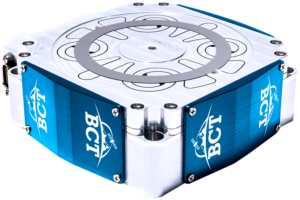

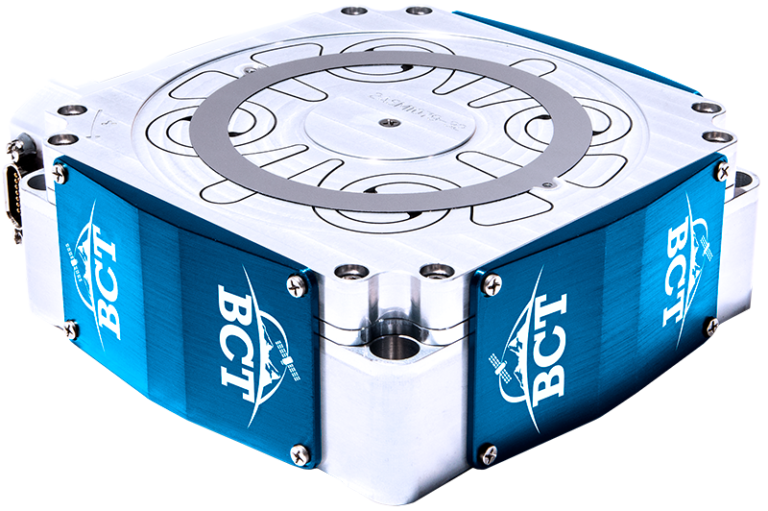

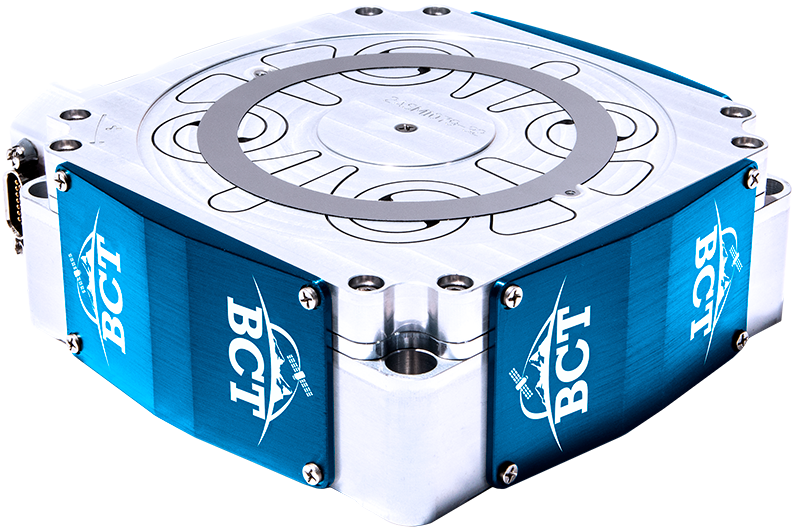

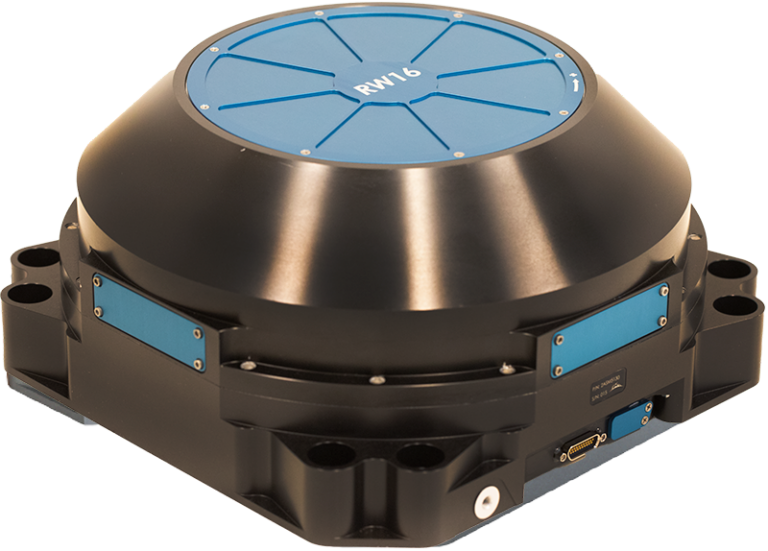

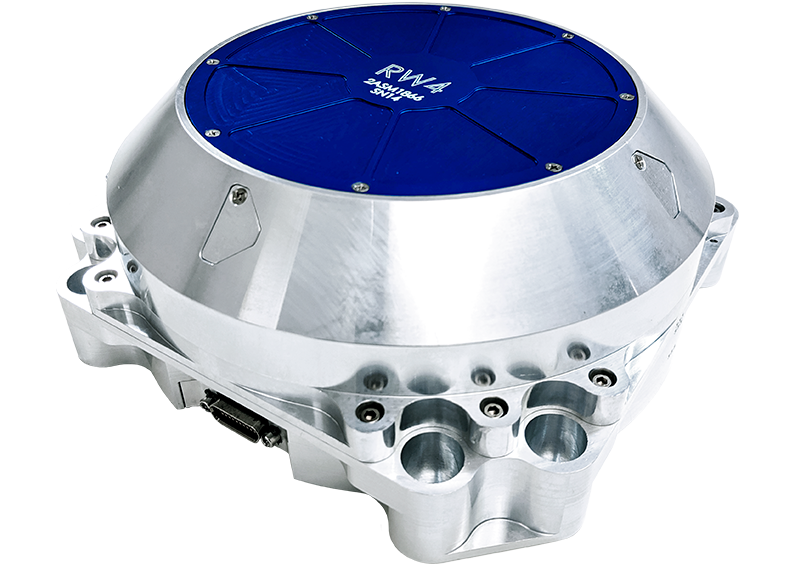

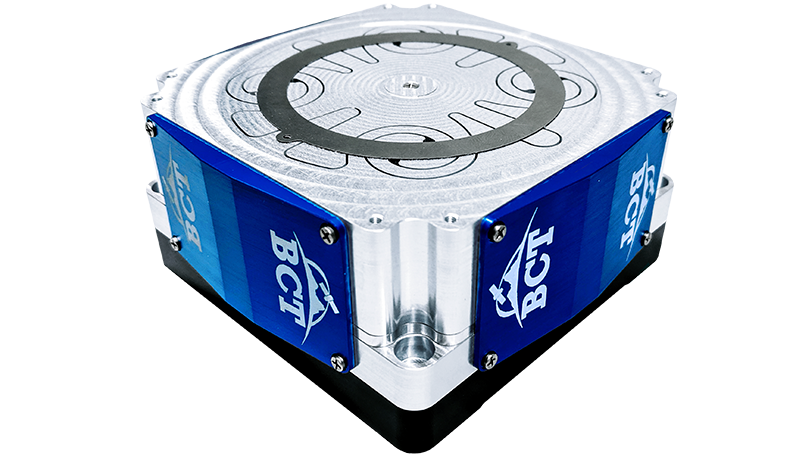

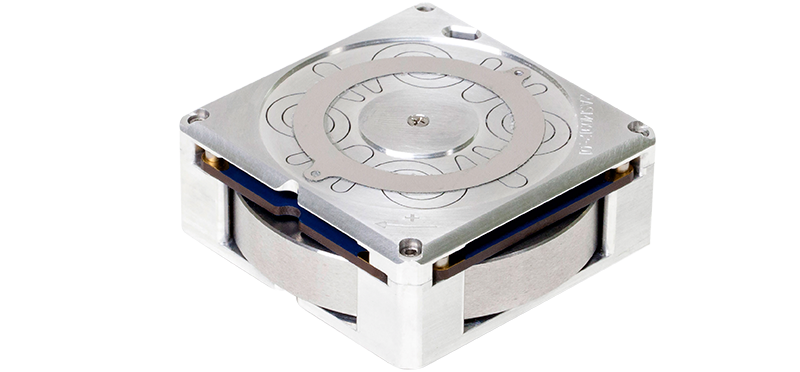

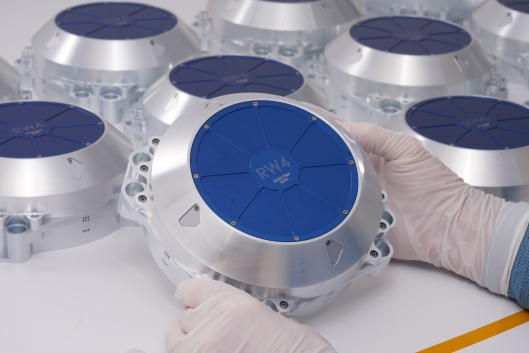

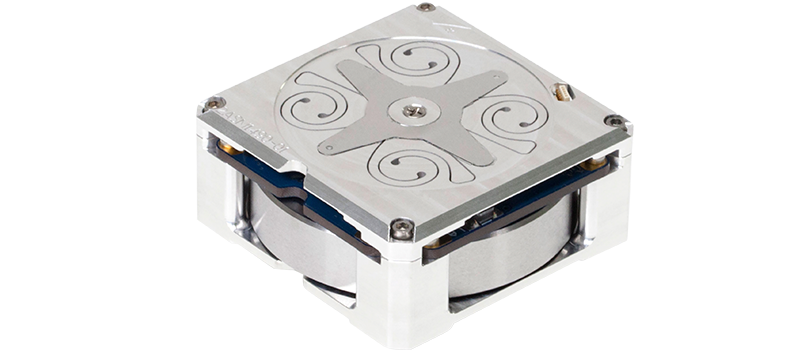

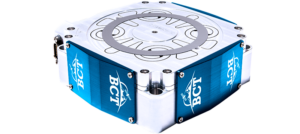

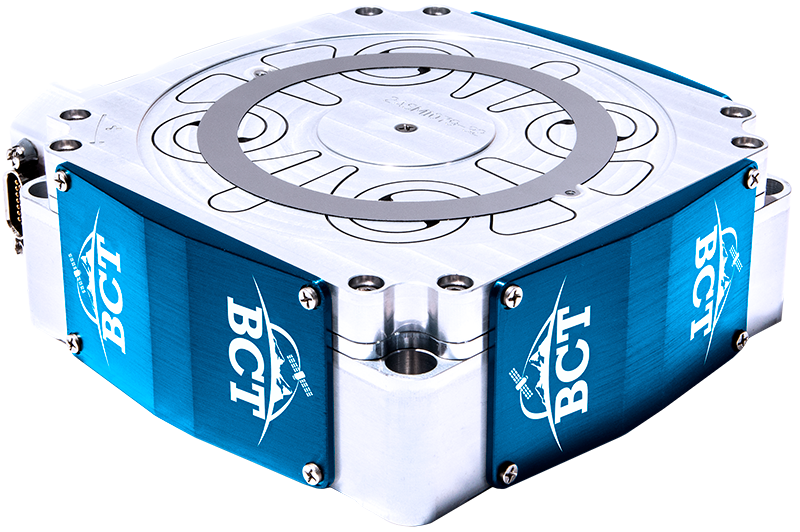

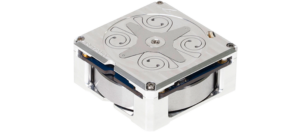

Blue Canyon Technologies offers a line of low-jitter reaction wheels ranging from 0.015 Nms to 16.0 Nms of momentum, designed for long life and vibration isolation.

8 29

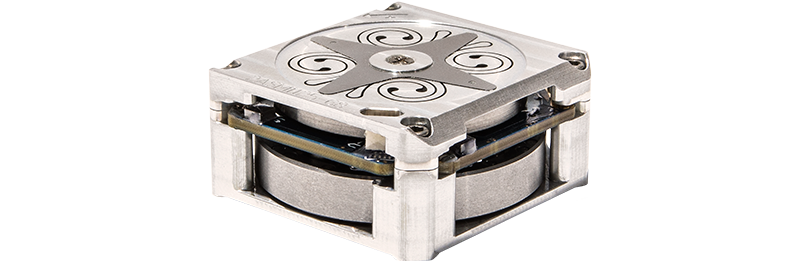

Rwp015 max momentum	0.015 Nms
Rwp015 max torque	0.004 Nm
Rwp015 mass	0.13 kg

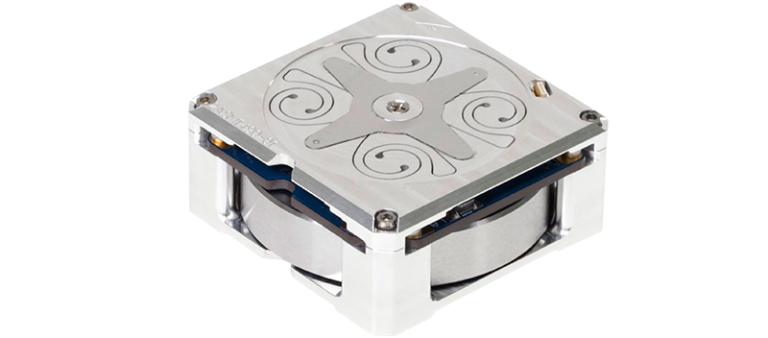

Rwp050 max momentum	0.050 Nms
Rwp050 max torque	0.007 Nm
Rwp050 mass	0.24 kg

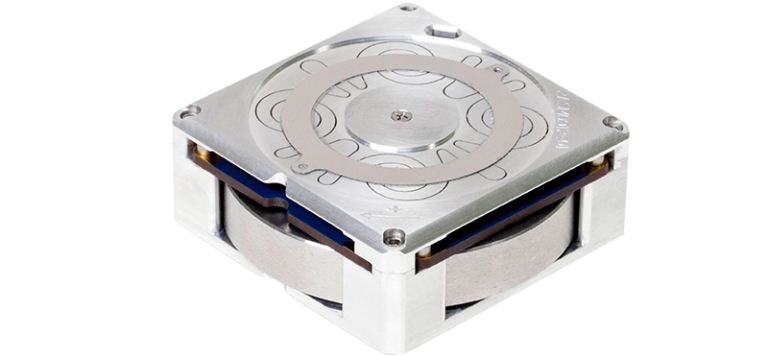

Rwp100 max momentum	0.100 Nms
Rwp100 max torque	0.007 Nm
Rwp100 mass	0.33 kg
Rwp500 max momentum	0.50 Nms
Rwp500 max torque	0.025 Nm
Rwp500 mass	0.86 kg
Rw1 max momentum	1.0 Nms
Rw1 max torque	0.06 Nm
Rw1 mass	1.1 kg
Rw2 \| rw2-ht max momentum	2.0 Nms \| 1.2 Nms
Rw2 \| rw2-ht max torque	0.12 Nm I 0.25 Nm
Rw2 \| rw2-ht mass	2.5 kg
Rw4 \| rw4-ht max momentum	4.0 Nms \| 2.5 Nms
Rw4 \| rw4-ht max torque	0.25 Nm \| 0.50 Nm
Rw4 \| rw4-ht mass	3.2 kg

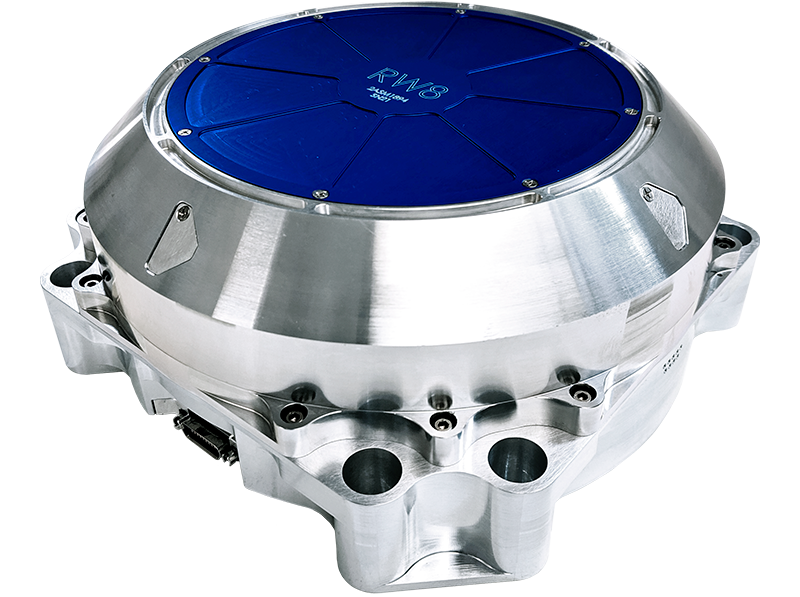

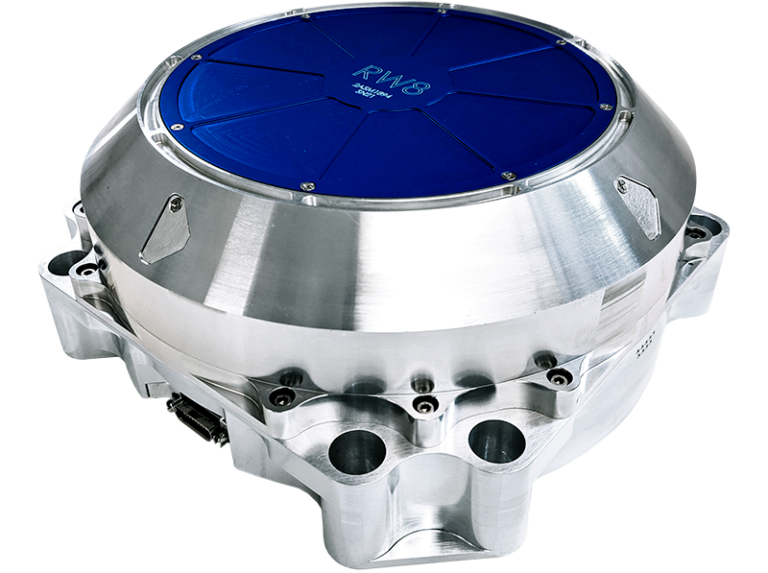

Rw8 \| rw8-ht max momentum	8.0 Nms \| 5.0 Nms
Rw8 \| rw8-ht max torque	0.25 Nm \| 0.50 Nm
Rw8 \| rw8-ht mass	4.4 kg
Rw16 \| rw16-ht max momentum	16.0 Nms \| 10.0 Nms
Rw16 \| rw16-ht max torque	0.25 Nm \| 0.50 Nm
Rw16 \| rw16-ht mass	7.5 kg
Manufactured	3,700
Launched	1,400

Blue Canyon Technologies' ultra-low disturbance reaction wheels deliver long-life performance and vibration isolation features, supporting missions from very low Earth orbit to cislunar and interplanetary journeys.

2 2

Torque	0.015 Nms
Torque (2)	16.0 Nms

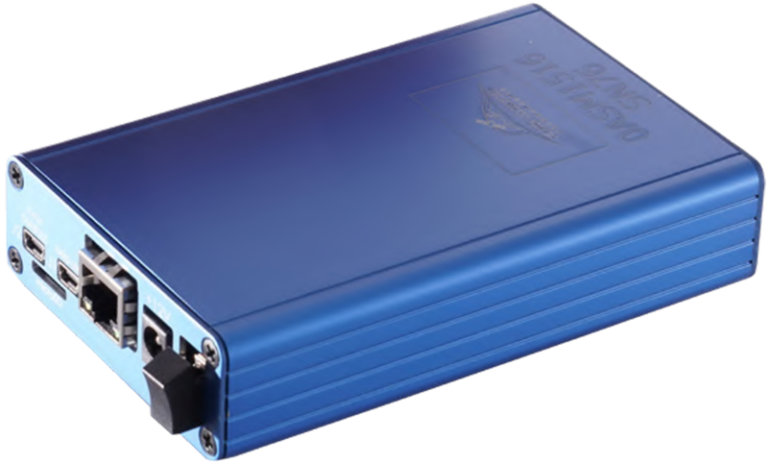

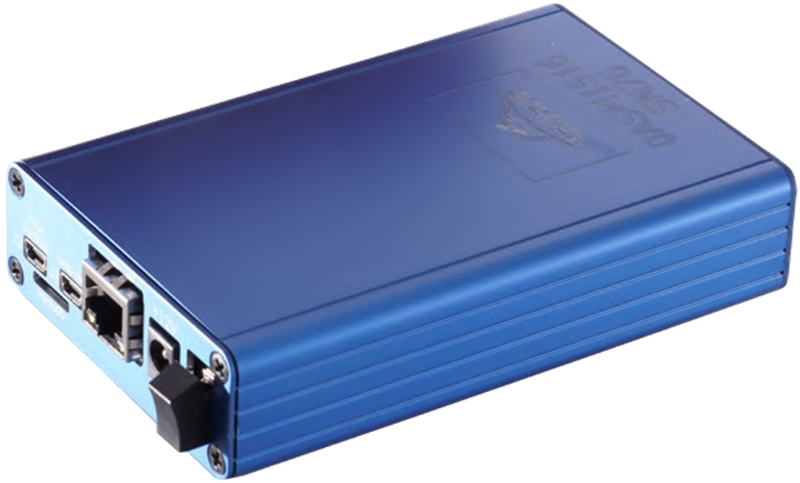

The Real-Time Dynamics Processor (RDP) is one of two spacecraft simulation products offered by Blue Canyon Technologies to support various mission and hardware-in-the-loop needs.

Flight-proven

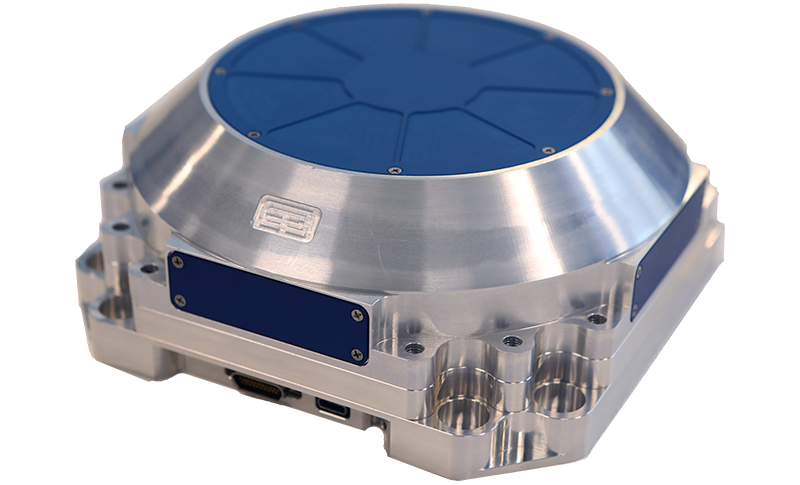

Rw1	Smallest variant, 1U-3U CubeSat class
Rw2 / rw2-ht	2U-6U class; HT = High-Temperature qualified variant
Rw4 / rw4-ht	4U-6U class
Rw8 / rw8-ht	6U-12U class; used in XB6/XB12
Rw16 / rw16-ht	Largest variant for Saturn-400 and 16U+ platforms
Control	3-axis attitude control; integrates with BCT XB1 avionics
Flight heritage	Extensive — NASA MarCO, TROPICS, HaloSat, Starling, DoD missions
Operating environment	LEO, GEO, cislunar, deep space

Rwp015	Smallest RWP variant; microsatellite class
Rwp050	Mid-range stored momentum
Rwp100	Suitable for Venus/Saturn-class platforms
Rwp500	Largest stored momentum; Saturn-400 and larger buses
Qualification	Qualified beyond GEVS-level environments
Compatible platforms	BCT Saturn-200, Saturn-400, Venus-100; third-party microsatellites
Flight heritage	BCT Saturn and Venus mission heritage

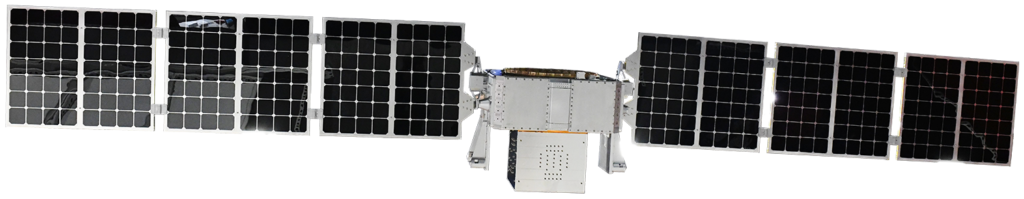

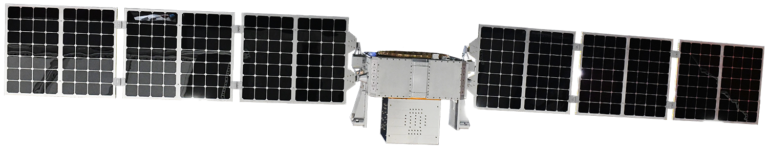

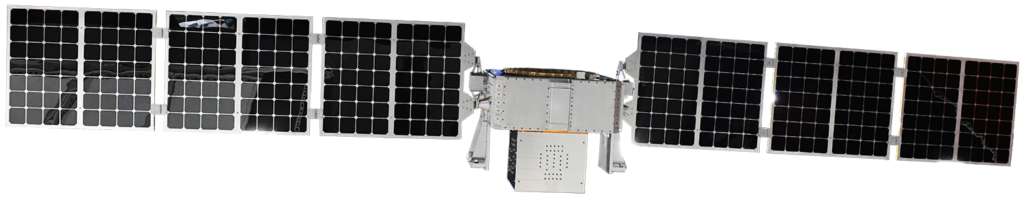

The Saturn-200 is a flight-proven minisatellite bus platform supporting diverse missions from LEO to deep space, featuring autonomous mission resume and hardware-encrypted TT&C.

1 7

Class	ESPA-Grande or equivalent 24” launch interface standard, other options available
Available payload volume	30.0” X 30.0” X 40.0” (typical); Larger volume available within rideshare envelope and in dedicated launch vehicle fairings
Pointing accuracy	±.002° (1-sigma), about all axes, using 2 Trackers
Orbit altitude / orbit lifetime	LEO (> 5 years), GEO (> 2 years), Deep Space (> 2 years)
Units launched	06
Units in-work	02
Units delivered	01

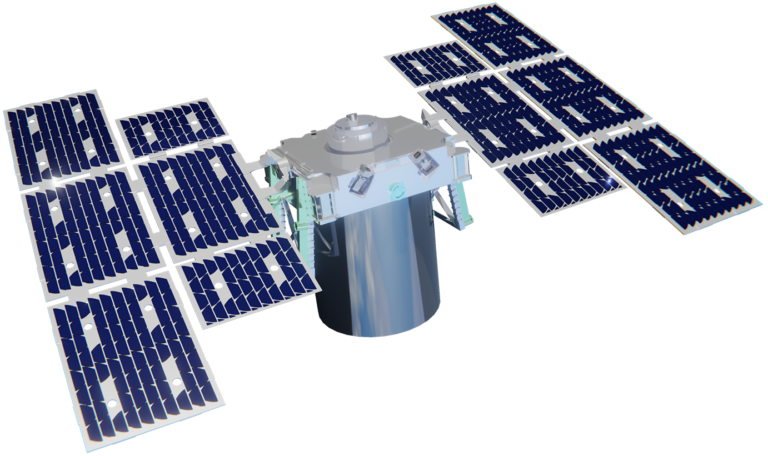

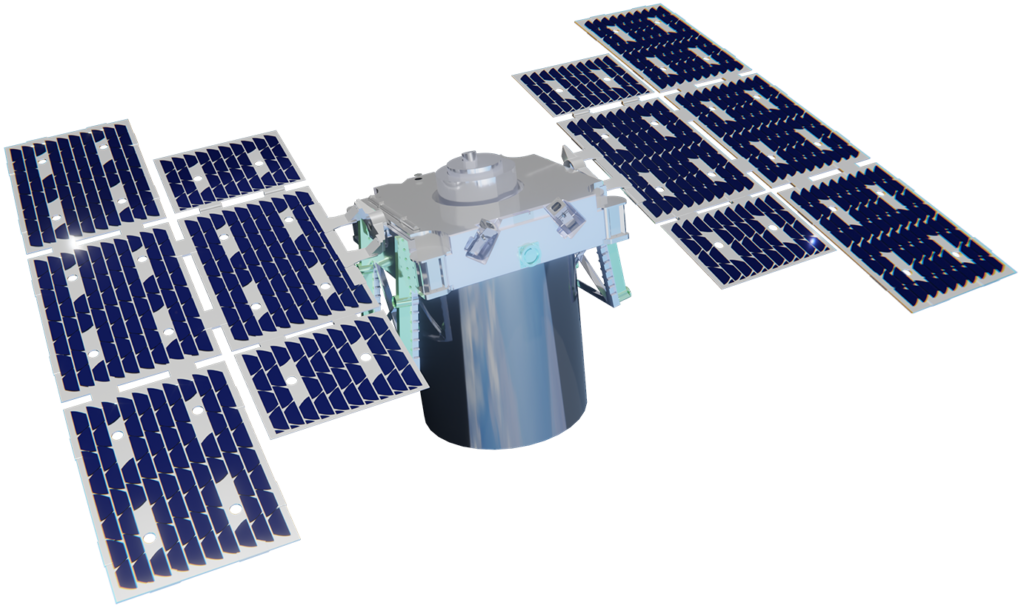

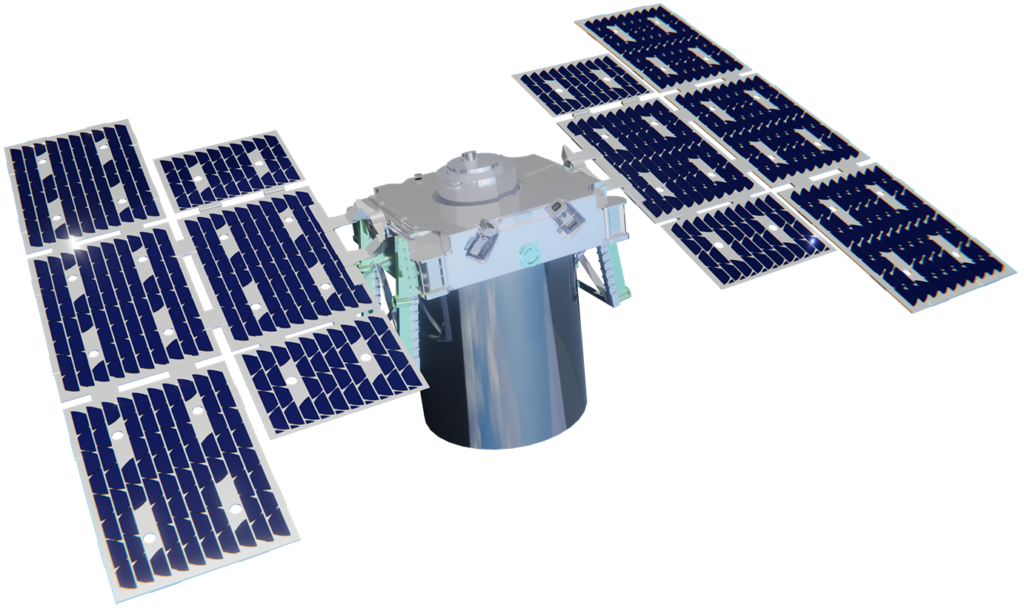

Saturn-400 is a small satellite platform from Blue Canyon Technologies offering high payload capacity, scalable power, and multiple reaction wheel or CMG attitude control options for complex missions.

1 8

Class	ESPA-Grande or equivalent four-point mount launch vehicle interface, compliant to SpaceX rideshare
Available payload volume	40.0” x 40.0” x 45.0” (objective); Larger volume available depending on launch vehicle allowable payload volume
Pointing accuracy	±.002° (1-sigma), three axes, two trackers
Orbit altitude / orbit lifetime	LEO (> 5 years), GEO (> 2 years), Deep Space (> 2 years)
Energy storage	75 Ah
Solar array power (BOL)	1876 W
Payload mass capability	250 kg
Payload mass capability (Cake-Topper)	600 kg

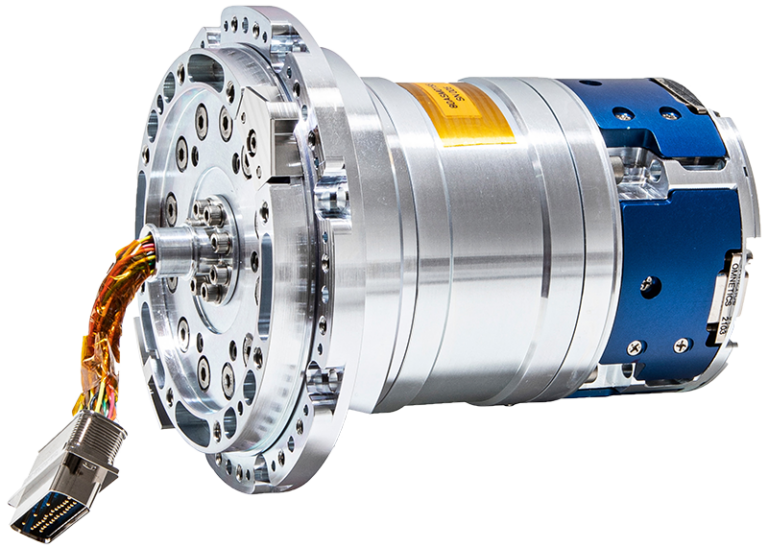

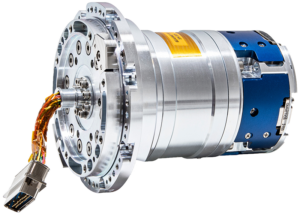

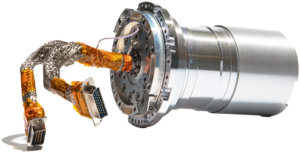

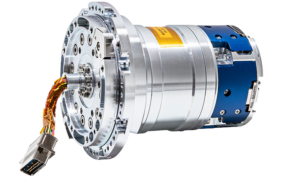

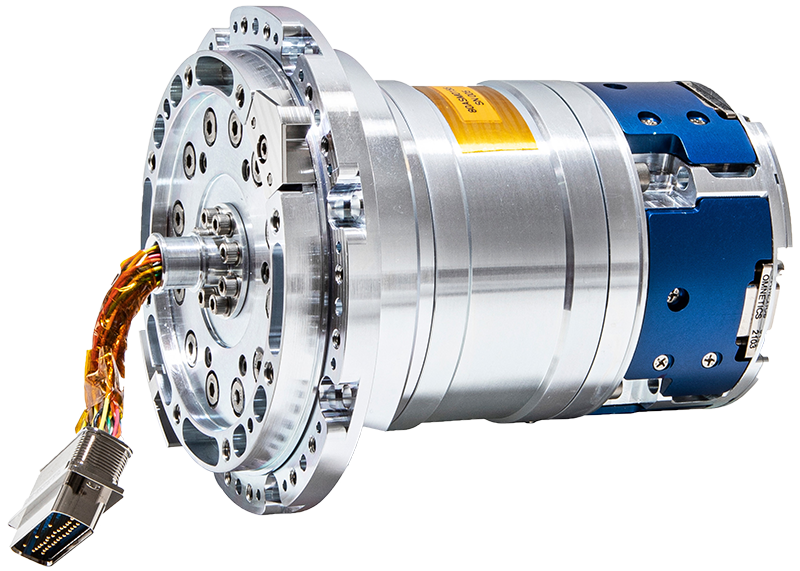

Blue Canyon Technologies' high-performance, lightweight, and modular SADA design maximizes payload operation time through a rotary interface between a spacecraft and its solar panels.

3 15

SADA-3 Mass	1.5 kg
SADA-3 Volume	12.5 cm x 11.1 diameter
SADA-3 Rated Torque	10 Nm
SADA-3HP Mass	1.66 kg
SADA-3HP Volume	15.0 cm x 11.1 diameter
SADA-3HP Rated Torque	10 Nm
Mass	1.5 kg
Dimensions	ø11.1 x 12.5 cm
Torque	10 Nm
Range of Motion	+/- 175˚
Maximum Rate	10˚/s
Power	12 W
Lifetime	5 Years
Solar Array String Count	15 Strings
Maximum Current per Solar Array String	1.4 A

Flight-proven

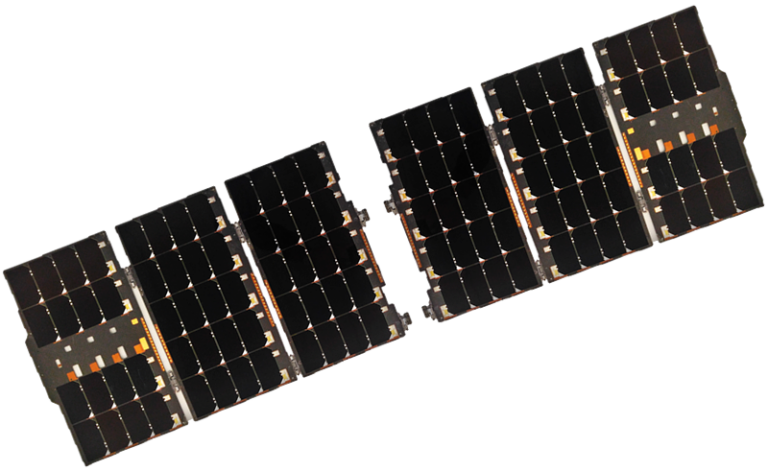

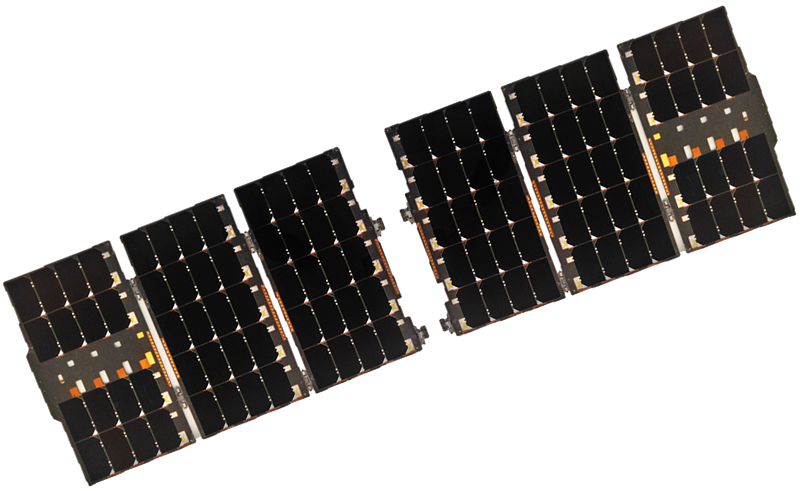

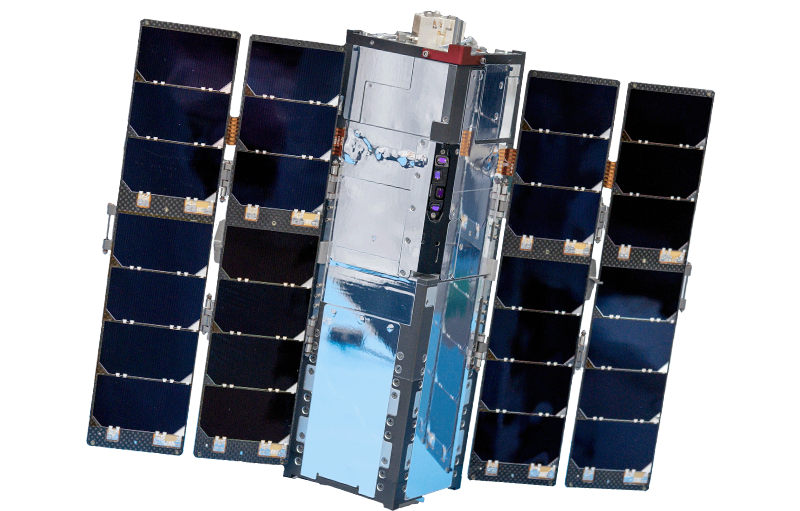

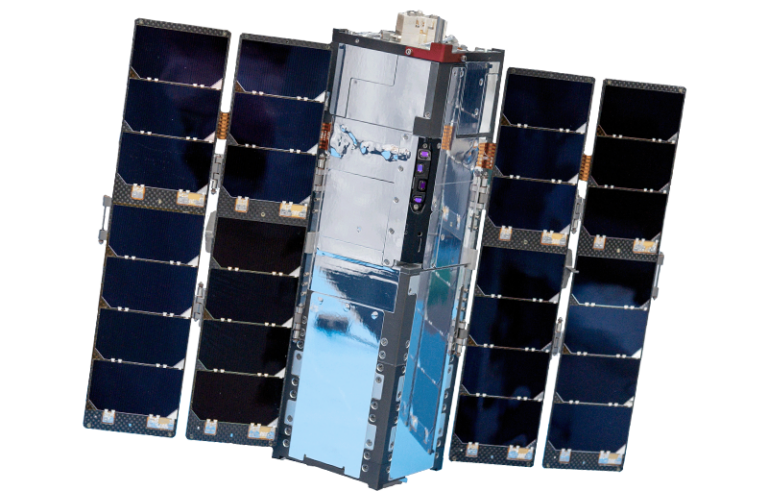

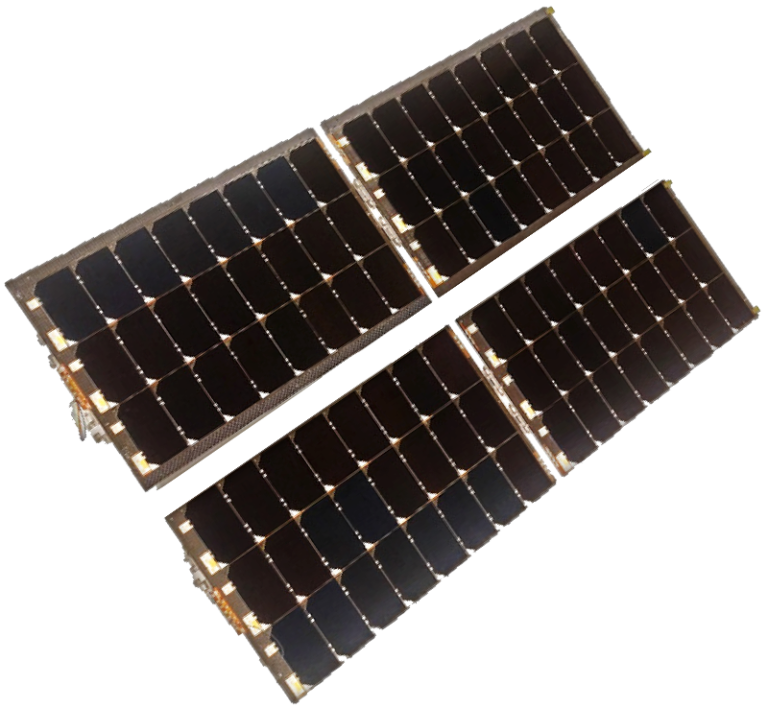

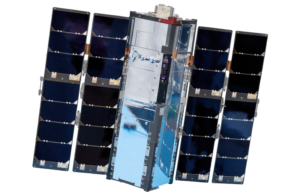

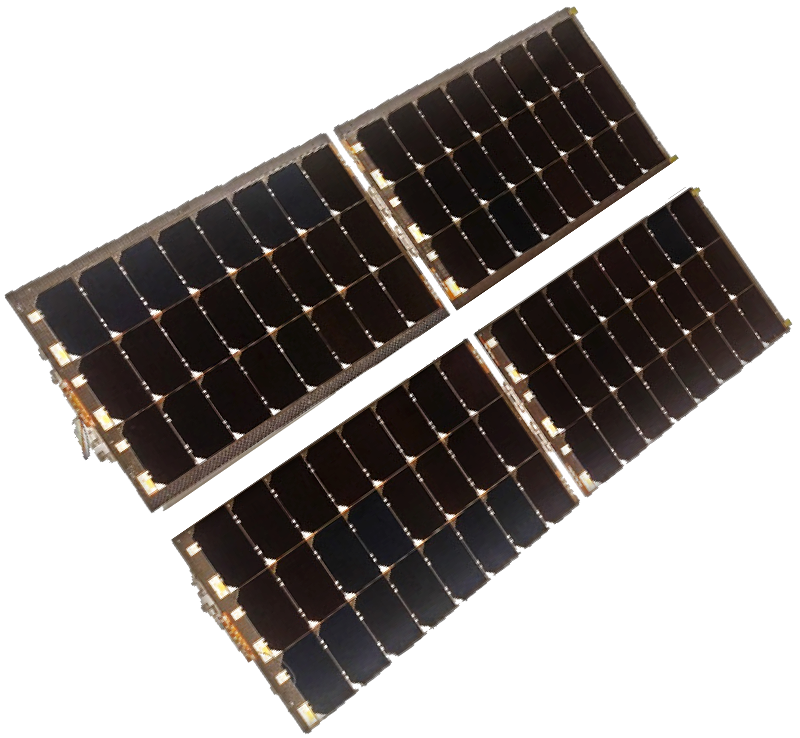

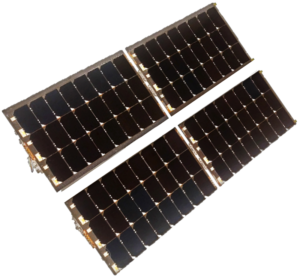

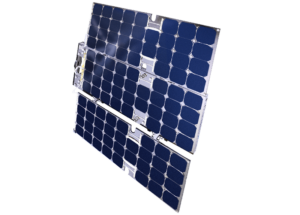

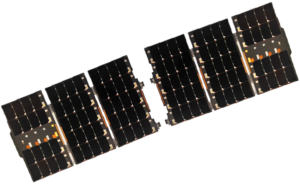

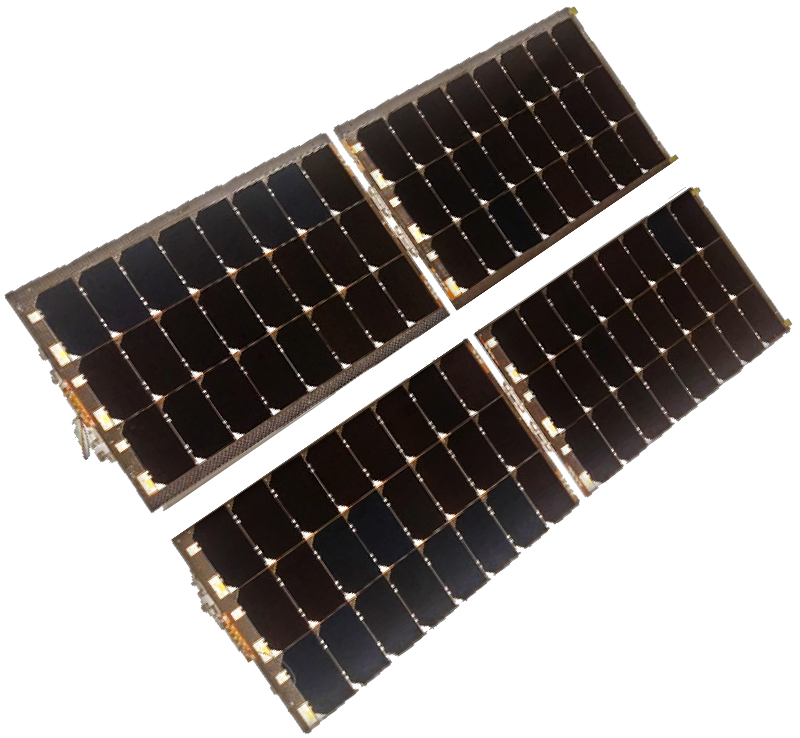

Blue Canyon Technologies offers flight-proven, high-efficiency solar arrays for various satellite platforms, providing reliable power for onboard systems.

4 10

3u solar array power	27 – 34 W
3u array voltage, vmp	14.9 VDC
6u/12u solar array power	48 – 118 W
6u/12u array voltage, vmp	17 or 34.1 VDC
Espa-class microsatellite solar array power	222 – 444 W
Espa-class microsatellite array voltage, vmp	36.2 VDC
Espa-g-class minisatellite solar array power	588 – 1175 W
Espa-g-class minisatellite array voltage, vmp	38.4 VDC
Flight heritage	Proven
Manufactured	310

Flight-proven

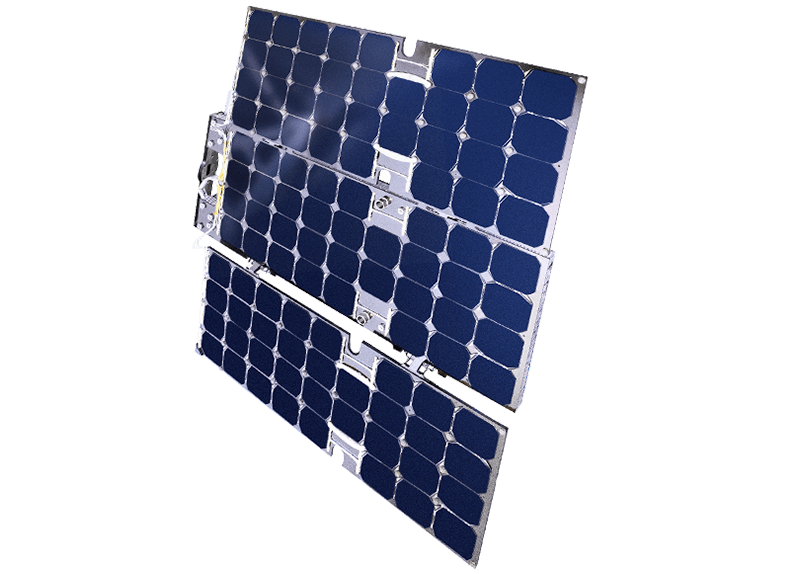

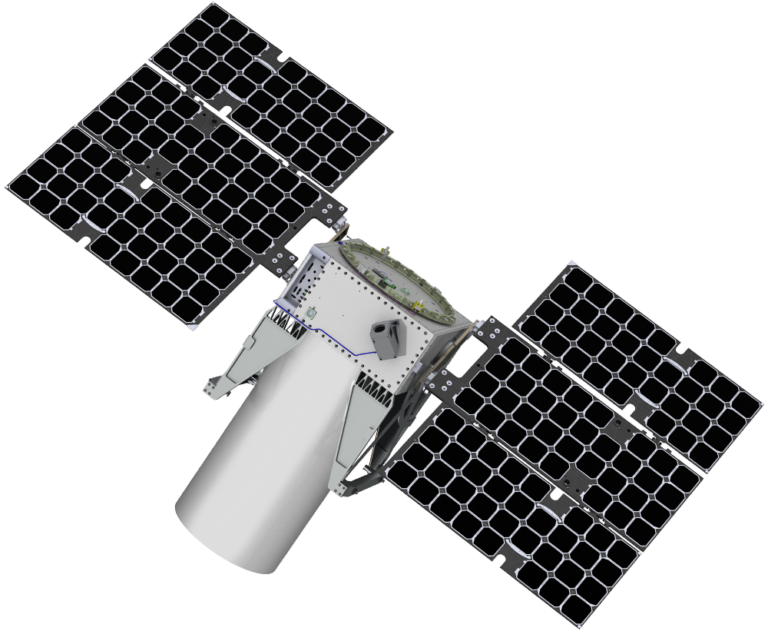

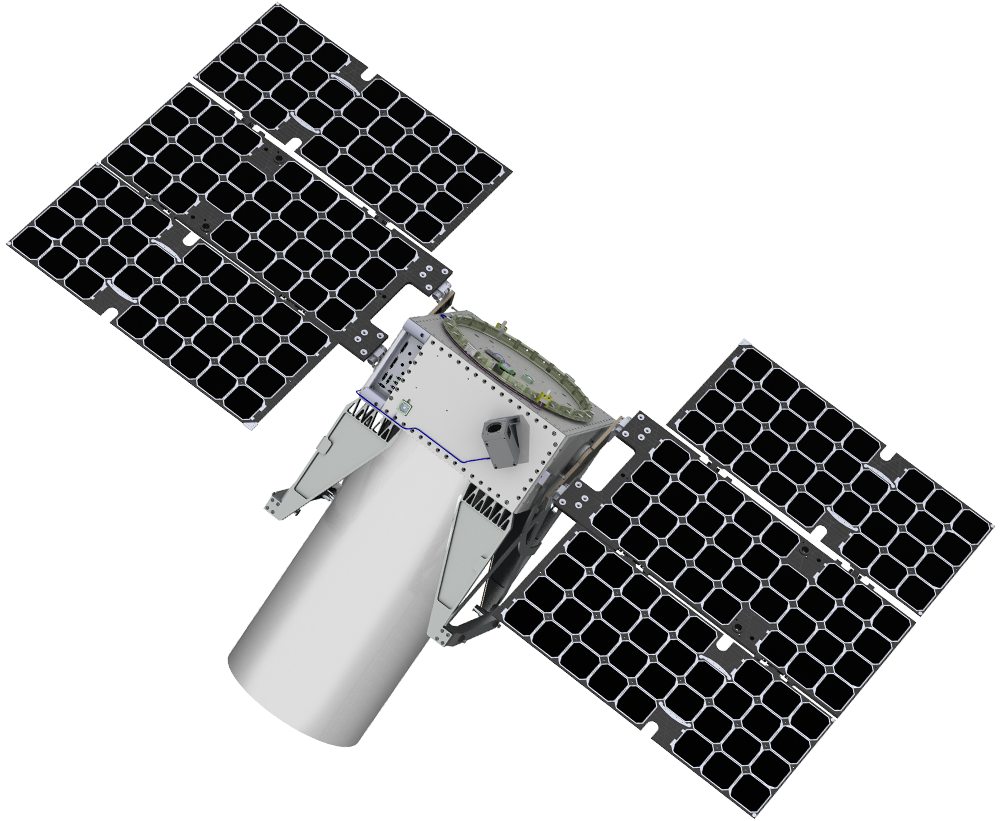

Venus-100 is a flight-proven, ESPA-class microsatellite bus from Blue Canyon Technologies offering high-precision pointing and support for LEO, GEO, and deep space missions.

1 7

Class	ESPA-Standard or large 15" launch vehicle interface
Available payload volume	20.5" X 16.4" X 27.0" (1 array) or 17.0" X 16.4" X 27.0" (2 array); larger volume available depending on launch vehicle
Pointing accuracy	±0.002° (1-sigma), 3 axes, 2 Trackers
Orbit altitude / orbit lifetime	LEO (> 5 years), GEO (> 2 years), Deep Space (> 2 years)
Units launched	05
Units in-work	07
Units delivered	02

Smallest BCT X-Sat microsat platform, 40 kg payload, 108 W solar, ±0.002° 3-axis pointing. LEO/GEO/deep space capable.

Payload mass	40 kg
Payload envelope	355.6 × 431.8 × 431.8 mm
Solar power	108 W
Battery	20.4 Ah
Pointing knowledge (3-axis)	±0.002°
Launch vehicle interface	8" and 11.32"
Design life	≥5 years LEO, ≥2 years GEO/deep space

BCT's largest X-Sat platform, 200 kg payload, 30×30×40 in bus, ±0.002° 3-axis pointing. For high-payload government/commercial missions.

1 5

Payload mass	200 kg
Bus dimensions	30 × 30 × 40 in
Launch vehicle interface	24'
Pointing knowledge (3-axis)	±0.002°
Design life	≥5 years LEO, ≥2 years GEO/deep space

Mid-size BCT microsat platform, 70 kg payload, ±0.002° 3-axis pointing. Secure communications, radiation tolerant. LEO/GEO/deep space.

Payload mass	70 kg
Pointing knowledge (3-axis)	±0.002°
Radiation	Radiation tolerant
Design life	≥5 years LEO, ≥2 years GEO/deep space

Flight-proven

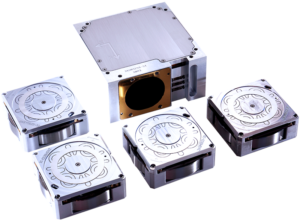

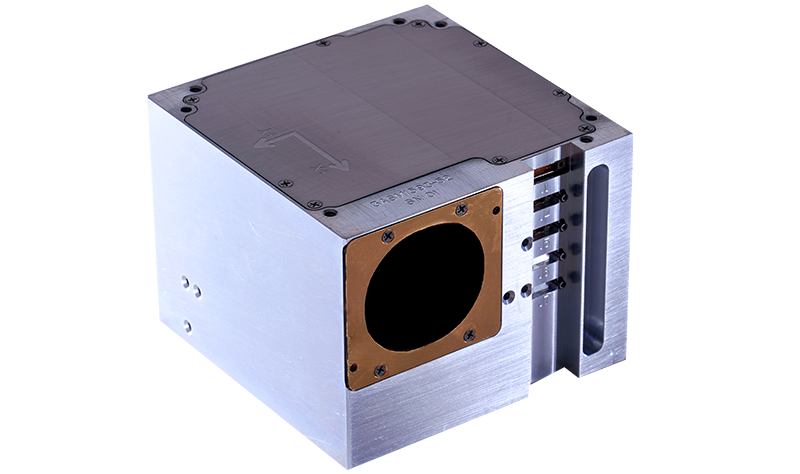

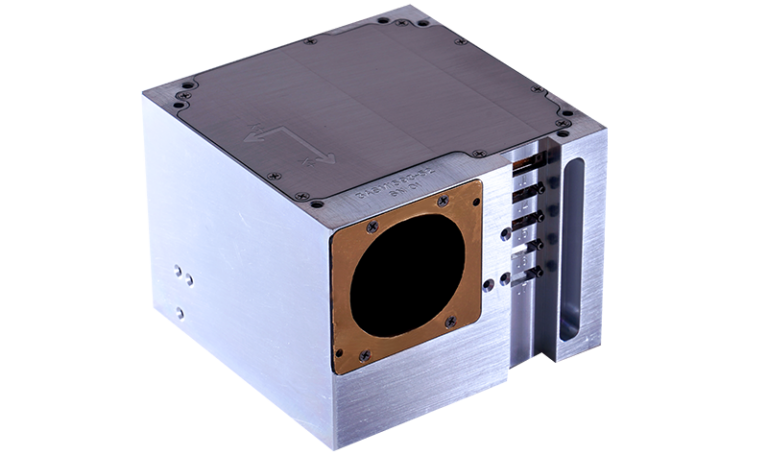

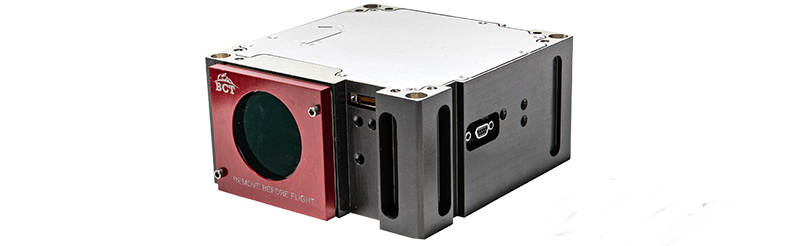

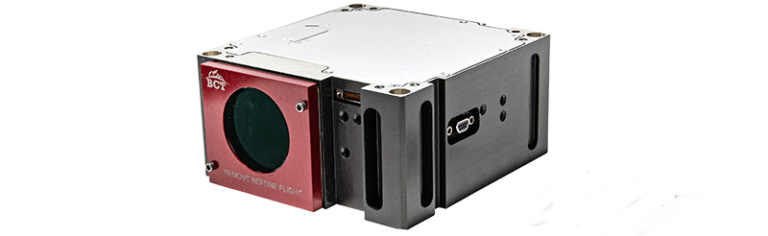

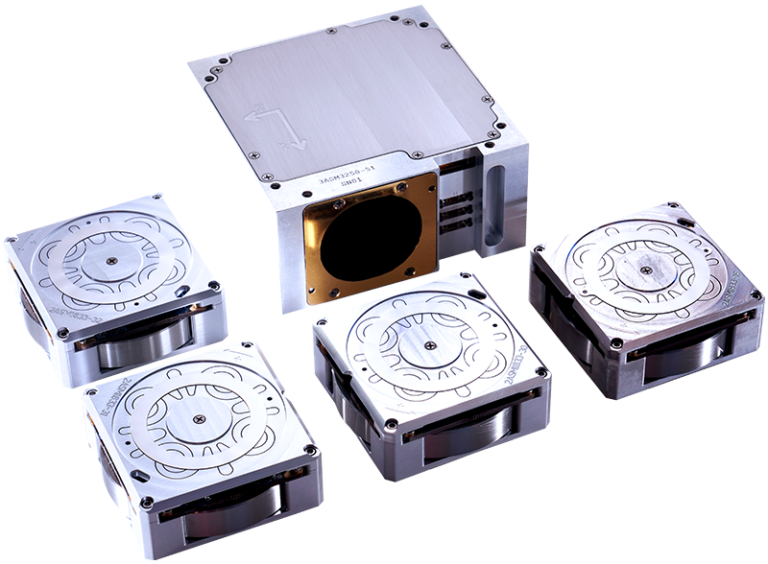

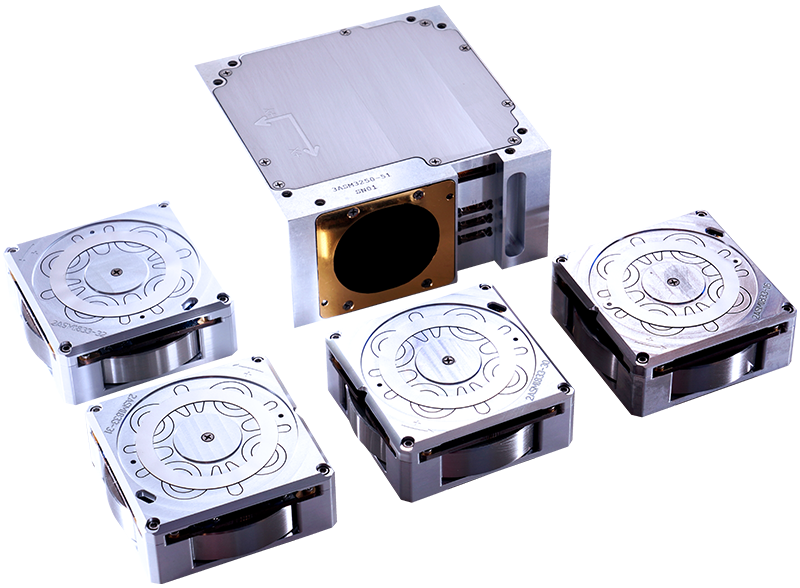

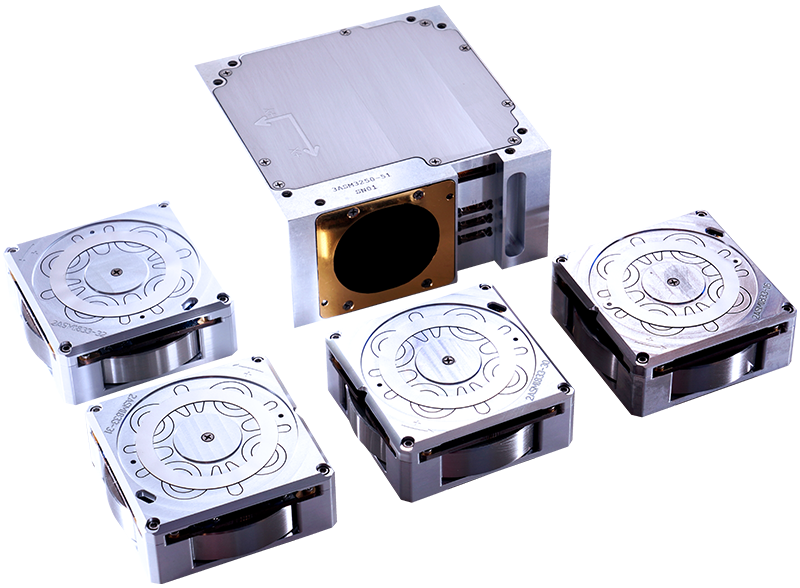

The XACT is an integrated attitude control solution for CubeSats, providing high-accuracy pointing capabilities for various missions.

3 11

Xact-15 mass	.89 kg
Xact-15 dimensions	10 x 10 x 5 cm (0.5U)
Xact-15 supply voltage	12 V
Xact-50 mass	1.23 kg
Xact-50 dimensions	10 x 10 x 7.54 cm (0.75U)
Xact-50 supply voltage	12 V
Xact-100 mass	.52 kg + 1 kg (wheels)
Xact-100 dimensions	10 x 10 x 5 cm (0.5U) (not incl. external components)
Xact-100 supply voltage	12 V
Manufactured	250
Launched	80

Flight-proven

Blue Canyon Technologies' flagship XB series is a modular, flight-proven CubeSat bus line (XB1 core avionics in 3U, 6U, 12U, and 16U configurations) built for high-precision pointing, agility, and rapid, cost-efficient mission deployment.

Configurations	3U, 6U, 12U, 16U CubeSat
Core avionics	XB1 - integrated C&DH, ADCS, RF, Power, GPS, mission software
Pointing accuracy (3U, 2-axis, 1 tracker)	±0.03° (1-sigma)
Pointing accuracy (6U/12U/16U, 3-axis, 2 trackers)	±0.002° (1-sigma)
Slew rate	360 deg/min
Orbit types supported	LEO, GEO, Lunar, CisLunar
Mission design life	5 years
Maximum payload mass (XB16)	23 kg
Acs type	3-axis reaction wheel control
Comm band	S-band baseline (optional X-band)
Compatible launch vehicles	Rocket Lab Electron, ISRO PSLV, ULA Atlas V/Vulcan, SpaceX Falcon Heavy, Firefly Alpha, NASA SLS
Flight heritage	50-60+ XB CubeSats launched; 70+ satellite missions supported overall (MarCO, AMS, HaloSat, TEMPEST-D, CSIM, Starling 1-4, TROPICS, ARCSTONE, CLICK)

Additional Services

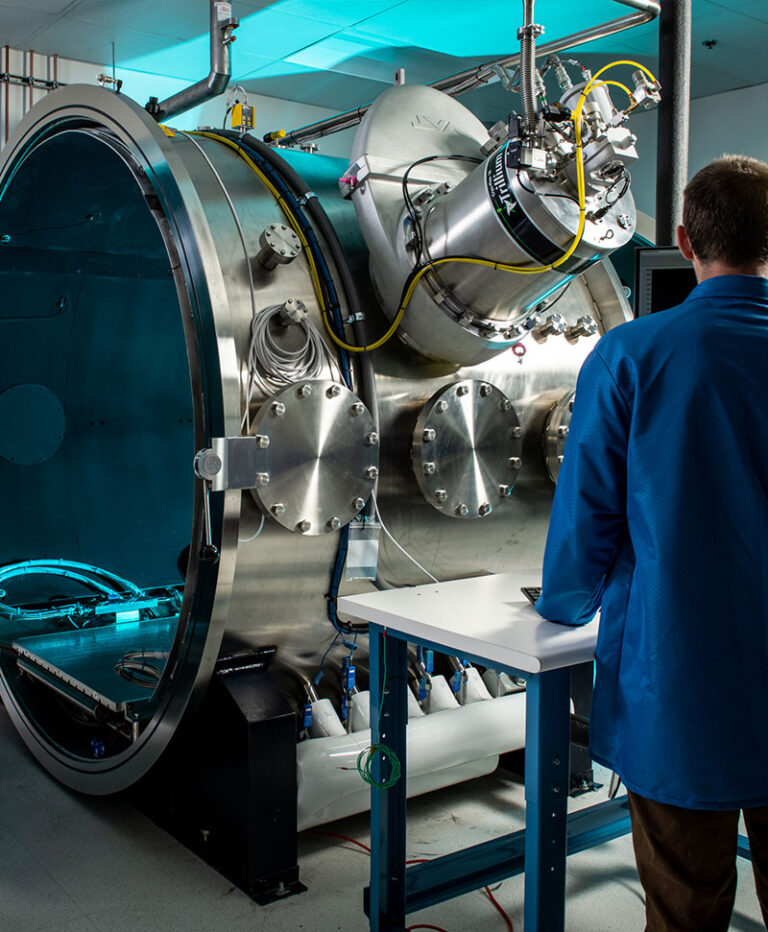

Integration & testing

Details →

Blue Canyon Technologies provides integration and test services, leveraging advanced testing facilities to prepare for missions. They perform various environmental tests, including vibration, thermal vacuum, and high-G shock testing, to verify the structural integrity and functional performance of spaceflight hardware.…

Full details →

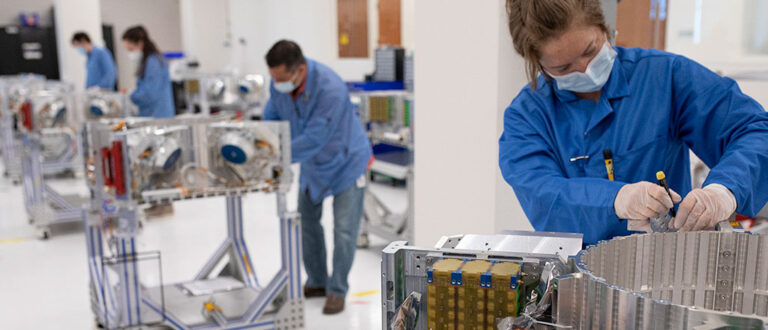

Testing & qualification

Details →

Blue Canyon Technologies provides advanced environmental testing facilities to build confidence in missions. Their standard suite of environmental testing includes vibration and thermal vacuum testing. Additionally, they perform high-G shock testing across all three axes to verify the structural integrity…

Full details →

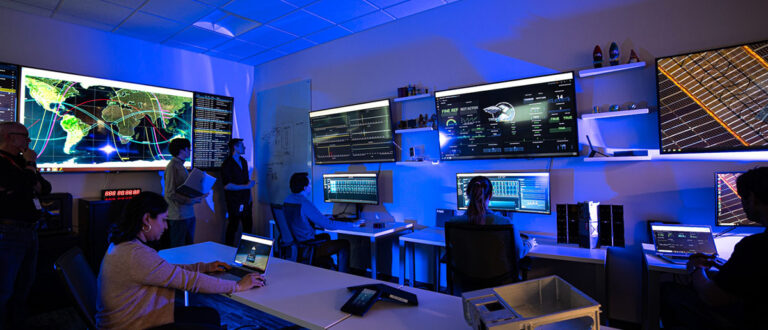

Mission operations

Details →

Blue Canyon Technologies offers comprehensive mission operations services, leveraging direct access to their engineering teams to provide unmatched insight into spacecraft subsystem and flight software behavior. This enables efficient, reliable operations and effective anomaly mitigation and resolution. Their Mission Operations…

Full details →

Reviews

No reviews yet — reviews come from buyer accounts that have worked with this company.

Write a review

← All providers

Blue Canyon Technologies

About Blue Canyon Technologies

Photos 1

Products

12U CubeSat

12U CubeSat

Description

Specifications

16U CubeSat

16U CubeSat

Description

Specifications

3U CubeSat

3U CubeSat

Description

Specifications

6U CubeSat

6U CubeSat

Description

Specifications
