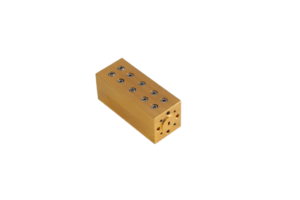

W-Band Receiver Module (WB-RX-9296-LN)
celtonn
WB-RX-9296-LN is Celtonn's highly sensitive W-Band receiver module operating nominally from 92-96 GHz, with a 3.5 dB noise figure and WR10 waveguide interface.
Typed specifications22 values
Discloses 4 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- W datasheet p.1 Ka RX
- Frequency range
- 92 000 MHz nominal · datasheet p.1 91 000 MHz min · RF Input | 97 000 MHz max · RF Input | 92 000–96 000 MHz nominal operating range | 91 000–97 000 MHz RF input +2
- RX sensitivity
- -100 dBm max · minimum usable sensitivity · datasheet -100 dBm max · minimum usable sensitivity less than -100dBm
- Supply voltage
- 5 V nom. · datasheet 5 V typ | 7 V max | 5 V nom. · typ
- Function
- receiver datasheet p.1
- RF connector
- waveguide flange RF connec9on · datasheet p.1 other RF connection | waveguide flange WR10 (RF in)
- Channel bandwidth
- 4 000 kHz datasheet p.1
- RF gain
- 15 dB nom. · typ · datasheet p.1
- Noise figure
- 3.5 dB nom. · typ · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- RF input
- 91–97 GHz
- RF output
- 1-7 GHz
- Lo frequency
- 10.5/21-11.5/23 GHz
- Lo power
- 10-18 dBm
- Noise figure
- 3.5 dB
- Gain
- 15 dB
- Supply voltage
- 7 V Max
- Current
- 600 mA
About
The WB-RX-9296-LN is a highly sensitive W-Band receiver module that nominally works from 92-96 GHz but can be customized to work in most W-Band frequencies. Its low noise figure of 3.5 dB enhances sensitivity, giving a minimum usable sensitivity of less than -100 dBm. RF connection is made through a WR10 waveguide, and the receiver is operable with a local oscillator frequency of either 10.5-11.5 GHz or 21-23 GHz. It is intended for broadband RF front-ends supporting space, air, and ground communications, mmWave radar systems (where it can be paired with Celtonn’s WB-TX-9296MP transmitter module), and integrated LO synthesis for specialized communication applications. Together with Celtonn’s W-Band transmitter, bandpass filter, and low noise amplifier modules, the receiver forms part of a modular W-Band RF front-end product family aimed at satellite communications and mmWave radar system integrators.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
