About ETL Systems

ETL Systems offers end-to-end expertise in the RF chain, from design to delivery.

Company Info

Headquarters United Kingdom

Specializations

manufacturer service provider

Website etlsystems.com ↗

Products

A super compact GaN-powered outdoor BUC/SSPA for Ku-band applications.

1 18

Input Frequency	850-3000 MHz (selectable in 1 KHz steps)
Output Frequency	850-3000 MHz (selectable in 1 KHz steps)
Instantaneous Bandwidth	Mode 1: 200 MHz, Mode 2: 400 MHz
Mean Conversion Gain	Max. 30 ± 2 dB / Min. 0 ± 2 dB
Gain steps	0.25 ± 0.15 dB
Gain Flatness	Full Instantaneous Band : ± 1 dB, Any 40 MHz : ± 0.35 dB
Input Return Loss (50Ohm)	Typ. -18 dB / Min. -14 dB
Output Return Loss (50Ohm)	Typ. -18 dB / Min. -14 dB
Noise Figure At max. gain	Typ. 10 dB / Max 12 dB
Maximum Operational Input level	-30 dBm
OP1dB At max. gain	Typ. +13 dBm / Min. +10 dBm
OIP3 At max. gain	Typ. +25 dBm / Min. +22 dBm
Internal Reference Stability	± 5 x 10-8 over 0 to 50°C
Image Rejection	60 dB typical
External Reference Input Frequency	10 MHz or 100 MHz
External Reference Input Level	0 dBm ± 10 dB
Mute	60 dB
Number of conversion stages	Dual

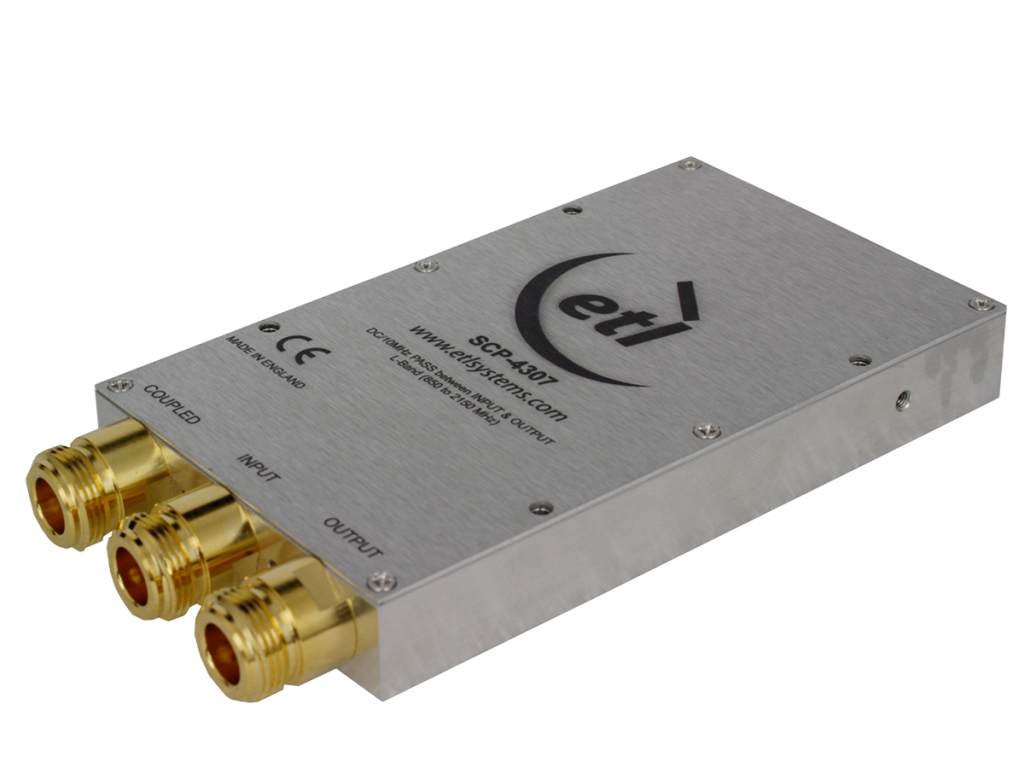

ETL Systems offers passive directional and proximity couplers for RF monitoring, designed for compact and cost-effective integration into satellite communication systems.

1 3

Frequency Range	50-2450 MHz
Coupling Factor	10 dB
Directivity Typ.	14 dB

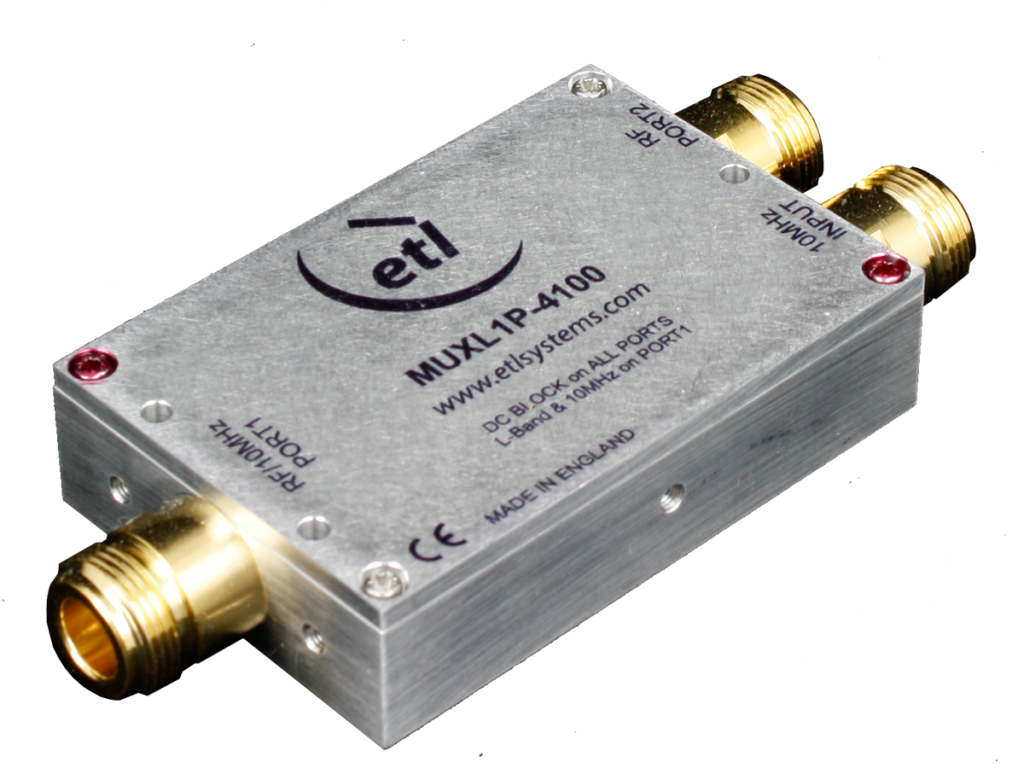

Versatile DC powering and 10MHz injection solutions with multiple configuration options for satellite communication systems.

1 7

Voltage (DC Inserters)	Off / 13 V / 18 V / 24 V
10MHz (DC Inserters)	Yes / No
L-band (Multiplexers)	Yes
10MHz (Multiplexers)	Yes
DC (Multiplexers)	Yes / No
DC Blocked (Multiplexers)	All ports / 10 MHz input port / 10 MHz port / 10 MHz input port & port 2
Module Capacity	Up to 17 modules in 1U chassis

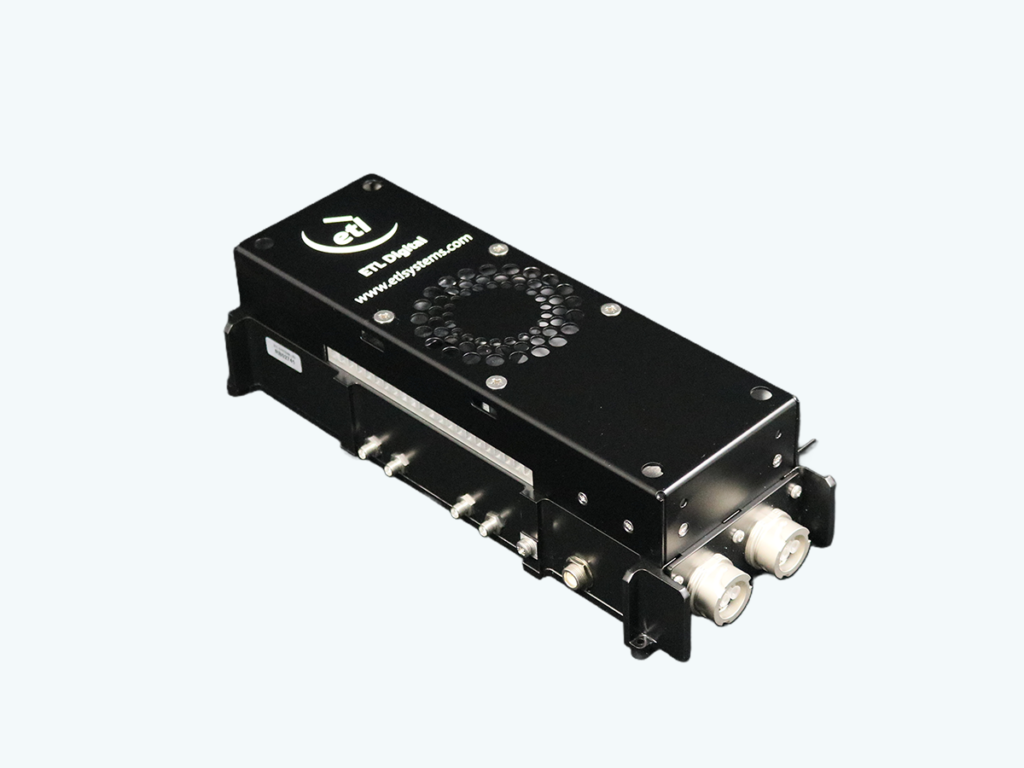

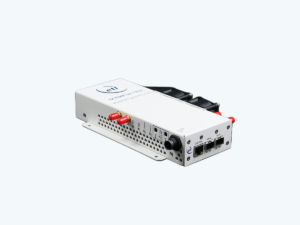

ETL's revolutionary digitisation module, DIGITAL 1000, brings all the benefits of RF over IP transport out to the network edge, bridging the gap between traditional RF and the near-future virtualised ground segment.

2 9

Frequency Range	850 - 2450 MHz
Instantaneous Bandwidth	125 MHz
ADC Sample Depth	8 bits per I or Q sample
DAC Sample Depth	16 bits per I or Q sample
Data Protocol	IEEE-ISTO Std 4900-2021 (DIFI) Information Class 0x0000, 0x0002, 0x0003, 0x0004
Instantaneous Bandwidth (DI-EDM-S2-1702)	500 MHz
ADC Sample Depth (DI-EDM-S2-1702)	8 bits per I or Q sample (Upgradeable to 12 bits)
ADC Sample Depth (DI-EDM-S2-1601)	8 - 12 bits per I or Q sample
ADC Sample Depth (DI-EDM-S2-1701)	8 - 12 bits per I or Q sample

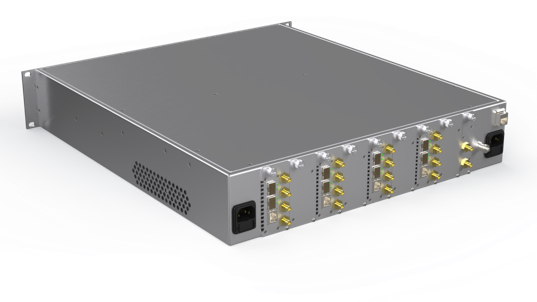

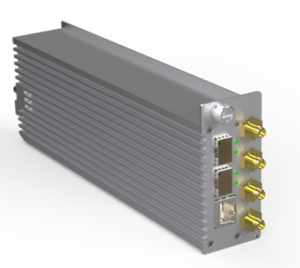

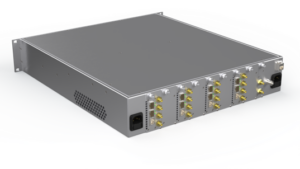

ETL's revolutionary digitisation module, the GENUS DIGITAL 1000, provides RF over IP transport within satellite gateways or ground stations, offering modularity and scalability.

2 9

Frequency Range	850-2450 MHz
Channels	Up to 8 channels of 500 MHz
ADC	12-bit
DAC	16 Bit
SFDR	60 dBc
Input Power	0 dBm to -60 dBm
Output Power	+3 dBm to -50 dBm
Digital Interface Data	10GbE, DIFI, IEEE-ISTO 4900-2001 protocol
Digital Interface Control	1GbE, SNMP, ReST

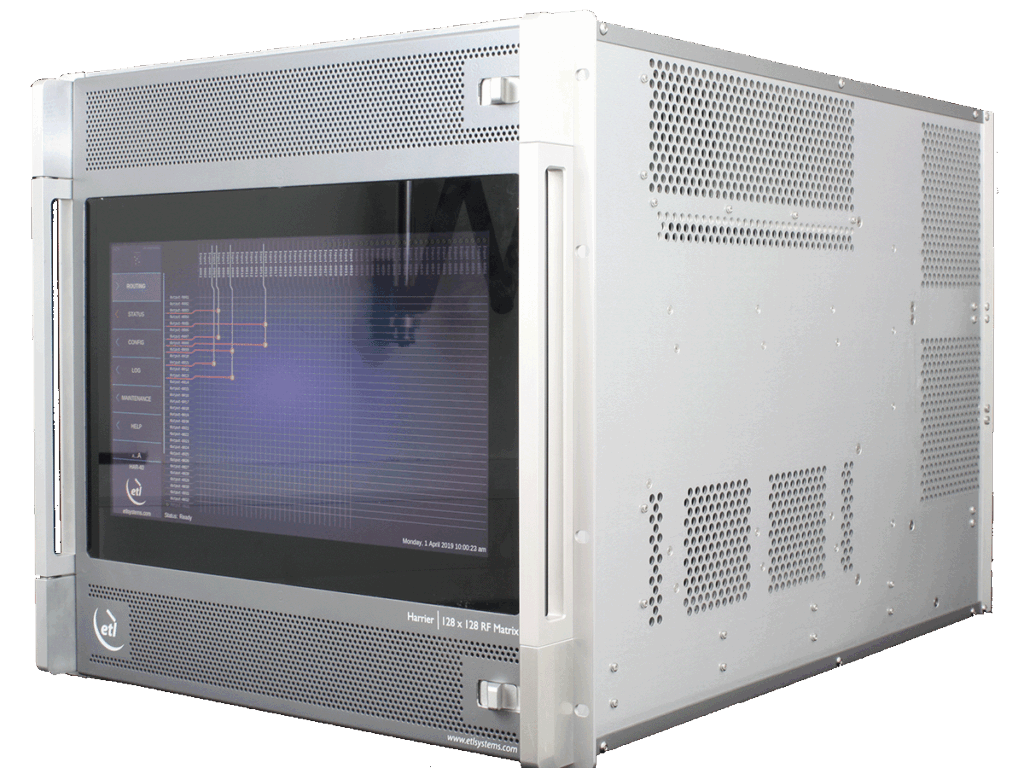

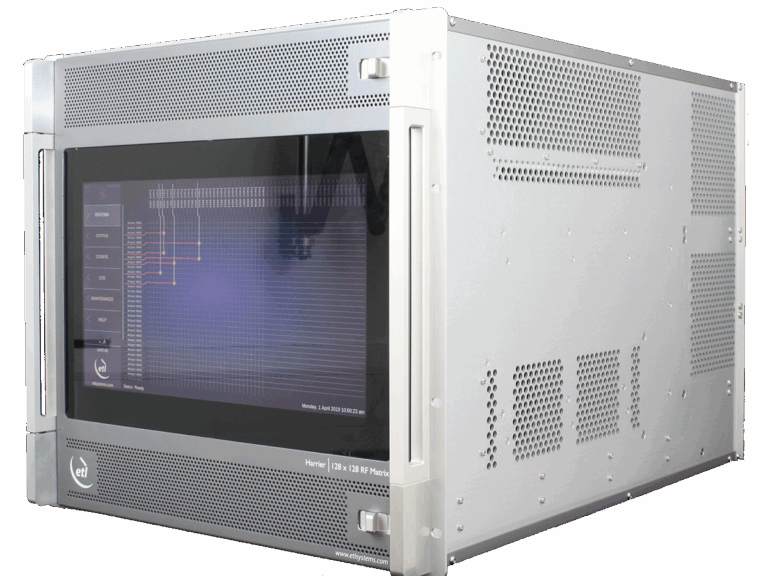

The HAR-40 is a HARRIER 128x128 distributive matrix offering an 850-2450MHz extended L-band range with LNB powering and an ultra-configurable model.

1 7

Model	HARRIER 128x128 distributive matrix
Frequency Range	850-2450 MHz extended L-band
Features	LNB powering, ultra-configurable model
Category	Matrices
Band	L-band
Application	Downlink
Unit Type	Indoor unit

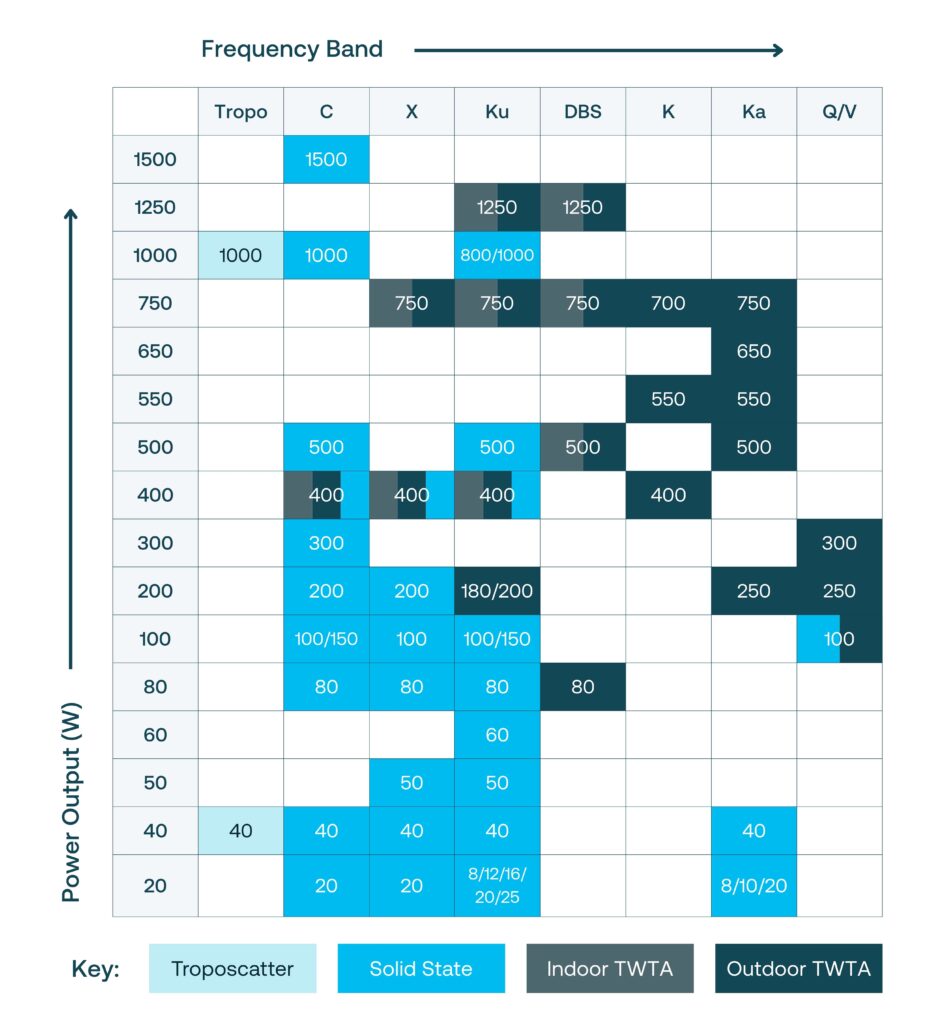

ETL Systems offers a comprehensive portfolio of RF high-power amplifiers (HPAs), including travelling wave tube amplifiers (TWTAs), solid-state power amplifiers (SSPAs), redundant system controllers, and sub-systems.

2 14

Frequency	KU1: 13.75 – 14.50 GHz KU2: 12.75 – 14.50 GHz KU3: 13.75 – 14.80 GHz KU4: 12.75 – 13.25 GHz
Bandwidth	500 MHz / 750 MHz
Output Power	56.0 dBm (400 W) PEAK
Gain	≥ 70 dB
Gain Adjustment range	30.0 dB typical
Input VSWR	≤ 1.3:1 (17.7 dB)
Output VSWR	≤ 1.3:1 (17.7 dB)
Full Load Current	12.5 A max @ 200 VAC
Supply voltage	99-265 VAC ± 10%
Dimensions	52 cm deep x 26 cm width x 26 cm height
Weight	21KG typical
Relative humidity	100% condensing
Shock	15 g peak, 11mSec, 1/2 sine
Vibration	3.2 g rms, 10-500 Hz

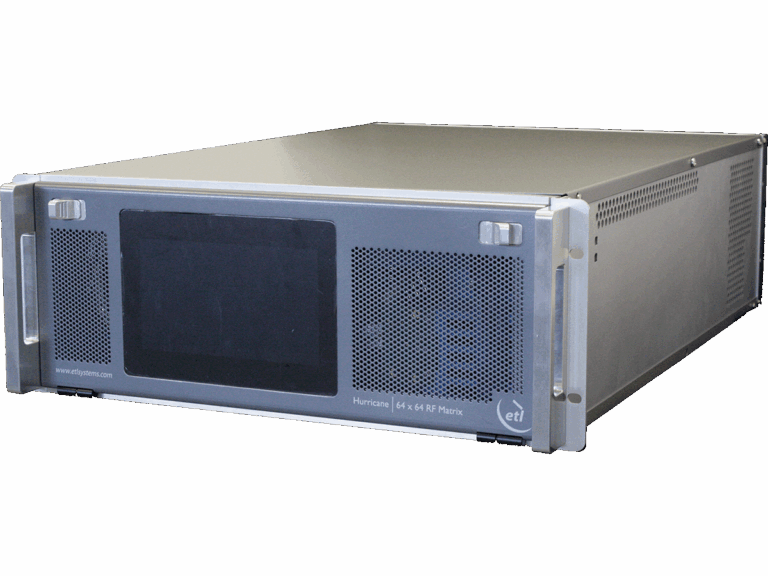

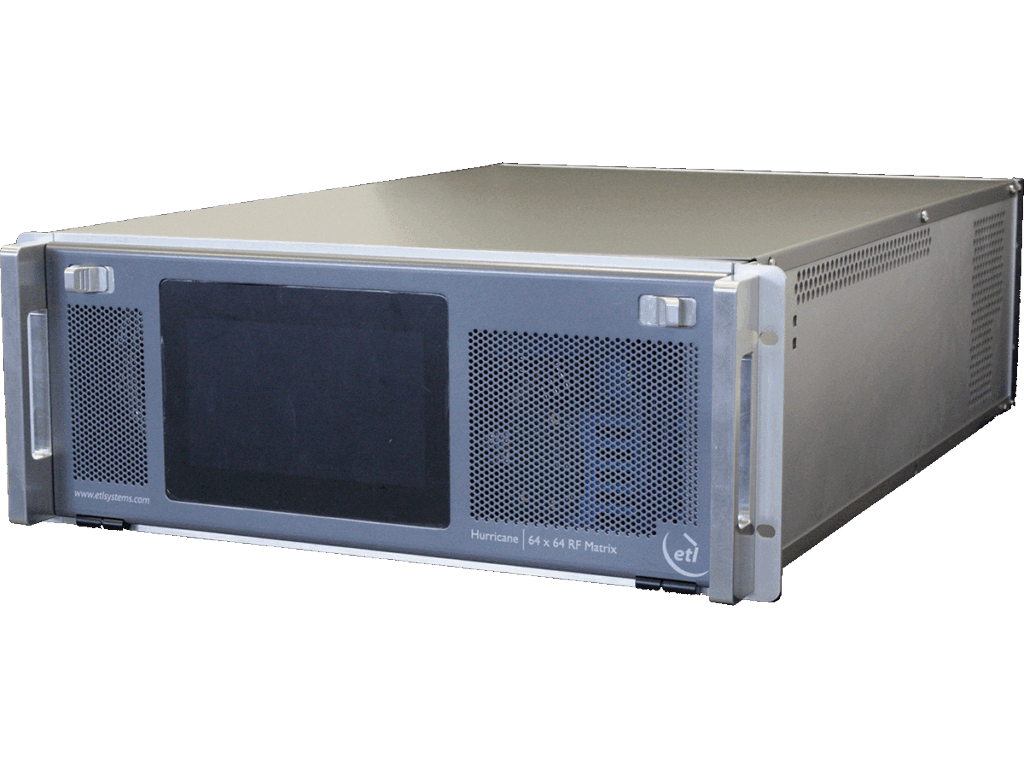

The HURRICANE 64x64 distributive matrix offers an 850-2450MHz extended L-band range and is ultra-configurable.

1 15

Model	HURRICANE 64x64 distributive matrix
Frequency Range	850-2450 MHz extended L-band
Type	Matrices
Band	L-band
Application	Downlink
Unit Type	Indoor unit
Capacity	64 inputs x 64 outputs
Dimensions	4U high x 650 mm deep x 19” wide
Mass	40 kg
Humidity	20 to 90% non-condensing
Altitude	10,000ft Above Mean Sea Level
Supply voltage	85-264Vac
Power	500 W
Lifetime	150,000 hours
Max. DC Voltage on IO Ports	48Vdc

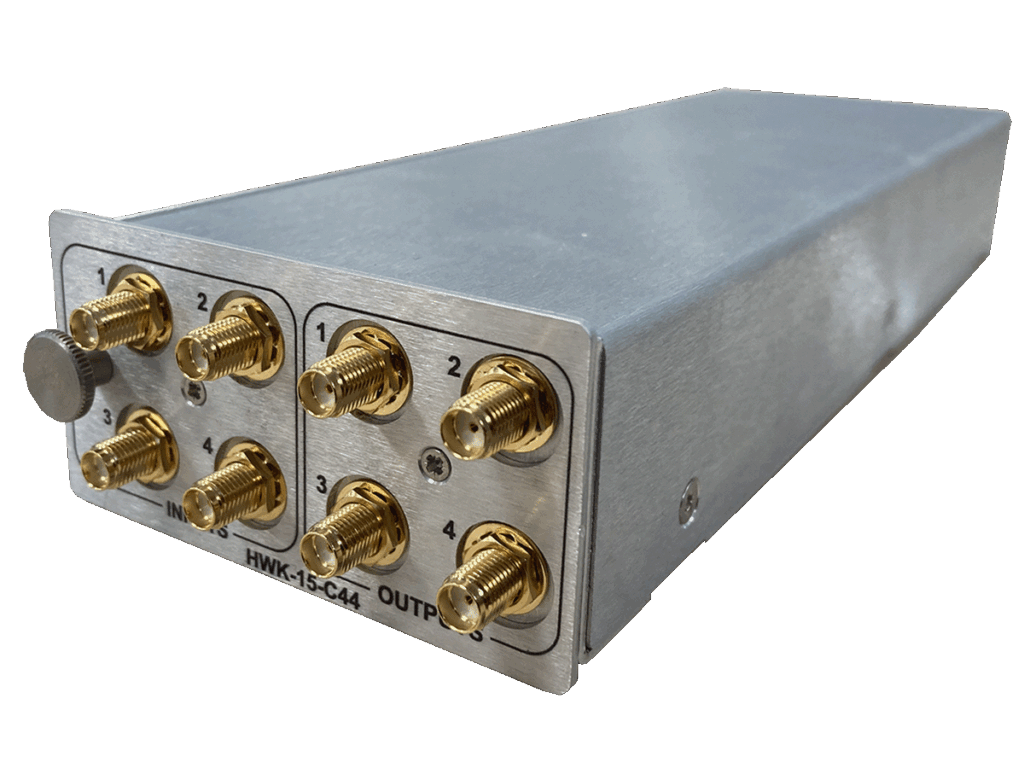

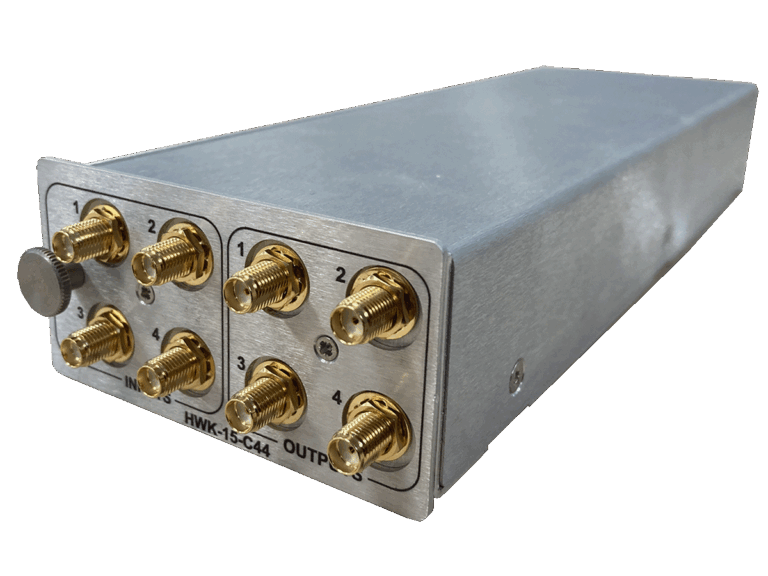

The HAWK 4x4 FIFO matrix module offers a 500-3150MHz extended L-band range with unity gain, designed for critical communications in government and defence applications.

1 17

Routing	FIFO (fan-in fan-out)
Frequency	500 to 2850 MHz
Switching Time	< 50 ms
Power Consumption	<5 W
Gain (Typ., mean across band)	0±1 dB
Gain Flatness (850 - 2450MHz)	±1.5 dB
Gain Flatness (500 - 2850MHz)	±1.75 dB
Gain Flatness (Any 36MHz 500 - 2850MHz)	±0.25 dB
Input Return Loss (Typ.)	14 dB
Input Return Loss (Min.)	10 dB
Output Return Loss (Typ.)	14 dB
Output Return Loss (Min.)	10 dB
Noise Figure (Maximum)	15 dB
1dB GCP (Minimum)	+5 dBm
Group Delay	<1.0 ns
Weight	<0.5 kg
Humidity	20 to 90% non-condensing

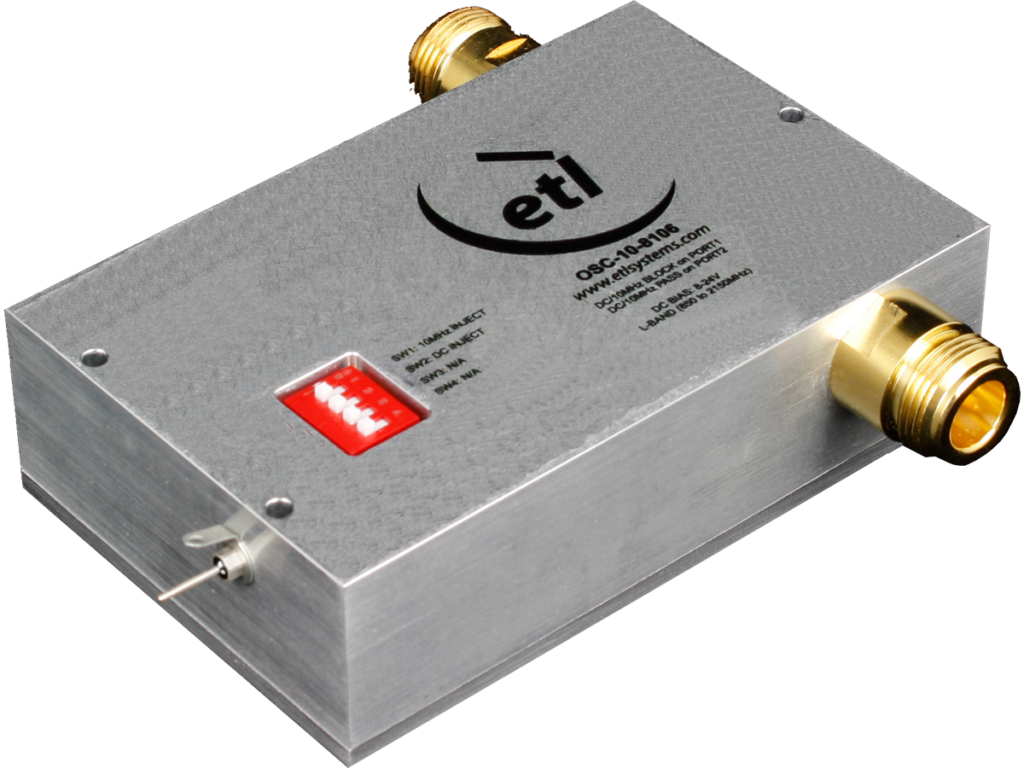

ETL’s RF 10MHz oscillators deliver exceptional frequency stability and reliability, crucial for maintaining accurate reference frequencies over time and varying temperatures.

1 7

Output levels	0, 5 and 10 dBm
Frequency Band (OSC-10-8101, OSC-10-8104, OSC-10-8107, OSC-10-812004)	10 MHz
Frequency Band (OSC-10-8106, OSC-10-8108, OSC-10-8109, OSC-10-8112, OSC-10-81200	L-band
Frequency	10 MHz
Supply voltage	8-24 V
Operating temperature	0°C to +55°C
Storage temperature	-20°C to +75°C

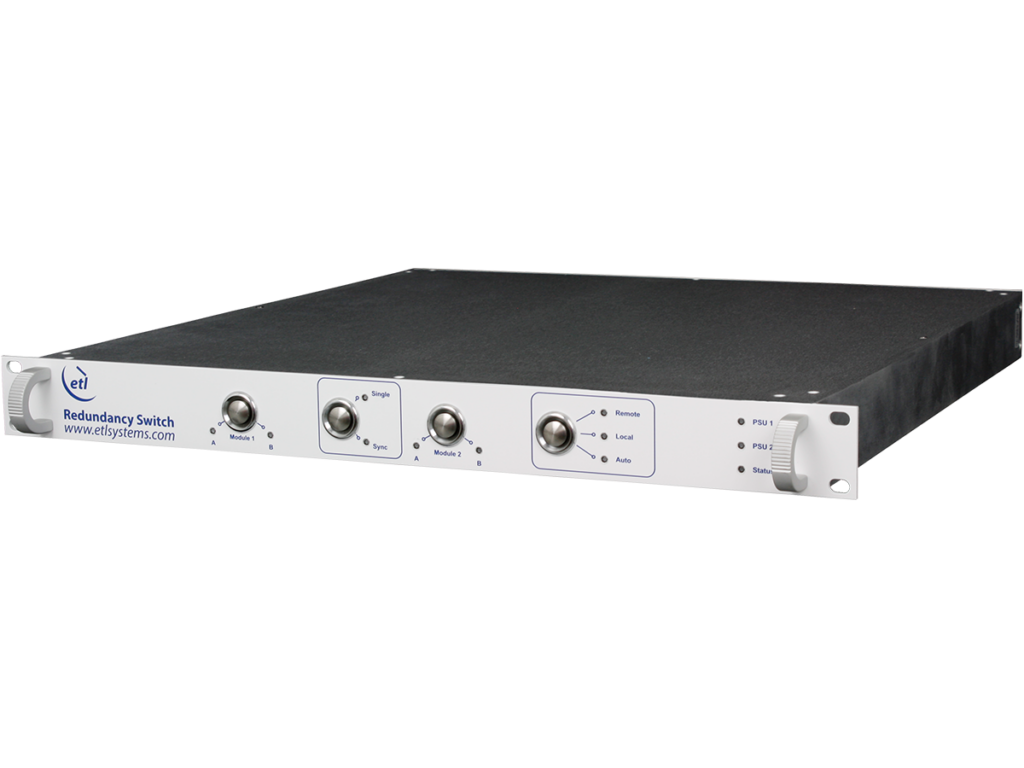

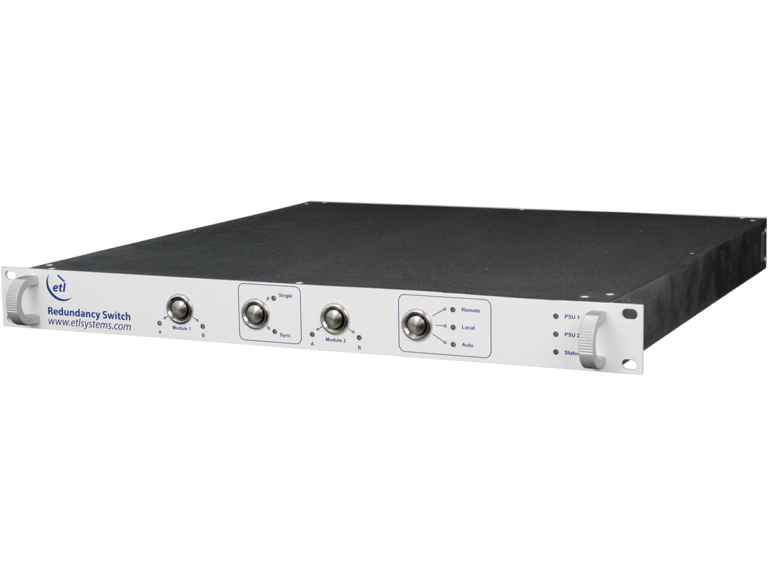

ETL Systems offers a diverse range of RF switches tailored for reliable switching in IF, Broadband, and L-band applications, including redundancy switching for RF, ASI, and optical pathways.

1 15

Wide range	Options up to 1x32 depending on application
Remote M&C	Via RJ45 Ethernet port
Additional features	RF level detection, DC & 10 MHz pass, secure communications protocols (product dependant)
Frequency	50-2450 MHz
Flatness	± 0.8 dB
Isolation (I/P-O/P)	75 dB
Gain	0 dB ± 1.0 dB
Input Return Loss	20 dB typical
Output Return Loss	20 dB typical
Operating temperature	0 to 45 °C
Storage Temperature	-20 °C to +75 °C
Humidity	20-90% non-condensing
Dimensions	1U high x 350 mm deep x 19” wide
Mass	4 kg
Colour	White (RAL 9003 semi-matte)

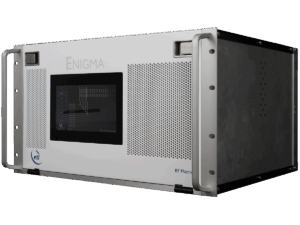

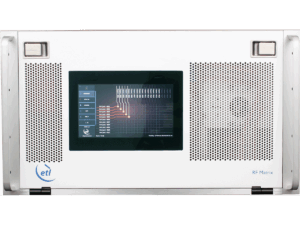

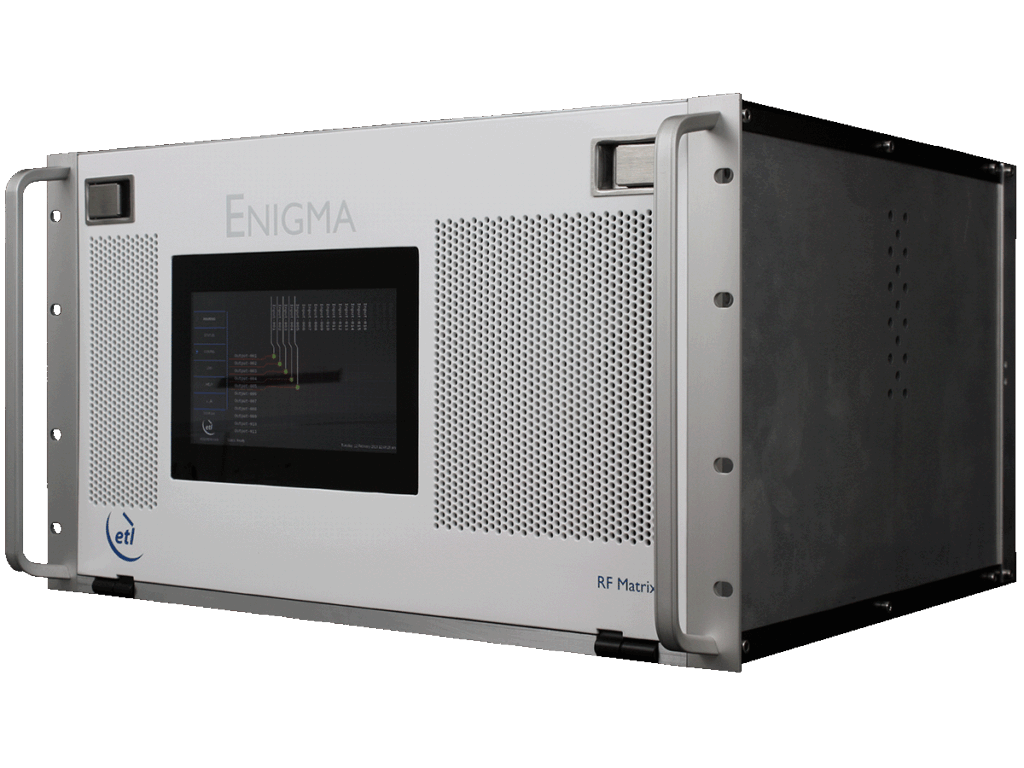

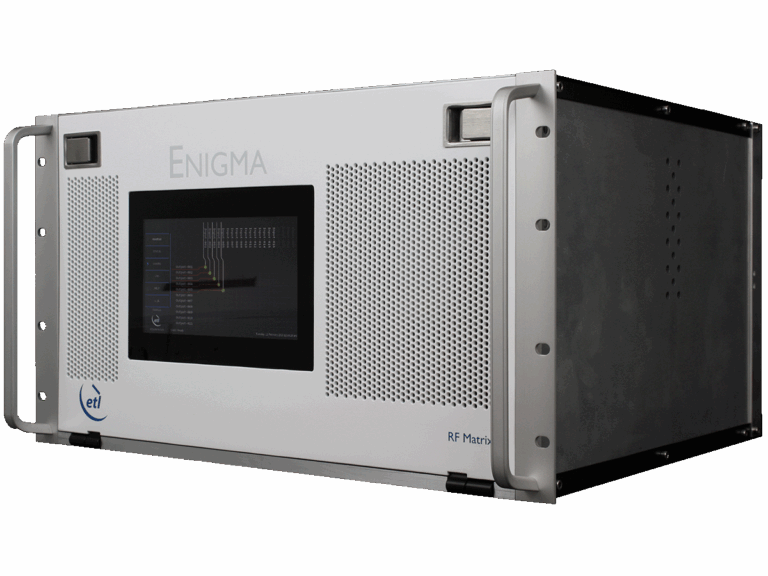

ETL Systems offers an extensive range of RF routers, providing robust RF signal distribution solutions for satellite communications, designed to meet diverse operational needs with precision and reliability.

2 7

Capacity	4x4 to 256x256 and beyond
Frequency Coverage	IF, L and Ka-band ready options
Secure Communications	HTTPS and SNMPv3
Components	Fully hot-swappable RF cards, CPUs, and PSUs
Routing Options	Distributive fan-out, combining fan-in, and FIFO
M&C Capabilities	Local and remote
Scalability	Up to 1024 inputs x 1024 outputs (multi-module systems)

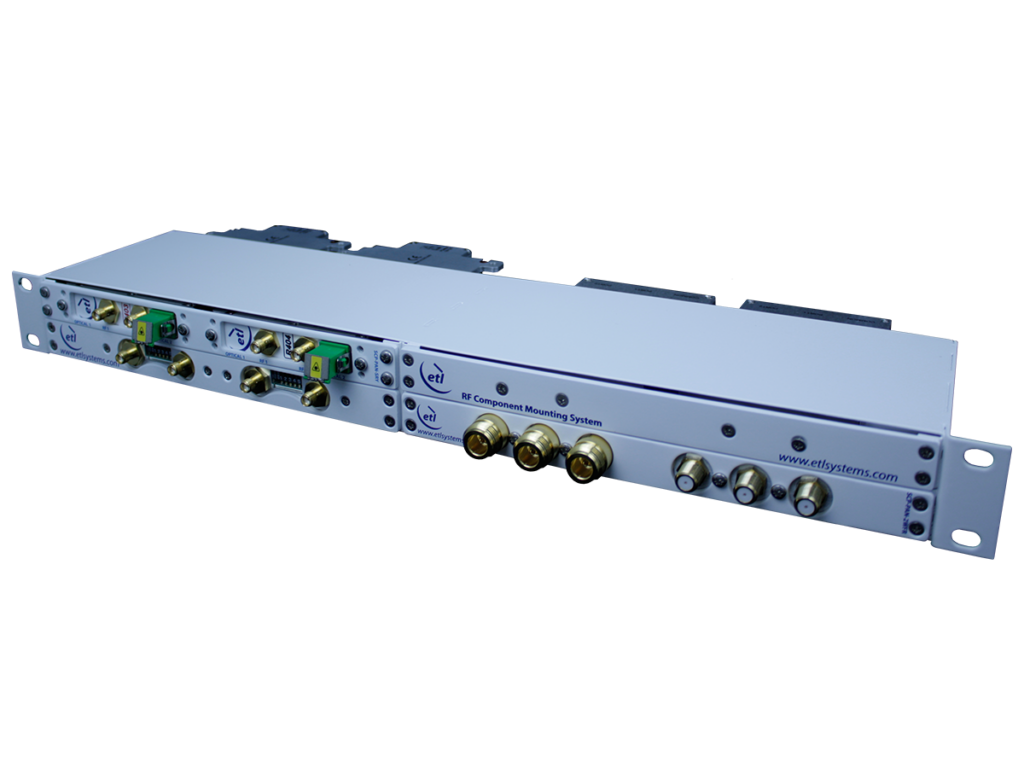

A versatile and compact mounting system for mission-critical RF components, streamlining RF distribution and enhancing system organisation.

1 2

Model Number	SCP-1U-11
Description	1U component mounting 2 mm chassis

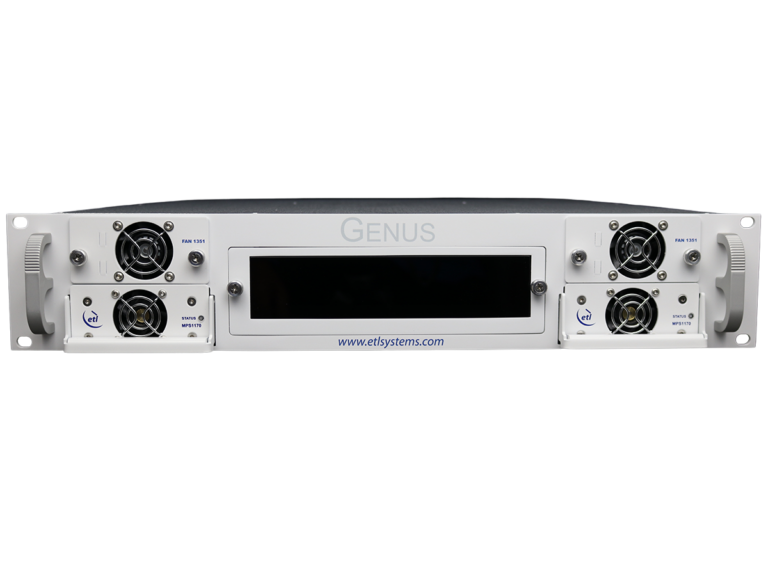

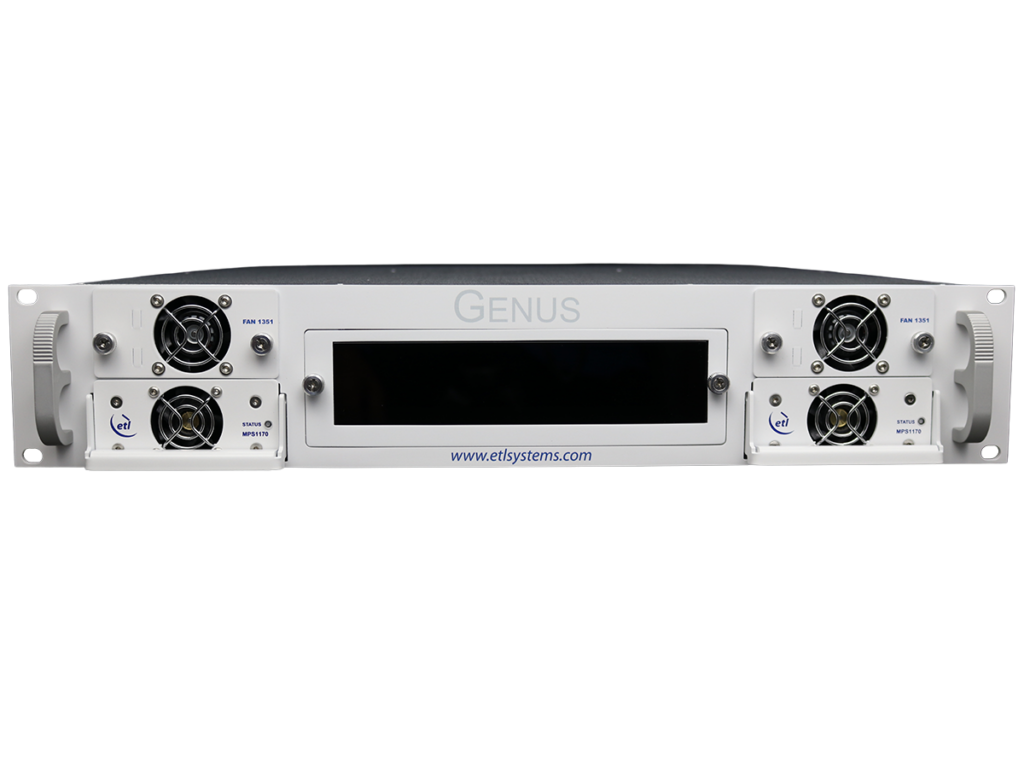

A versatile range of active and passive L-band splitters and combiners offering multiple configurations, flexible form factors, and advanced options for diverse RF distribution needs.

1 18

Frequency Range	10 MHz
Gain	0 dB ± 1.5 dB
Return Loss	18 dB typical, 15 dB minimum
Isolation	17 dB typical, 14 dB minimum
1dB Gain Compression Point	+5 dBm minimum (output power)
Noise Figure	10 dB typical, 12 dB maximum
RF Signal Range	Input: -70 to -10 dBm (total power)
Max RF Input	16 dBm total power
Phase Noise (1Hz)	<-130 dBc/Hz
Phase Noise (10Hz)	<-143 dBc/Hz
Phase Noise (100Hz)	<-153 dBc/Hz
Phase Noise (1kHz)	<-160 dBc/Hz
Power Consumption	<3 W
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +90°C
Humidity	20 to 90% non-condensing
Mass	0.4 kg typical
Dimensions	19 mm Width x 87 mm Height x 225 mm Depth

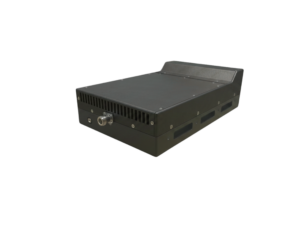

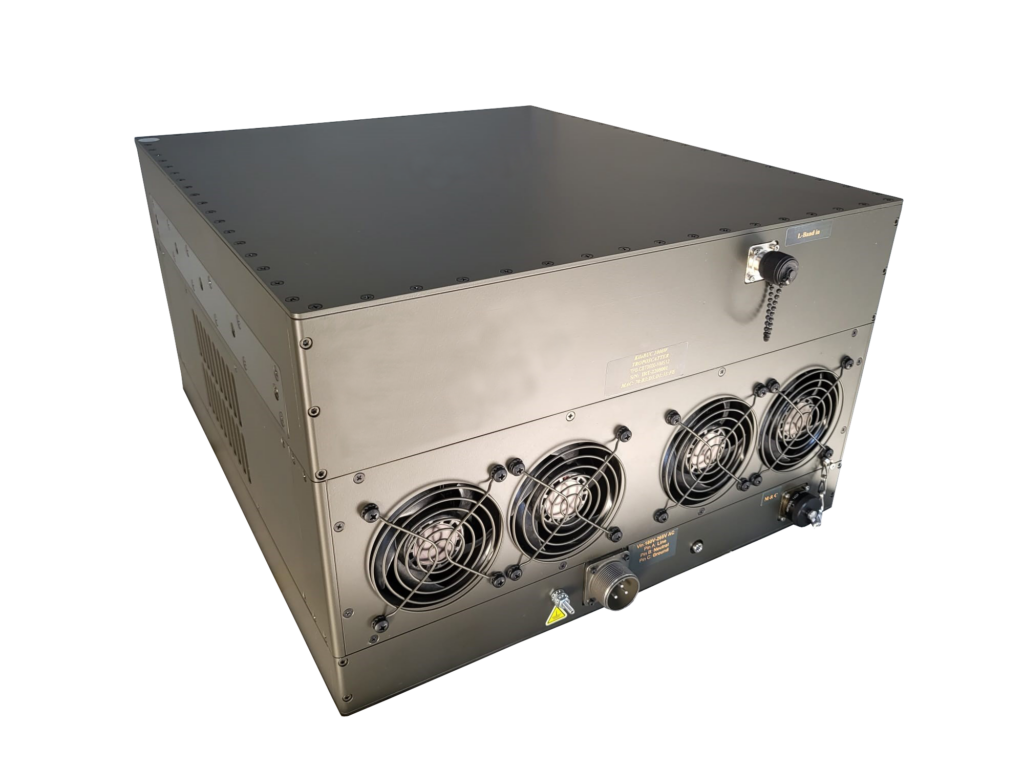

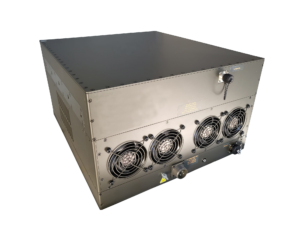

Troposcatter systems bypass the need for satellite links in areas where infrastructure is damaged or non-existent, facilitating secure, reliable communication links that overcome line-of-sight challenges.

2 12

Output Power	20-1000W
High Power BUC/SSPA Output	500-1000W
High Power BUC/SSPA Weight	46KG
High Power BUC/SSPA Dimensions	52x46x27cms
NanoTropo Output Power	40 W
NanoTropo Weight	8 lbs (3.62 kg)
NanoTropo Dimensions	6.25″x7.5″x3.75″ (160 mm x 190 mm x 95 mm)
Phase Noise (High Power)	8-10dB better than IESS308/309
Psat (High Power)	up to 60 dBm
Spurious (High Power)	below –60 dBc
Phase Noise (NanoTropo)	8 dB better than IESS308/309
Linear Power (NanoTropo)	Up to 20 W

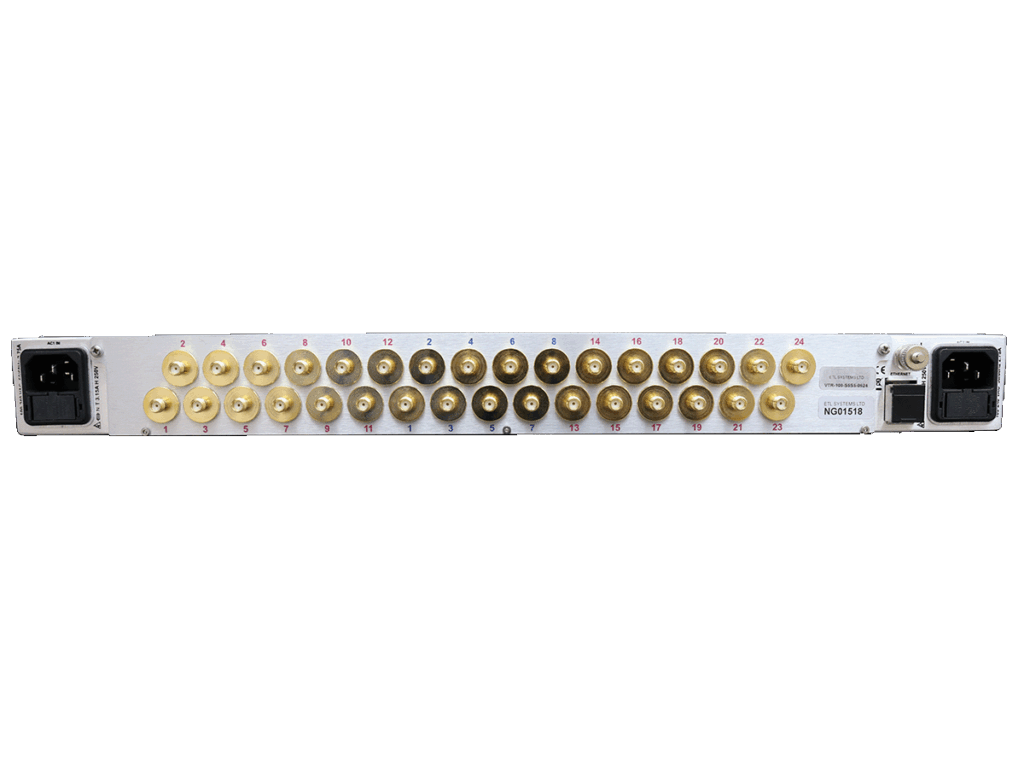

The VICTOR 16x16 distributive matrix offers an 850-2450MHz extended L-band range with variable gain, designed for reliable downlink signal routing in maritime environments.

1 21

Model	VTR-101-1616
Type	VICTOR 16x16 distributive matrix
Frequency Range	850-2450 MHz extended L-band
Features	Variable gain
Application	Downlink
Location	Indoor unit
Switching Time	< 50 ms
Input Return Loss	Min. 14 dB
Output Return Loss	Min. 14 dB
Gain Control	0 to +5 dB
Gain Steps	0.25 dB
Isolation I/P - O/P	60 dB
Isolation I/P - I/P	75 dB
Isolation O/P - O/P	75 dB
Group Delay	≤ 1 ns
Supply voltage	85-264Vac
AC Consumption	20 W
MTBF Chassis	> 250,000
MTBF Matrix card	> 100,000
Dimensions	1U high x 650 mm deep x 19" wide
Mass	10 kg
