Scalable shock-free microsatellite separation system for 10–500 kg satellites; 30 missions, 244 microsats flown.

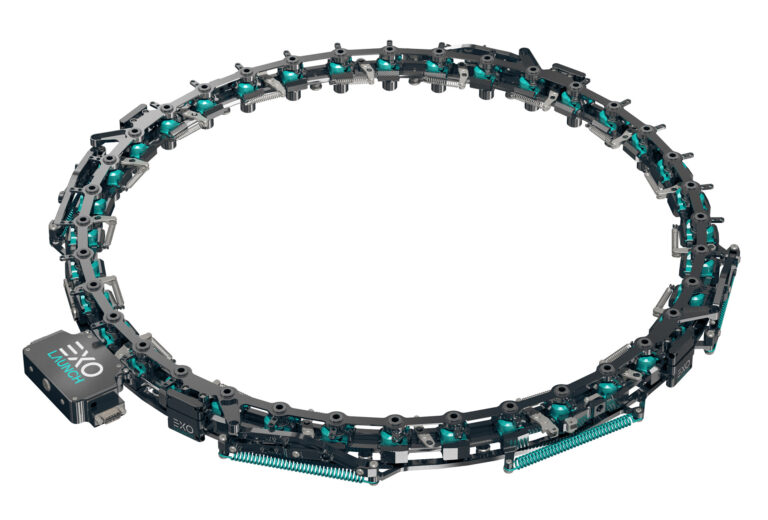

CarboNIX
Scalable shock-free microsatellite separation system for 10–500 kg satellites; 30 missions, 244 microsats flown.
Description

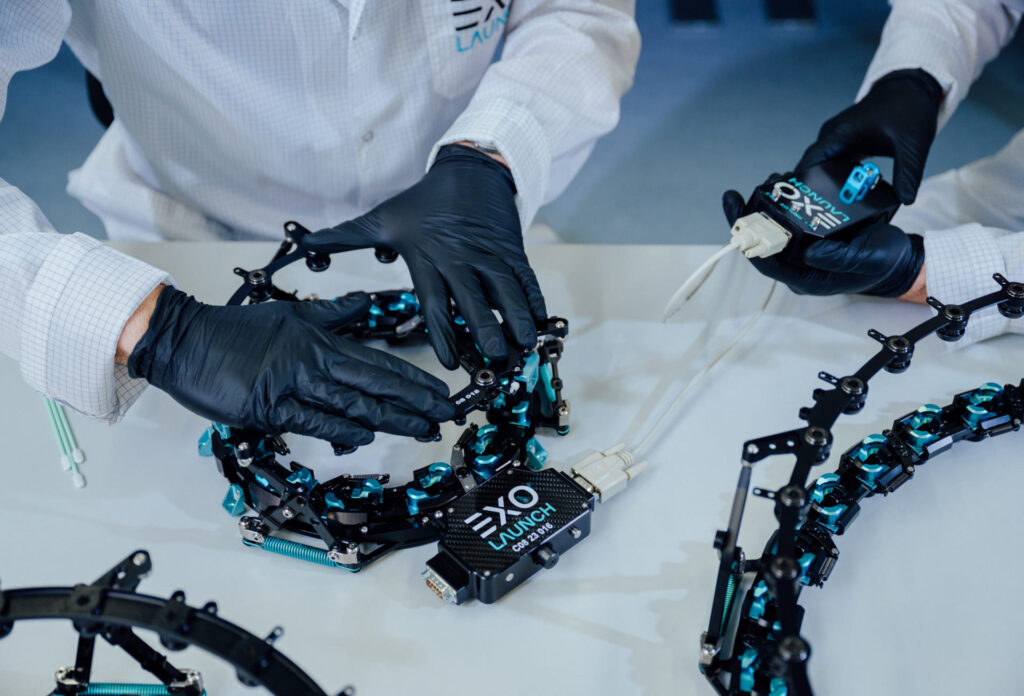

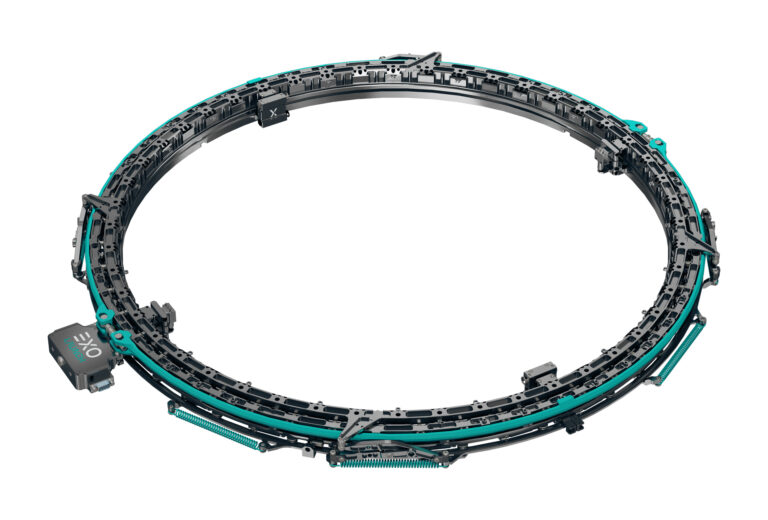

CarboNIX is a scalable shock-free separation system for microsatellites weighing between 10 and 500 kg. Available in 8", 11.732", 15", 18.25", 24" and custom diameter sizes, CarboNIX's patented synchronous spring pusher system deploys satellites smoothly and evenly with no unnecessary shocks or tumbling, minimizing risk of damage to sensitive optical payloads and electronic components. It is the lowest-shock and lowest-tumbling separation system ever deployed in space.
The flyaway mass is half that of comparable separation systems. The fast reset time allows rapid re-integration between missions. All products are ITAR-free and manufactured in Germany.
Flight heritage: first launched in 2019. 30 missions flown, 244 microsatellites deployed. Over 95% customer return rate.
Specifications
| Satellite mass range | 10–500 kg |
|---|---|
| Available diameters | 8", 11.732", 15", 18.25", 24" (custom available) |
| Tumbling rate post-release | < 1°/sec on all three axes |
| Deployment type | Entirely shock-free, linear |
| Flyaway mass | Half that of comparable separation systems |
| ITAR status | ITAR-Free |
| Manufacturing | Made in Germany |
| Flight heritage | Since 2019, 30 missions, 244 microsats |
