EXOport
Exolaunch
Multi-satellite adapter mounting a full smallsat cluster on a single 15" or 24" ESPA/SpaceX Dispenser Ring port; 8 missions flown.
Typed specifications7 values
Discloses 2 of 14 fields engineers filter by in this category (category median 1).
- Export status
- ITAR-free EXOport is not subject to export restrictions of any kind · datasheet p.2
- Interface diameter
- 381 mm single 15" ESPA or Dispenser Ring port · datasheet p.2 609.6 mm single 24" ESPA or Dispenser Ring port
- Flight heritage
- FLIGHT HERITAGE SINCE 2021 - 8 missions, 20 EXOports flown datasheet p.2
- Satellite class
- CubeSat cubesats loaded into EXOpod deployers · datasheet p.2
- Missions flown
- 8 missions · datasheet p.2
- Launch vehicles
- any launch vehicle can be adapted to all launch vehicle requirements · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Interface ports
- 15" or 24" ESPA / SpaceX Dispenser Ring
- Compatible separators
- CarboNIX 8", 15", 18.25", 24"
- Compatible deployers
- EXOpod Nova, EXOpod AIR
- CUBESAT range
- 0.25U and above
- Microsat range
- Up to 500 kg
- Configurations
- Jupiter, Neptune, Europa, Atlas
- Flight heritage
- 8 missions, 20 EXOports flown, since Jan 2021
About

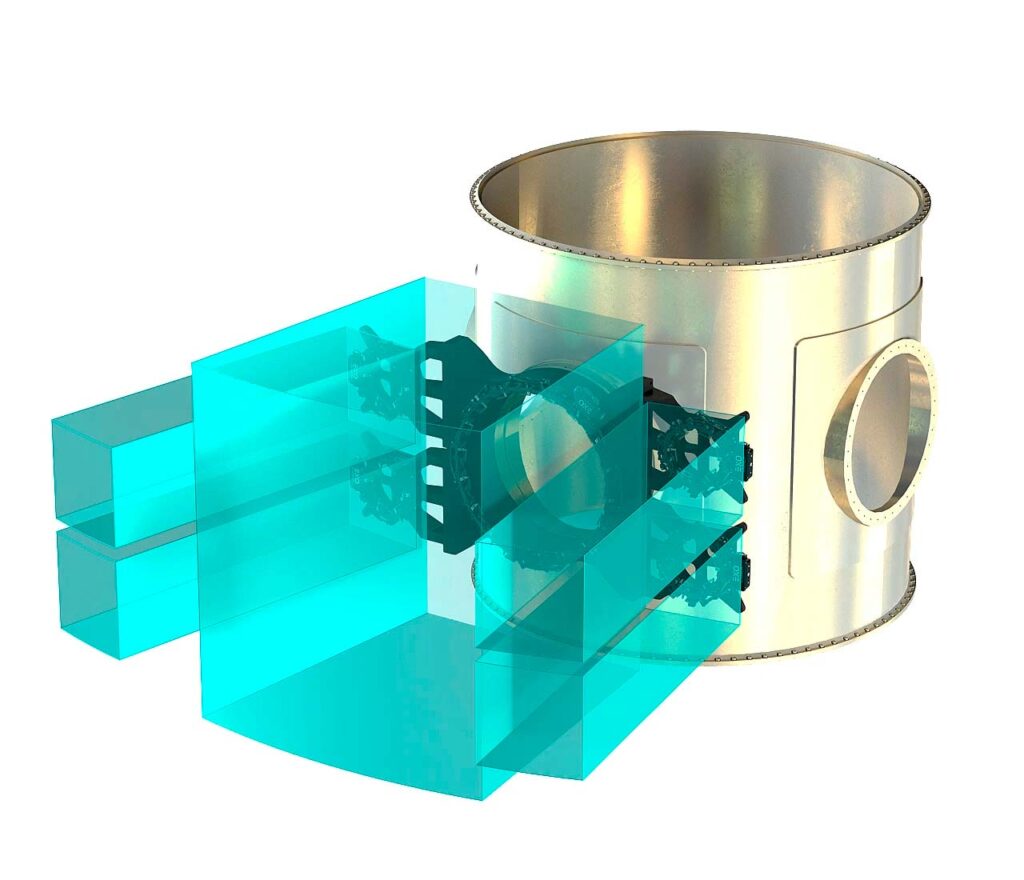

EXOport adapters enable an entire smallsat cluster to be mounted on a single 15″ or 24″ ESPA or SpaceX Dispenser Ring port. Available in many configurations — Jupiter, Neptune, Europa, and Atlas — allowing clusters assembled from microsatellites loaded onto CarboNIX separators and CubeSats in EXOpod deployers.
EXOport has flown on every SpaceX Transporter rideshare mission since January 2021, meeting all SpaceX requirements. It accommodates satellites from 0.25U CubeSats up to 500 kg microsatellites. ITAR-free and manufactured in Germany.
Flight heritage: 8 missions, 20 EXOports flown. Compatible with CarboNIX separation systems (8″, 15″, 18.25″, 24″) and EXOpod deployers.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
