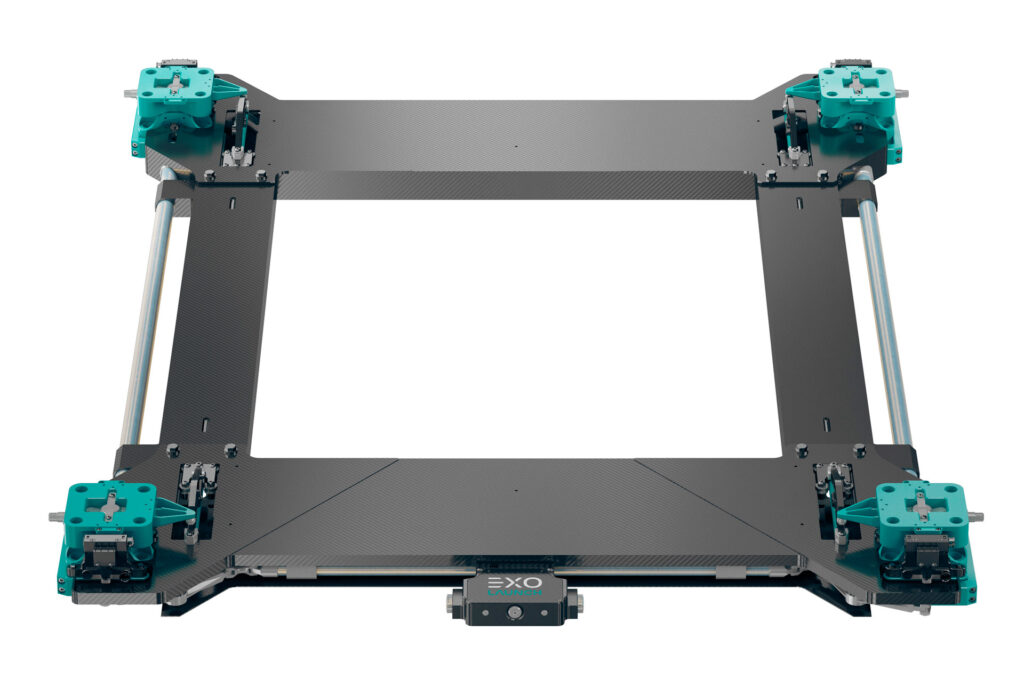

Quadro Versa
Exolaunch
Scalable four-point separation system for satellites up to 1000 kg+ on SpaceX Rideshare plates, 24"×24" to 40"×40".
Typed specifications108 values
Discloses 8 of 14 fields engineers filter by in this category (category median 1).
- Mass
- 11.6 kg L-Adapter, Size 24x16 · datasheet p.14 12.4 kg L-Adapter, Size 24x20 | 13.1 kg L-Adapter, Size 24x24 | 13.9 kg L-Adapter, Size 24x28 | 14.6 kg L-Adapter, Size 24x32 +69
- Preload / holding force
- 44 kN Maximum Axial Force · datasheet p.19 37 kN Maximum Shear Force | 44 kN max · Axial
- Envelope (L×W×H)
- 24"×24" to 40"×40" (scalable) product page
- Release time
- 100 ms Average Separation Time · datasheet p.4
- Supply voltage
- 28 V nom. · Nominal Separation Signal · datasheet p.4
- Operating temperature
- -34 °C min · datasheet p.4 79 °C max | -34–79 °C operating limits
- Export status
- ITAR-free datasheet p.6 not controlled not subject to export restrictions of any kind
- Separation type
- other four-point hold-down and release mechanism (HDRM) with redund… · datasheet p.6 other no pyrotechnics
- Number of bolts or points
- 4 four-point system, four HDRMs · datasheet p.7 16 number of fasteners
- Max spacecraft mass
- 1 000 kg datasheet p.6 1 000 kg max · tailored interface sizing to satellites weighing up to 1000 k…
- Tip-off rate
- 0.6 °/s average tip-off rate in all three axes (CarboNIX pusher arm s… · datasheet p.6
- Release command type
- voltage pulse deploy command opens the redundant magnetic locks, 28VDC for … · datasheet p.4
- Release actuator voltage
- 28 V Nominal Separation Signal · datasheet p.4 28 V nom. · nominal separation signal
- Command pulse duration
- 500 ms Nominal Separation Signal · datasheet p.4 500 ms 28VDC for 0.5s
- Connector
- DSub-9 connector (same connector used for the deploy command and telemetry) datasheet p.11
- Survival temperature
- -55 °C min · datasheet p.4 130 °C max | -55–130 °C survival limits
- Flight heritage
- Critical subsystems like lock mechanism and pusher arms have flight heritage across dozens of missions. datasheet p.6
- Satellite class
- microsat 10-100 kg datasheet p.6 smallsat 100-500 kg
- Separation switches, count
- 2 two internal telemetry switches (synchronization mechanism op… · datasheet p.11
- Release command (as printed)
- 28VDC for 0.5s (nominal separation signal) datasheet p.4
- Max bending moment
- 1 200 N·m per HDRM · datasheet p.4 1 200 N·m
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Satellite mass range
- Up to 1000 kg (and beyond)
- Separation points
- 4
- Size range
- 24"×24" to 40"×40" (scalable)
- Tip-off rate
- Average 0.6°/s on all three axes
- Deployment type
- Shock-free, no pyrotechnics
- Actuation
- Single signal releases all 4 points simultaneously
- Interface compatibility
- SpaceX Rideshare four-point compatible
- ITAR status
- ITAR-Free
- Manufacturing
- Made in Germany
- First flight
- H1 2026
About
Quadro Versa expands Exolaunch’s microsatellite separation systems with a four-point offering tailored to satellites weighing up to 1000 kg on SpaceX Rideshare plates. Designed for compatibility with SpaceX four-point interfaces, it is easily scalable from 24″×24″ up to 40″×40″ and can serve satellites over 1000 kg with larger footprints.
Quadro Versa offers unrivaled strength, stiffness, and reliability for four-point satellites of any size. A single deploy signal simultaneously releases all four mechanical locks, producing an average tip-off rate of 0.6°/s on all three axes. Deployment is entirely shock-free with no pyrotechnics.
The lock mechanism and pusher arms carry the full Quadro Arrow flight heritage. ITAR-free, made in Germany. First flight: H1 2026.
Documentation
- Quadro_Versa_User_Manual_August_2025.pdf 5.9 MB
- Quadro_Versa_User_Manual_August_2025.pdf PDF source: exolaunch.com ↗
- 15_10_25_Quadro_Versa_Brochure.pdf PDF source: exolaunch.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
