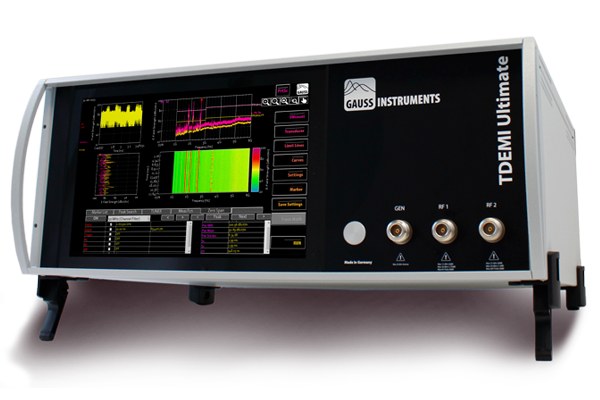

TDEMI ULTRA
Ultra-high-performance real-time EMI/EMC receiver and measurement system covering DC to 40 GHz with a 685 MHz instantaneous bandwidth, combining spectrum analyzer, real-time spectrum analyzer, time-domain and FFT-based receiver modes in one instrument.
Description
The TDEMI ULTRA is the flagship real-time EMI receiver series from GAUSS INSTRUMENTS, released in early 2018 and based on the company's patented TDEMI Technology, which combines time-domain and FFT-based measurement techniques with superheterodyne technology in a massively parallel topology. It covers the full frequency range from DC to 40 GHz within a single, fully integrated instrument that provides a spectrum analyzer, a real-time spectrum analyzer, a time-domain measurement mode, a fully gapless real-time spectrogram mode, a stepped scan receiver, and an FFT-based receiver. It offers an instantaneous (real-time) analysis bandwidth of 685 MHz, described as the fastest stepped scan and fastest FFT-based receiver performance available, with the lowest noise floor in its class. All operation modes are fully compliant with CISPR 16-1-1 and ANSI C63.2, allowing use for testing to civil standards (CISPR, EN, FCC Part 15, ANSI C63.4), military standards (MIL-461G and prior revisions), avionic standards (DO-160), and custom OEM standards. The system supports automated conducted emission measurements (with remote-controlled LISN and automatic phase measurement), automated real-time disturbance power measurement using an absorber clamp, full quasi-peak characterization up to 1 GHz measured in real-time across up to 64,000 frequencies in parallel, and MultiGHz real-time scanning for radiated emission measurements above 1 GHz with continuous turntable rotation and max-hold, reducing overall test time by up to a factor of 20 versus conventional heterodyne receivers. It includes an automated report generator, storable/recallable complete test setups (limit lines, transducers, settings), and 2D/3D radiation pattern visualization. Hardware uses ultra-high-speed analog-to-digital converters on impedance-controlled multi-layer PCBs (up to 12 layers) in precision-machined single-piece aluminium enclosures for heat dissipation and long-term stability, with RF front-end circuits built on thin-film substrates and bare-die MMICs in gold-plated brass enclosures for performance up to 26.5 GHz. Full automation software packages are available. Made in Germany by GAUSS INSTRUMENTS, founded 2007.
Specifications
| Frequency range | DC to 40 GHz |
|---|---|
| Instantaneous (real-time) bandwidth | 685 MHz |
| Real-time disturbance power measurement span | up to 300 MHz |
| Quasi-peak parallel frequencies | up to 64,000 frequencies in parallel |
| Quasi-peak characterization range | up to 1 GHz |
| Pre-selection filter loss (up to 26.5 GHz) | less than 1 dB |
| Compliance | CISPR 16-1-1, ANSI C63.2 |
| Applicable test standards | CISPR, EN, FCC Part 15, ANSI C63.4 (civil); MIL-461G and previous versions/revisions (military); DO-160 (avionic); OEM standards |
| Operation modes | Spectrum analyzer, real-time spectrum analyzer, time-domain mode, gapless real-time spectrogram mode, stepped scan receiver, FFT-based receiver |
| Radiated emission speed improvement (>1 GHz) | approx. factor of 20 vs. conventional heterodyne receiver with 10° turntable steps |
| Enclosure construction | Machined from a single piece of aluminium; RF circuit enclosures made of gold-plated brass |
| Multi-layer PCB technology | Impedance controlled, up to 12 layers |
