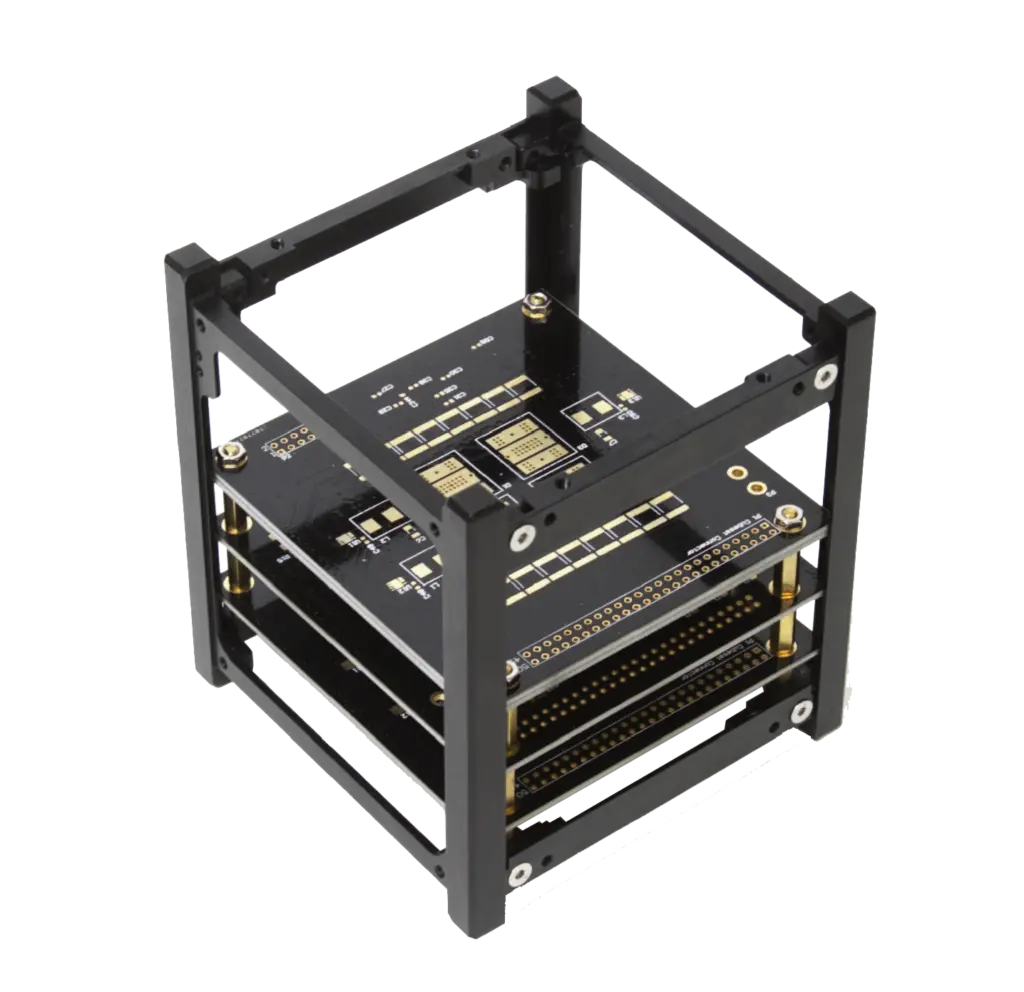

1U Cubesat Structure
Aphelion Orbitals

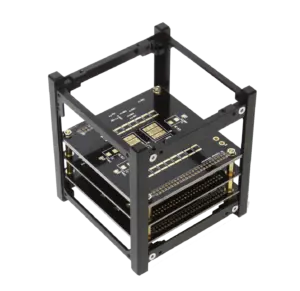

The Aphelion 1U structure is an open frame, lightweight CubeSat structure made from 7075 aluminum, designed for easy configuration and access during development.
Typed specifications2 values
Discloses 1 of 11 fields engineers filter by in this category (category median 1).
- Mass
- 92 g product page
- Material (as printed)
- 7075-T651 product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Height
- 113.5 mm
- Width
- 100 mm
- Depth
- 100 mm
- Material
- 7075-T651
- Mass
- 92 g
- Max PCB width
- 96 mm
- Max PCB length
- 96 mm
About
The Aphelion 1U structure is an open frame, lightweight structure developed in accordance with the CubeSat standard. Constructed from 7075 aluminum, it offers strength and high adaptability, allowing users to freely configure its internal components and side access ports. This design also facilitates easy access during the development phase. Alternate configurations and custom side panels are available upon request, providing flexibility for various mission requirements.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
