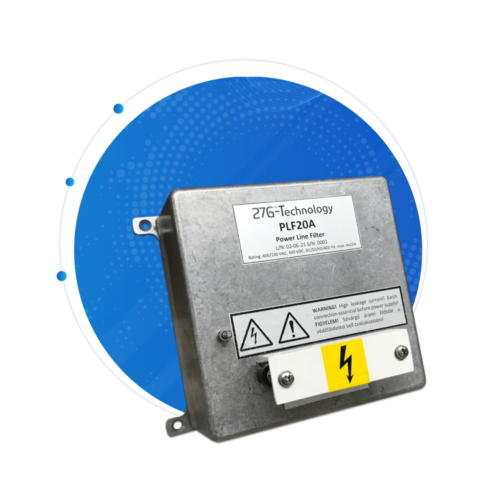

27G PLF20A EMC Power Line Filter
27G Technology
Advanced power-line EMC filter for shielded rooms, EMC labs, and server rooms — stops electrical disturbances and information leakage.
Key figurescomparable across the catalogue
- Largest dimension
- 145 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Dimensions
- 145 × 120.5 × 114.5 mm
- Configurations
- Three-phase / dual single-phase / 50 A single-phase / DC
- Mounting
- Wall mount
- Protection
- Lightning strike and voltage surge
- Insertion loss
- Low
- Attenuation
- Exceptional (unwanted signal suppression)
- Testing
- Individual electrical testing with unique test report
- Standards
- ESA/ECSS, MIL
About
The 27G PLF20A is an advanced power line filter designed to stop the propagation of electrical disturbances and information leakage over power lines. It is suitable for shielded rooms, EMC laboratories, server rooms, industrial installations, and other environments requiring strict electromagnetic compatibility.
The PLF20A is available in multiple configurations: three-phase, dual single-phase, double current 50A single phase, and DC variants. Its wall-mountable design allows easy assembly and installation without specialized tooling. Key features include low insertion loss, low power dissipation, wide operational temperature range with low derating, lightning strike and voltage surge protection, and exceptional attenuation of unwanted signals.
Each unit undergoes individual electrical testing with a unique test report provided upon delivery. Full technical documentation including datasheet and application note are available for download from 27G’s website.
