AAC Clyde Space PULSAR-XANT / PULSAR-XANT-PLUS X-Band Antenna
AAC Clyde Space

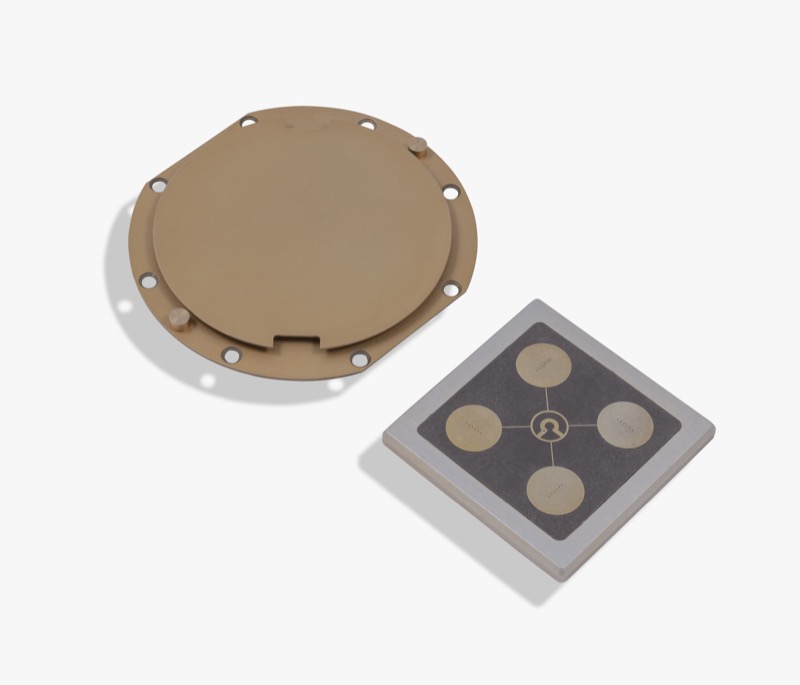

Low-profile X-band patch antenna for CubeSat high-data-rate downlink; base XANT (single patch) and XANT-PLUS (4-patch array, higher gain) variants.
Technical specifications
- Frequency range
- 8.025-8.45 GHz (both variants)
- Bandwidth (XANT)
- 200 MHz
- Bandwidth (XANT-Plus)
- 425 MHz
- Gain (XANT)
- 7.75 dBi ± 0.5 dB
- Gain (XANT-Plus)
- 11.5 dBi ± 0.5 dB
- Mass (XANT)
- < 9 g
- Mass (XANT-Plus)
- < 29 g
- Axial ratio (XANT)
- < 3 dB
- Axial ratio (XANT-Plus)
- < 2 dB
- Max RF power (XANT)
- 2 W (33 dBm)
- Max RF power (XANT-Plus)
- 5 W (37 dBm)
- Dimensions (XANT)
- 36 x 4.7 x 36 mm
- Dimensions (XANT-Plus)
- 58 x 4.7 x 58 mm
- Temperature range
- -40°C to +85°C
About
The Pulsar-XANT is a low-profile X-band patch antenna designed for CubeSat missions where a high data rate downlink is required, with insensitivity to ground plane effects simplifying integration while meeting CubeSat height standards. The Pulsar-XANT-Plus variant offers a low-profile array of four X-band patch antennas, maintaining a sub-2dB axial ratio across the entire X-band with options for both LHCP and RHCP polarization, delivering higher gain and bandwidth than the base XANT for missions needing greater downlink performance.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
