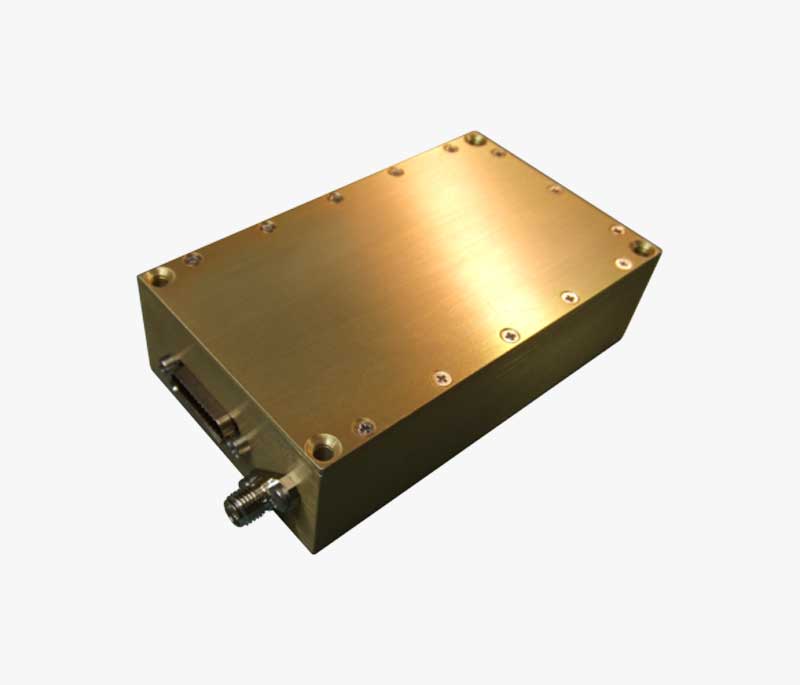

AAC SpaceQuest GNSS-701 / GNSS-702 / GNSS-703 Satellite GNSS Receiver
AAC Clyde Space
Compact satellite GNSS receiver family: GNSS-701 (single-frequency), GNSS-702 (dual-frequency), and GNSS-703 (multi-frequency), with over a decade of flight heritage.
Technical specifications
- TRL
- 9
- Channels
- 120 channel GNSS
- Position accuracy (GNSS-701)
- < 5 m (1.5 m typical)
- Position accuracy (GNSS-702)
- 1.2 m
- Velocity accuracy
- < 0.10 m/s
- Mass
- 188 g (±5 g)
- Dimensions
- 103.51 x 55.88 x 26.98 mm
- Operating temperature
- -40°C to +85°C
- Power consumption
- 0.9-2.2 W (configuration dependent)
- Lead time
- 16 weeks
- GNSS-701 constellations
- GPS, GLONASS, Galileo
- GNSS-702 additional bands
- L2, E5b, B2
- GNSS-703 additional bands
- L5, E5a, AltBOC, B3
About
The GNSS-701 is a compact yet powerful satellite GNSS receiver, an upgraded version of the GPS12-V1/GPS-701 with an improved core and expanded interface capabilities, maintaining over a decade of flight heritage. It determines orbital position, enables orbit manoeuvres, and provides accurate time knowledge for satellites, with flight history on missions including AprizeSats 1-5/8/10, Genesis 1-2 (Bigelow Aerospace), exactView 5-6/11, and FalconSat-5/6. The GNSS-701 (single frequency) tracks GPS, GLONASS, and Galileo with 1.5 m position accuracy and a 40 s cold start. The GNSS-702 (dual frequency) adds L2/E5b/B2 bands for 1.2 m position accuracy. The GNSS-703 (multi-frequency) further adds L5/E5a/AltBOC/B3 bands for the highest accuracy in the family.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
