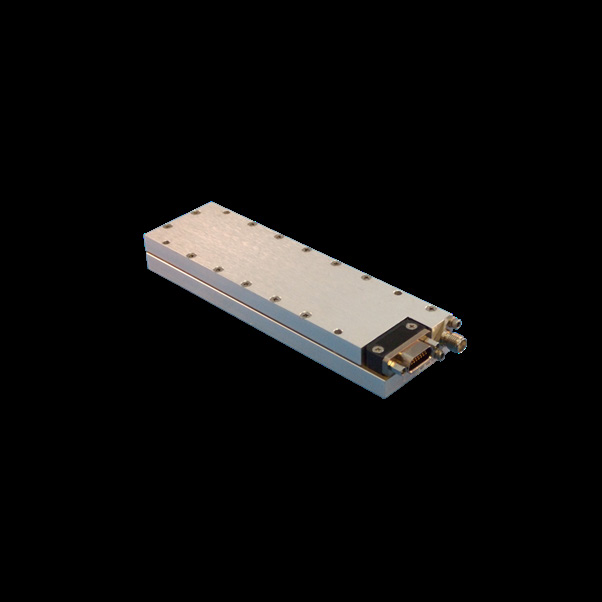

AAC SpaceQuest RX-2000 S-Band Receiver
AAC Clyde Space
Adaptable low-power space-qualified FM S-band receiver for MicroSats and small satellites with up to 26 customer-programmable channels, 30+ years of on-orbit heritage.
Typed specifications38 values
Discloses 6 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- S datasheet p.1
- Mass
- 200 g datasheet p.2
- Frequency range
- 2 000–2 400 MHz datasheet p.2
- Envelope (L×W×H)
- 135 mm x 50 mm x 25 mm datasheet p.2
- Data rate
- 9.6 kbps min · datasheet p.2 153.6 kbps max | 9.6–153.6 kbps
- RX sensitivity
- -117 dBm @ 9600bps · datasheet p.2 -110 dBm @128Kbps | -110 dBm 128Kbps | -117 dBm 9600bps
- Modulation
- FM, GFSK datasheet p.2 other FM | GFSK | other FM, GFSK
- Supply voltage
- 6–16 V datasheet p.2
- Power consumption
- 1.5 W 6 -16 VDC @ 200mA · datasheet p.2
- Data interface
- other Received Data Output · datasheet p.2 other Received Data Output, Recovered Data Clock Output (Differenti… | other Receiver Control Input & Output | other Recovered Data Clock Output (Differential or Single Ended)
- Operating temperature
- -30–75 °C datasheet p.2
- Function
- receiver datasheet p.2
- RF connector
- SMA SMA Female · datasheet p.2
- Connector
- 15 Pin Micro Miniature Military D (data/power) datasheet p.2 15 Pin Micro Miniature Military D Data/Power | SMA Female RF
- Survival temperature
- -40–85 °C datasheet p.2 -40–85 °C Storage Temperature
- Flight heritage
- in operation on-orbit for over 30 years for our own satellite and for a wide range of blue-chip clients around the globe. datasheet p.1
- Satellite class
- microsat 10-100 kg for MicroSats and small satellites · datasheet p.1
- Duplex
- simplex receiver · datasheet p.1
- Frequency tunable in orbit
- yes reconfigure data rates and frequencies on orbit via channel p… · datasheet p.1
- Channel bandwidth
- 100 kHz IF Bandwidth option · datasheet p.2 20 000 kHz Up to 26 Preset Channels with 20 MHz Bandwidth | 150 kHz IF Bandwidth option | 200 kHz IF Bandwidth option
- Noise figure
- 2 dB nom. · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Frequency
- 2000-2400 MHz
- Data rate
- 9.6 to 153.6 kbps
- Modulation
- FM, GFSK
- Sensitivity
- -117 dBm @ 9600 bps, -110 dBm @ 128 kbps
- Noise figure
- 2 dB nominal
- Channels
- Up to 26 preset, 20 MHz bandwidth
- Supply voltage
- 6.0 to 16.0 V
- Power consumption
- 1.5 W (6-16 VDC @ 200 mA)
- Frequency stability
- ±1.5 ppm, -30°C to +75°C
- Mass
- 200 g
- Dimensions
- 135 x 50 x 25 mm
- Operating temperature
- -30°C to +75°C
About
The AAC SpaceQuest RX-2000 is an adaptable low-power S-band transceiver designed to offer high data rates supporting a variety of data interfaces and modulation schemes. It has been in operation on-orbit for over 30 years across AAC SpaceQuest’s own satellites and a wide range of blue-chip clients globally. The transceiver operates on S-band frequencies with GMSK modulation and up to 26 customer-programmable channels with 20 MHz bandwidth. Although not CubeSat Standard, this solution can be used in a CubeSat system design. The receiver generates clock and data output, giving customers flexibility to implement customized or reconfigurable communication protocols on their flight computer or an auxiliary communications processor. Its clam-shell chassis design allows flexibility for spacecraft bus mounting options.
