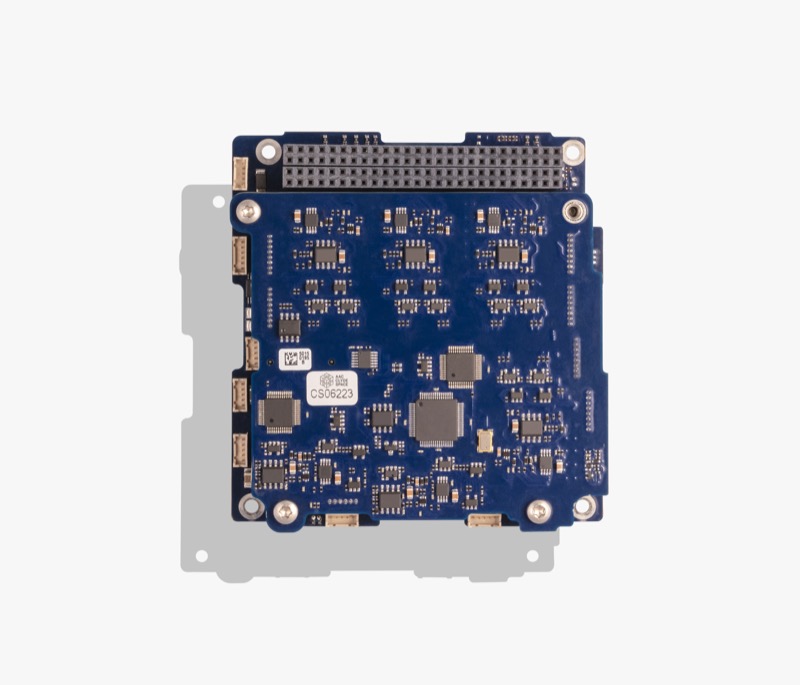

CubeSat EPS – STARBUCK-Nano
AAC Clyde Space
Flight-proven electrical power system for 3U-16U CubeSats featuring Maximum Power Point Tracking and robust reliability with TRL 9 maturity.
Typed specifications35 values
Discloses 7 of 14 fields engineers filter by in this category (category median 7).
- Mass
- 86 g typical · datasheet p.3 86 g typical, NANO | 86 g typ.
- Envelope (L×W×H)
- 95.89 mm x 90.17 mm x 16.2 mm datasheet p.3 95.89 x 90.17 x 16.2 mm length x width x height, NANO
- Outputs (as printed)
- 3.3V, 5V, and 12V datasheet p.2 3.3V, 5V, and 12V
- Supply voltage
- 8.2 V max · Battery · datasheet p.3
- Data interface
- I2C datasheet p.3
- Operating temperature
- -40 °C min · datasheet p.3 85 °C max | -40–85 °C
- Radiation tolerance (TID)
- 10 krad datasheet p.3
- Design lifetime
- 5 years design life in LEO · datasheet p.2 5 years in LEO
- Unit type
- EPS without battery NANO: integrated battery No · datasheet p.2
- Board format
- PC/104 integrated within a single PC104 card · datasheet p.1
- Bus and outputs type
- regulated bus Regulated Power Buses 3.3V, 5V, and 12V · datasheet p.2
- Unregulated (battery) bus voltage
- 8.2 V max · datasheet p.2
- Regulated output voltages
- 3.3 V datasheet p.2 5 V | 12 V
- Switchable outputs
- 10 Latching Current Limiters, configurable · datasheet p.2
- Solar array regulation
- MPPT datasheet p.1
- Protections
- 10 Latching Current Limiters datasheet p.2 over-current (LCL) 10 Configurable Latching Current Limiters | watchdog autonomous protections, watchdogs and failsafe in hardware an… | 10 Configurable Latching Current Limit (LCL)
- Survival temperature
- -50 °C min · datasheet p.3 100 °C max | -50–100 °C storage temperature
- Satellite class
- CubeSat 1U, 2U and 3U CubeSat with body panels · datasheet p.2 CubeSat intended use: 2U and 3U CubeSat with body panels
- Battery voltage range accepted
- 8.2 V max · Max. Battery Voltage · datasheet p.2
- MPPT
- yes Employing Maximum Power Point Tracking · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier22 lines, in the manufacturer's own wording
- Design life
- 5 years in LEO
- Regulated power buses
- 3.3 V; 5 V; and 12 V
- Latching current limit (LCL)
- 10 Configurable
- Interfaces
- I2C
- Max. battery voltage
- 8.2 V
- Operating temperature
- -40°C to 85°C
- Storage temperature
- -50°C to 100°C
- Vacuum
- 10⁻⁵ torr
- Radiation tolerance
- 10 KRad
- Vibration
- To [RD-3]
- Nano - intended use
- 2U and 3U CubeSat with body panels
- Nano - mass (typical)
- 86 g
- Nano - length
- 95.89 mm
- Nano - width
- 90.17 mm
- Nano - height
- 16.2 mm
- Nano-plus - intended use
- 3-12U CubeSat with deployable panels
- Nano-plus - mass (typical)
- 148 g
- Nano-plus - length
- 95.89 mm
- Nano-plus - width
- 90.17 mm
- Nano-plus - height
- 20.82 mm
- Nano - integrated battery
- No
- Nano-plus - integrated battery
- No
About
The STARBUCK-NANO is a CubeSat Power Control and Distribution Unit designed for 2U and 3U CubeSats with body-mounted solar panels. The STARBUCK-NANO PLUS supports high-power CubeSats from 3U with deployable panels up to 12U missions. Features include 8.2V max power voltage, regulated 3.3V, 5V, and 12V power buses, 10 Latching Current Limiters, Maximum Power Point Tracking for efficient solar array power generation, analog components with multiple inbuilt protection methods, and full EPS telemetry via I2C network. Compatible with AAC Clyde Space PHOTON solar panels and OPTIMUS battery ranges, meeting ISS Crewed Flight design requirements. The system provides autonomous protections, watchdogs, and failsafes in both hardware and firmware for mission assurance.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
