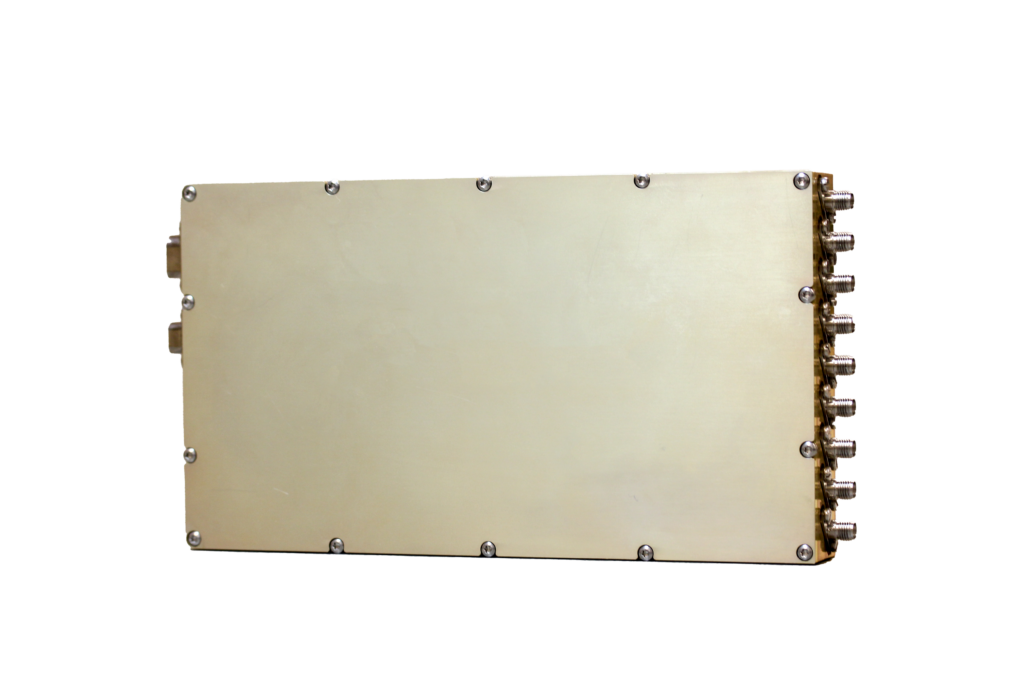

FFT2G
AAC Clyde Space
The FFT2G is a customisable 2nd-generation FFT spectrometer for ground-based radio astronomy, offering high bandwidth and high resolution spectral analysis.
Key figurescomparable across the catalogue
- Mass
- 0.75 kg
- Power
- 40 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Outer dimensions
- 220 x 115 x 25 mm
- Mass
- 750 g
- Power consumption (w) (Typ)
- 40
- Supply voltage (v) (Typ)
- 12
- General purpose IO voltage (v) (Min/Typ/Max)
- 0 / 3.3 / 5
- Usb2.0 data (mbit/s) (Typ)
- 480
- If inputs (Min/Max)
- 1 / 8
- If input full scale power (dbm) (Typ)
- -3
- If bandwidth (mhz) (Max)
- 5000
- Sampling frequency (mhz) (Max)
- 10000
- Sampling ADC resolution (bits) (Typ)
- 10
- Fft frequency resolution (channels) (Max)
- 32768
- Fft channel resolution (bits) (Typ)
- 32
- Fft integration time (s) (Min/Max)
- 0.1 / 10
- Firmware part id 126
- Mode: IQ, Description: 1 x 5000 MHz, 16384 channels
- Firmware part id 235
- Mode: IQ, Description: 1 x 5000 MHz, 16384 channels, polyphase
- Firmware part id 277
- Mode: Real, Description: 2 x 2500 MHz, 8192 channels
- Firmware part id 766
- Mode: Real, Description: 1 x 2500 MHz, 32768 channels
- Firmware part id 3978
- Mode: Real, Description: 2 x 1250 MHz, 16384 channels
- Firmware part id 4050
- Mode: Real, Description: 4 x 1250 MHz, 4096 channels
- Firmware part id 4070
- Mode: Real, Description: 8 x 650 MHz, 2048 channels
About
The FFT2G (Fast Fourier Transform 2nd Generation) spectrometer is a customisable spectrum analysing device designed and built by AAC Omnisys for ground-based applications, specifically radio astronomy. It is robust and reliable, with a configurable signal processing Field Programmable Gate Array (FPGA) as a core feature. The FPGA controls a dual multi-core high-speed analogue-to-digital converter and computes the FFT power spectrums, allowing an indefinite variety of options and features to be added. Each module processes up to eight input signals with a bandwidth of 125 MHz across 8192 spectral channels, and offers an impressive 5000 MHz instantaneous bandwidth sampled by high-speed ADCs and processed by a real-time pipelined and parallel FFT-core. The spectrometer provides 32-bit fine power amplitude resolution for all frequency channels, accumulated during the FFT integration time. It can be used as a stand-alone backend measurement device in a laboratory environment, or built into a larger system with multiple modules to further increase bandwidth and resolution, coping with multi-pixel frontend designs. Key features include up to 8 input channels, input bandwidth up to 5000 MHz, FFT frequency resolution up to 32k channels, a single 12 V supply voltage, and power consumption under 40 W. Several off-the-shelf firmware configurations are available, offering different combinations of input count, bandwidth, and channel resolution, including IQ and Real modes.
