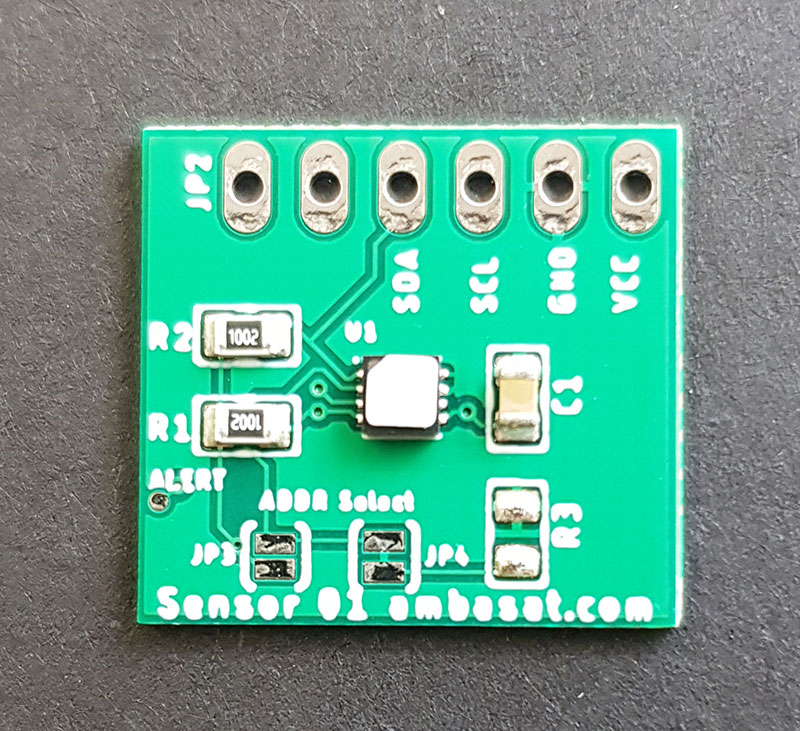

AmbaSat-1 Sensor 01
AmbaSat
The AmbaSat-1 Sensor 01 is a humidity and temperature sensor board designed to integrate with the AmbaSat-1 main satellite board via an I2C interface.
Technical specifications
- Humidity accuracy
- 1.5 %RH
- Temperature accuracy
- 0.1 °C
- Interface
- I2C
- Communication speed
- up to 1MHz
- Package
- 8-Pin DFN
About
The AmbaSat-1 Sensor 01 pack includes the SHT30-DIS-F2.5KS sensor, the AmbaSat-1 Sensor board, and all other necessary components such as resistors and capacitors. This sensor provides best-in-class humidity and temperature measurements. It features a fully calibrated, linearized, and temperature-compensated digital output. The sensor operates with a wide supply voltage range and utilizes an I2C interface, supporting communication speeds up to 1MHz. It also offers two user-selectable addresses. The typical accuracy for humidity is 1.5 %RH and for temperature is 0.1 °C. It boasts very fast start-up and measurement times and comes in a tiny 8-Pin DFN package. The AmbaSat-1 Sensor boards are designed to be soldered onto the AmbaSat-1 main satellite board and communicate sensor data using the I2C interface.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
