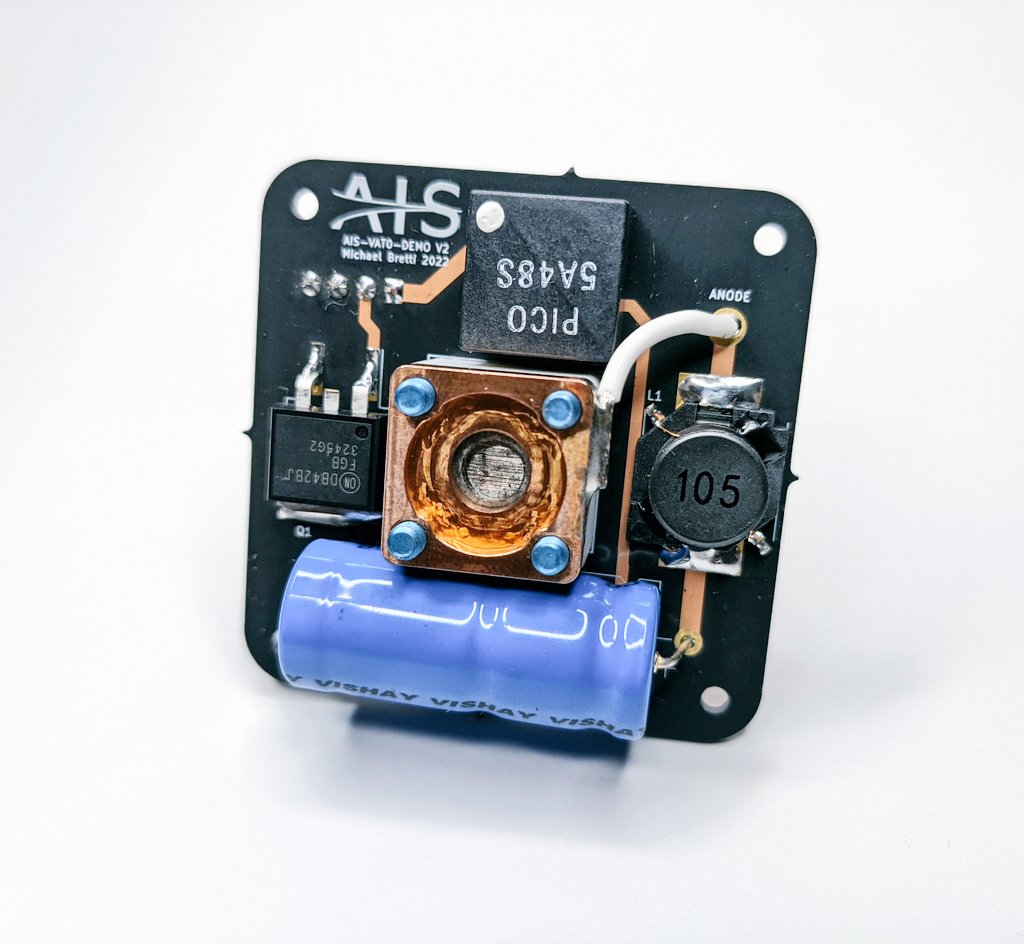

AIS-VAT0-DEMO Educational DIY Micro Vacuum Arc Thruster Kit
Applied Ion Systems
The first off-the-shelf DIY educational electric propulsion learning kit, allowing anyone to build and fire a fully operational micro vacuum arc thruster based on real flight-module technology.
Typed specifications16 values
Discloses 5 of 10 fields engineers filter by in this category (category median 3).
- Propulsion family
- electric datasheet p.5 electric Micro Triggerless Vacuum Arc Thruster
- Envelope (L×W×H)
- 50x50x21mm datasheet p.5
- Propellant
- Bismuth datasheet p.5
- Supply voltage
- 5 V nom. · datasheet p.5 5 V Input
- Power consumption
- 2.5 W datasheet p.5
- Data interface
- GPIO x2 logic pulses (TRIGGER, GATE) · datasheet p.5
- Lead time
- 4 months product page
- Thruster technology
- vacuum arc datasheet p.5
- Number of starts or pulses
- 300 000 5x10^-2 Torr · datasheet p.5 60 000 shot lifetime at 10^-6 Torr | 300 000 min · shot lifetime at 5x10^-2 Torr (>300,000 shots)
- Power at thrust
- 2.5 W datasheet p.5
- Connector
- 4-pin JST B04B-XASK datasheet p.7
- Pulse repetition rate
- 8 Hz max · single shot to 8Hz · datasheet p.5
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Type
- Micro Vacuum Arc Thruster Demo DIY Kit
- Power
- 2.5 W
- Shot lifetime (10^-2 Torr)
- >300,000
- Shot lifetime (10^-6 Torr)
- 60,000
- Rep rate
- Single Shot to 8 Hz
- Dimensions
- 50x50x21 mm
- Fuel
- Bismuth
- Inputs
- 5 V, GND, x2 Logic Pulses
- Price (Domestic)
- $570.00 (shipping included)
- Price (International)
- $720.00
- Status
- AVAILABLE
- Lead time
- 4 WEEKS
About
The AIS-VAT0-DEMO is the first ever off-the-shelf DIY educational electric propulsion learning kit in the field and on the market, allowing for electric propulsion to truly be accessible to the masses. Taking advantage of the extreme simplicity, low-cost, and wide operating range of micro vacuum arc thruster technology and leveraging the significant developments from the original AIS-VAT1-PQ Micro Vacuum Arc Thruster, the VAT0-DEMO opens the doors for anyone to start exploring electric propulsion technology and get hands on experience building and firing your very own, fully operational thruster based off of real flight-module technology.
One of the most powerful features of the VAT0-DEMO kit is the ability to leverage the wide operating range of pulsed vacuum arc sources. Because these sources can be run at both low and high vacuum, the DEMO kit allows anyone to begin experimenting with electric propulsion without the need for high vacuum pumping infrastructure, radically lowering the cost of the major barrier of entry into the field. The VAT0-DEMO has been fully vetted from 10^-6 Torr all the way up to 200mTorr, and because of this wide operating range, only a basic rotary vane mechanical pump is required for backing the system. At the recommended operating pressure of 50mTorr, the VAT0-DEMO has been tested to over 300,000 shots from a single build at max rep rate (10 hours straight operation at 8Hz).
The VAT0-DEMO also uses the same exact thruster head and control architecture of the original VAT1 Series, meaning that operation of the DEMO is exactly the same, and can be easily controlled with basic microcontrollers like the Arduino. The DEMO only requires 5V input with two logic commands, making for a simple and compact fully functional thruster perfect for demonstrating the fundamental principles of electric propulsion and opening up plasma thruster testing for the classroom and home use.

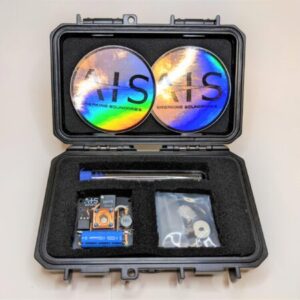

The kit includes the thruster, spare ceramic washers, graphite stick for rebuilding the trigger layer, spare Bismuth cathodes, cable for power and control, spare hardware, instruction manual, and hard carrying case. Three levels of assembly options are available: fully DIY, partial assembly, and complete assembly.
Fuel: Bismuth. Status: AVAILABLE.
