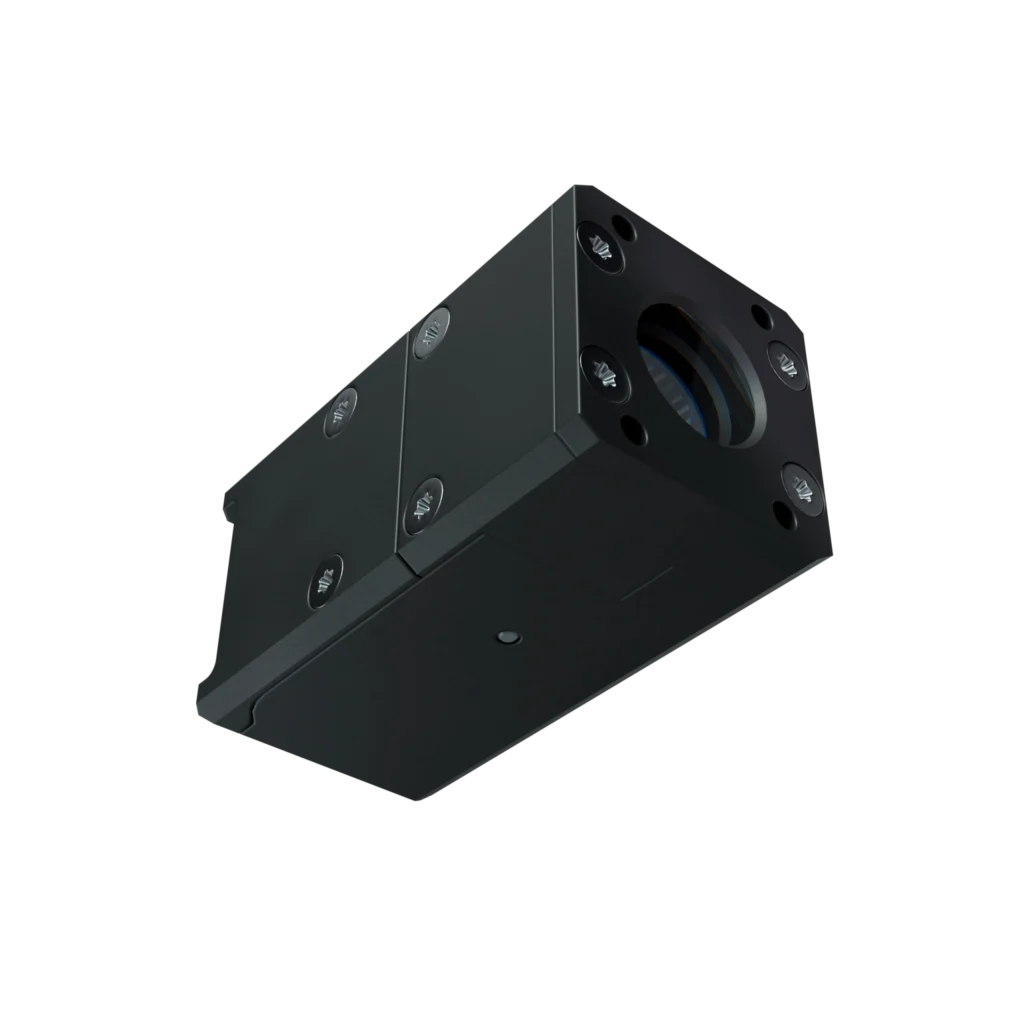

Twinkle Star Tracker
arcsec
The Twinkle Star Tracker provides arc second range pointing accuracy for CubeSats and large satellites, featuring custom algorithms optimized for accuracy, robustness, and low computational cost.
Typed specifications20 values
Discloses 7 of 12 fields engineers filter by in this category (category median 8).
- Accuracy, cross-boresight
- 3 arcsec datasheet p.1 3 arcsec 1 sigma, Cross-boresight accuracy | 3 arcsec cross-boresight, 1 sigma
- Mass
- 35 g datasheet p.1
- Accuracy, about boresight (roll)
- 30 arcsec datasheet p.1 30 arcsec 1 sigma, Around boresight accuracy | 30 arcsec around boresight, 1 sigma
- Envelope (L×W×H)
- 20 x 20 x 40 mm datasheet p.2
- Update rate
- 10 Hz datasheet p.1
- Field of view
- 10.6 ° datasheet p.1
- Supply voltage
- 5 V nom. · +5 V · datasheet p.1 5 V
- Power consumption
- 1 W Nominal · datasheet p.1 1 W nom.
- Data interface
- RS485 datasheet p.1 RS-485 RS485
- Configuration
- single unit datasheet p.1
- Limiting star magnitude
- 7 Mv datasheet p.1 7 Mv tracks stars up to magnitude 7
- Satellite class
- CubeSat datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Cross-boresight accuracy
- 3" (1σ)
- Around-boresight accuracy
- 30" (1σ)
- Dimensions
- 20 x 20 x 40 mm
- Power
- 1000 mW
- Supply voltage
- 5 V
- Communication interface
- RS485
- Mass
- 35 g
About
The Twinkle Star Tracker is a compact and easily interfaced star tracker designed for CubeSats and larger satellites. It offers arc second range pointing accuracy, crucial for precise attitude determination in space missions. The device incorporates custom algorithms that are specifically optimized for high accuracy, robustness against various operational conditions, and low computational cost, making it efficient for resource-constrained satellite platforms. Its small size allows for flexible integration, and multiple units can be mounted at different angles to further enhance overall pointing accuracy. This design approach provides redundancy and improved performance for demanding satellite applications.
