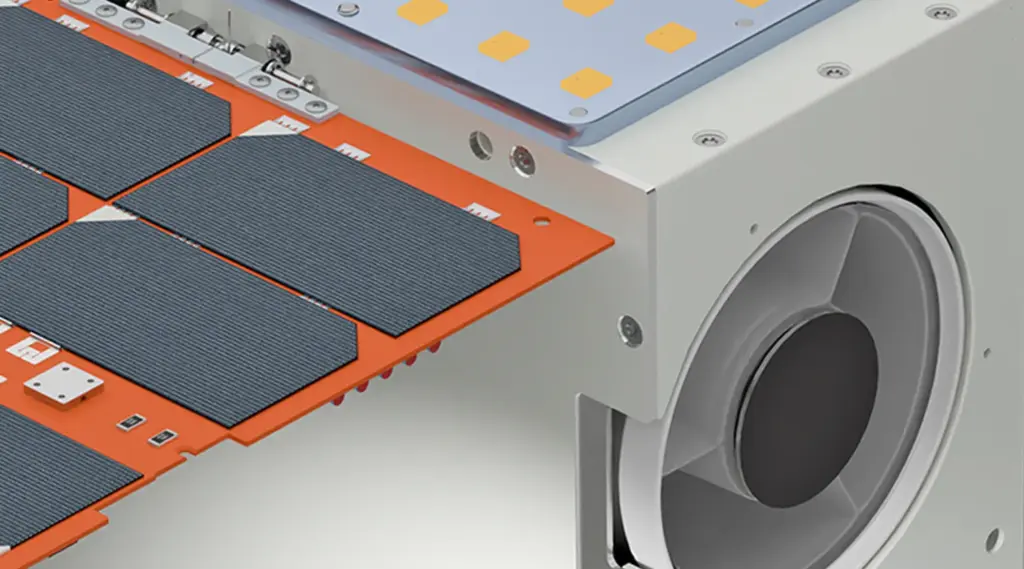

HAWK LITE 6U-12U Microsatellite Platform

Typed specifications46 values

Discloses 5 of 7 fields engineers filter by in this category (category median 3).

Data interface

RS-422

datasheet p.2 LVDS  |  SpaceWire  |  SPI  |  CAN

Design lifetime

5 years

max · up to 5 years · datasheet p.2

Form factor

6U

datasheet p.2 12U 12U Earth and 12U Deep Space

Orbit

GEO

12U Deep Space · datasheet p.2 LEO 6U and 12U Earth  |  lunar cislunar, 12U Deep Space  |  deep space interplanetary, 6U and 12U Deep Space

Max payload mass

8 kg

max · 12U (Earth and Deep Space) · datasheet p.2 3 kg max · 6U

Payload volume, U

6 U

12U (Earth and Deep Space) · datasheet p.2 3.5 U 6U

Power available to payload

130 W

max · max payload power, 12U Deep Space · datasheet p.2 100 W max · max payload power, 12U Earth  |  40 W max · max payload power, 6U

Regulated voltages for the payload

5 V

protected regulated line · datasheet p.2 12 V protected regulated line

Unregulated bus for the payload

22 V

min · protected unregulated lines 22 V to 32 V · datasheet p.2 32 V max · protected unregulated lines 22 V to 32 V

Onboard storage for payload data

32 GB

max · on-board storage · datasheet p.2 240 GB max · with PDP option, 12U

Power generation (orbit average)

220 W

max · peak, BOL solar array, 12U Deep Space · datasheet p.2 95 W max · peak, BOL solar array, 12U Earth  |  80 W max · peak, BOL solar array, 6U

Attitude control

3-axis stabilised

datasheet p.2

Pointing accuracy

0.003 °

max · datasheet p.2

Attitude knowledge

0.002 °

max · datasheet p.2

Propulsion

included

chemical; electrical upon request or on 12U Deep Space · datasheet p.2

Delta-v

120 m/s

chemical, 12U Deep Space · datasheet p.2 60 m/s chemical, 6U and 12U Earth  |  2 500 m/s electrical, 12U Deep Space (printed 2.5 km/s)

Payload data downlink rate

100 000 kbps

max · payload downlink, 12U Deep Space · datasheet p.2 200 000 kbps max · payload downlink, 12U Earth  |  200 000 kbps max · payload downlink, 6U

Radio band

X

datasheet p.2 S 6U and 12U Earth; upon request for 12U Deep Space  |  other K-band upon request, 12U Deep Space  |  Ka upon request, 12U Deep Space  |  UHF upon request, 6U and 12U Earth

Subsystems included

OBC

Argotec OBC&DH · datasheet p.1 EPS Argotec PCDU

Flight heritage

6U deep-space variant flew on NASA DART as LICIACube, the companion CubeSat that performed an autonomous asteroid fly-by

datasheet p.1

Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer. Report a wrong value
