ATCi Parabolic Antenna 3.7m C/Ku-Band Prime Focus Rx
ATCi

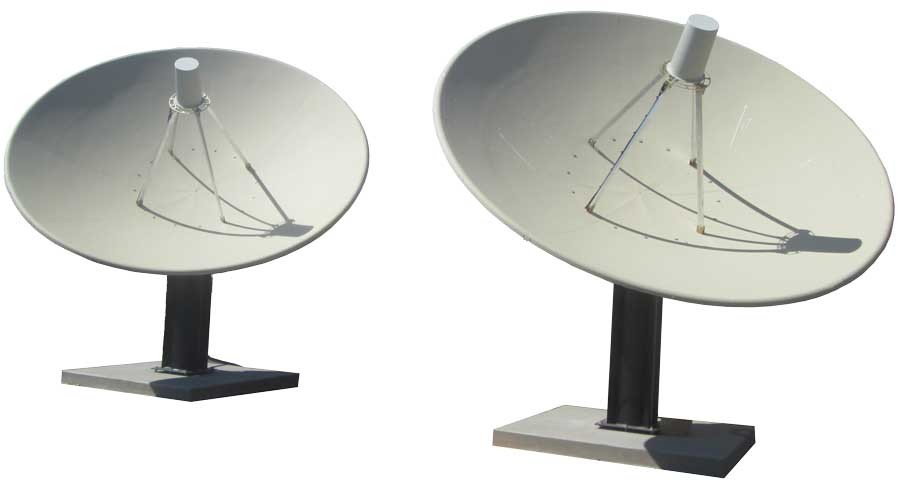

The ATCi 3.7 Meter C/Ku-Band Prime Focus Receive-Only Antenna delivers high performance for satellite communications ground stations. Manufactured by Prodelin, this antenna features a glass fiber reinforced galvanized reflector with powder coat finish for superior weather resistance. The reflector consists of 8 draw die-formed contoured petals with matched radial beams, requiring no field alignment to […]
Typed specifications34 values
Discloses 7 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- C C-Band · datasheet p.2 Ku Ku-Band
- Antenna diameter
- 3.7 m 3.7 M (12 ft.) · datasheet p.2
- Mass
- 234 kg C-Band Shipping Specifications · datasheet p.2 259 kg Ku-Band Shipping Specifications | 234 kg max · shipping weight, C-Band, 520 lbs. | 259 kg max · shipping weight, Ku-Band, 575 lbs.
- Frequency range
- 3.625 - 4.2 C-Band · datasheet p.2 10.95 - 12.75 Ku-Band | 3 625–4 200 MHz C-Band Rx | 10 950–12 750 MHz Ku-Band Rx
- G/T
- 25 dB/K C-Band, 20deg elevation · datasheet p.2 23 dB/K C-Band, 30deg elevation | 23 dB/K Ku-Band, 20deg elevation | 22 dB/K Ku-Band, 30deg elevation
- Operating temperature
- -40–60 °C -40° to 140° F · datasheet p.2
- Offering
- antenna hardware datasheet p.1
- Antenna type
- parabolic reflector Prime Focus, Axisymmetric · datasheet p.2
- Mount / pedestal
- az-el Az/El or Declination Corrected Polar Mounts · datasheet p.1 polar Declination Corrected Polar Mount
- Polarization
- linear datasheet p.2
- Antenna gain
- 40.9 dBi C-Band, midband (+/- .5 dB) · datasheet p.2 50.7 dBi Ku-Band, midband (+/- .5 dB)
- Beamwidth (3 dB)
- 1.45 ° C-Band, 3 dB · datasheet p.2 0.5 ° Ku-Band, 3 dB
- Cross-pol isolation
- 30 dB min · >30 dB (on axis), linear, C- and Ku-Band · datasheet p.2
- VSWR
- 1.3 max · 1.3:1 Max. · datasheet p.2
- Connector
- Feed interface CPR 229F / WR 75 datasheet p.2
- Survival temperature
- -46–71 °C -50° to 160° F · datasheet p.2
- Azimuth travel
- 360 ° 360° continuous / polar mount covers any 90° segment of arc · datasheet p.2
- Min elevation
- 10 ° datasheet p.2
- Elevation travel
- 10–70 ° 10° to 70° continuous fine adjustment (90° optional) · datasheet p.2
- Operational wind speed
- 20 m/s operational 45 mph (72 km/h), в документе km/h · datasheet p.2 55.8 m/s survival 125 mph (201 km/h), в документе km/h
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier14 lines, in the manufacturer's own wording
- Diameter
- 3.7 m
- C-band gain
- 42.3 dB at 4 GHz
- KU-band gain
- 51.1 dB at 12 GHz
- Beamwidth (-3 db) c-band
- 1.4 degrees at 4 GHz
- Beamwidth (-3 db) KU-band
- 0.48 degrees at 12 GHz
- Port-to-port isolation
- 35 dB
- Mass (raw)
- 207 lbs
- Depth
- 20.5 inches
- Focal length (F/D Ratio)
- 57.6 inches / 0.4
- Wind load survival
- 125 mph
- Operational wind (C-Band)
- 75 mph
- Operational wind (Ku-Band)
- 60 mph
- Mount options
- Fixed Gibralter, Motorized Gibralter
- Reflector material
- Glass fiber reinforced galvanized, powder coated
About
The ATCi 3.7 Meter C/Ku-Band Prime Focus Receive-Only Antenna delivers high performance for satellite communications ground stations. Manufactured by Prodelin, this antenna features a glass fiber reinforced galvanized reflector with powder coat finish for superior weather resistance. The reflector consists of 8 draw die-formed contoured petals with matched radial beams, requiring no field alignment to significantly reduce installation time and cost. Available in fixed and motorized Gibralter mount configurations, the antenna achieves C-Band gain of 42.3 dB at 4 GHz and Ku-Band gain of 51.1 dB at 12 GHz. ATCi provides competitive pricing, highest quality products and unmatched engineering support.
