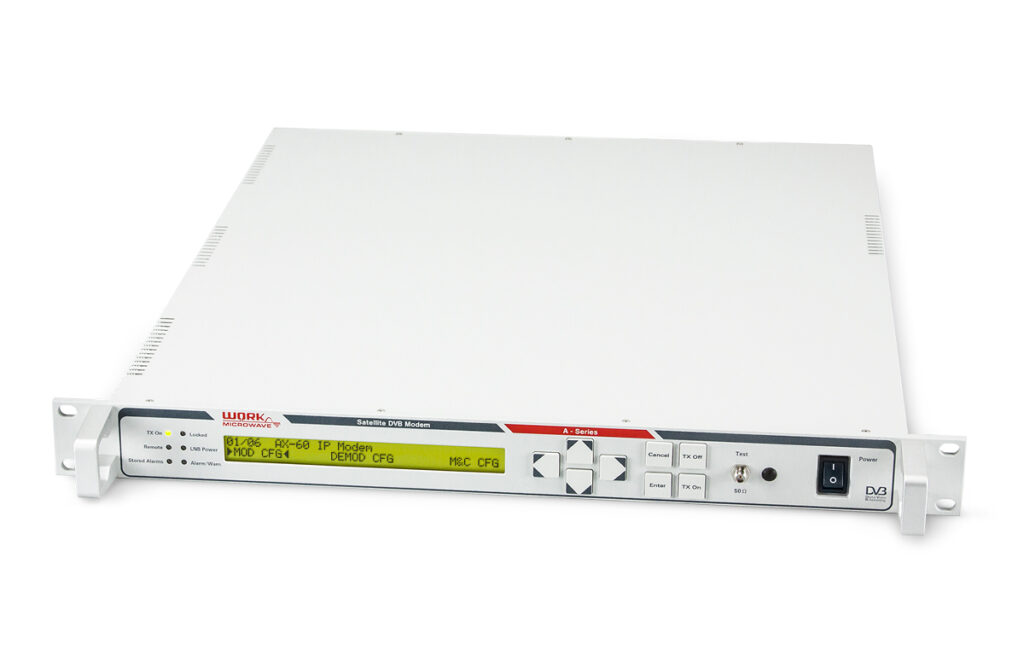

AX-60/AX-61 IP Modem

Typed specifications104 values

Discloses 8 of 11 fields engineers filter by in this category (category median 6).

Mass

10 000 g

max · depending on device type · datasheet p.4 10 000 g max · up to approx. 10 kg depending on device type

Link protocols and waveforms

DVB-S2X/S2/S

datasheet p.1 CCSDS CCSDS CADU frames extraction from DVB-S2, w/ license CCSDS131.3  |  other DVB-CID, ETSI TS 103129  |  DVB-S2 ETSI EN 302 307-1  |  DVB-S2X ETSI EN 302 307-2  +7

Frequency range

50–180 MHz

RX IF · datasheet p.3 950–2 150 MHz RX L-band  |  680–2 300 MHz RX L-band w/ licenses RXL680 and RXL2300  |  680–2 300 MHz RX L-band with licenses RXL680 and RXL2300  |  50–180 MHz RX signal input 70/140 MHz, options IF50/IF75  +10

Envelope (L×W×H)

483 x 44 x 505 mm³ (WxHxD)

datasheet p.4 483 x 44 x 505 WxHxD, 1 RU 19"

TX RF output power

0 W

min · Signal output 70/140 MHz w/ options IF50 or IF75 · datasheet p.2 0 W min · Signal output L-band  |  0.003 W max · 70/140 MHz output  |  0.001 W max · L-band output, 0.1 dB steps  |  0.003 W max · Signal output 70/140 MHz w/ options IF50 or IF75  +3

Data rate

360 000 kbps

up to, integrated · datasheet p.1 360 000 kbps max · integrated; IP 360 Mbps or 80000 pps rx+tx processing

RX sensitivity

-60 dBm

min · Signal input 70/140 MHz w/ options IF50 or IF75 · datasheet p.3 -70 dBm min · Signal input L-band  |  15 dBm max · Signal input 70/140 MHz w/ options IF50 or IF75  |  -10 dBm max · Signal input L-band

Modulation

QPSK to 32APSK; normal, short

DVB-S2 · datasheet p.1 QPSK to 256APSK normal, short, linear DVB-S2X  |  128APSK DVB-S2X, printed as 128PSK, TX and RX  |  256APSK DVB-S2X, printed as 256PSK, TX and RX  |  64APSK DVB-S2X, TX and RX  +10

Supply voltage

100–240 V

AC nominal · datasheet p.4 90–264 V max  |  90–264 V AC max  |  100–240 V nom.

Power consumption

45 W

typical · datasheet p.4 45 W typical (65 VA)  |  45 W typ.

Data interface

other

Alarm (DSUB-9) · datasheet p.4 Ethernet Data network  |  Ethernet data network and M&C network, RJ-45 10/100/1000 Mbps  |  Ethernet M&C network

Operating temperature

0–50 °C

Operating · datasheet p.4 -30–60 °C Operating w/ option EXT

Function

modem

Satellite Modem · datasheet p.1

Link use

ground modem

full IP connectivity over DVB links · datasheet p.1

Frequency band

IF (70/140 MHz)

TX and RX 70/140 MHz w/ options IF50 or IF75 · datasheet p.2 L TX and RX L-band  |  IF (70/140 MHz) RX  |  IF (70/140 MHz) TX

RF connector

BNC

10 MHz reference input w/ option RI · datasheet p.4 BNC RX 70/140 MHz input, options IF50/IF75  |  BNC RX IF  |  F RX L-band input, F female, 75 Ohm  |  BNC RX Signal input 70/140 MHz w/ options IF50 or IF75  +6

Connector

2x RJ-45 Ethernet; N female TX; F female RX; BNC female IF in/out (options IF50/IF75); BNC 10 MHz ref and DSUB-9 alarm (option RI); IEC C14 mains

datasheet p.4 BNC female 10 MHz reference input w/ option RI  |  DSUB-9 female Alarm w/ option RI  |  RJ-45 Data network, M&C network  |  IEC C14 Mains power  +4

Survival temperature

-30–80 °C

Storage · datasheet p.4

Warranty

3 years

datasheet p.1

Max RX input level

15 dBm

max · 70/140 MHz input power -60...15 dBm, total aggregate · datasheet p.3 -10 dBm max · L-band input power -70...-10 dBm, total aggregate

Data interface speed

1 000 Mbps

max · Ethernet 10/100/1000 Mbps · datasheet p.4
