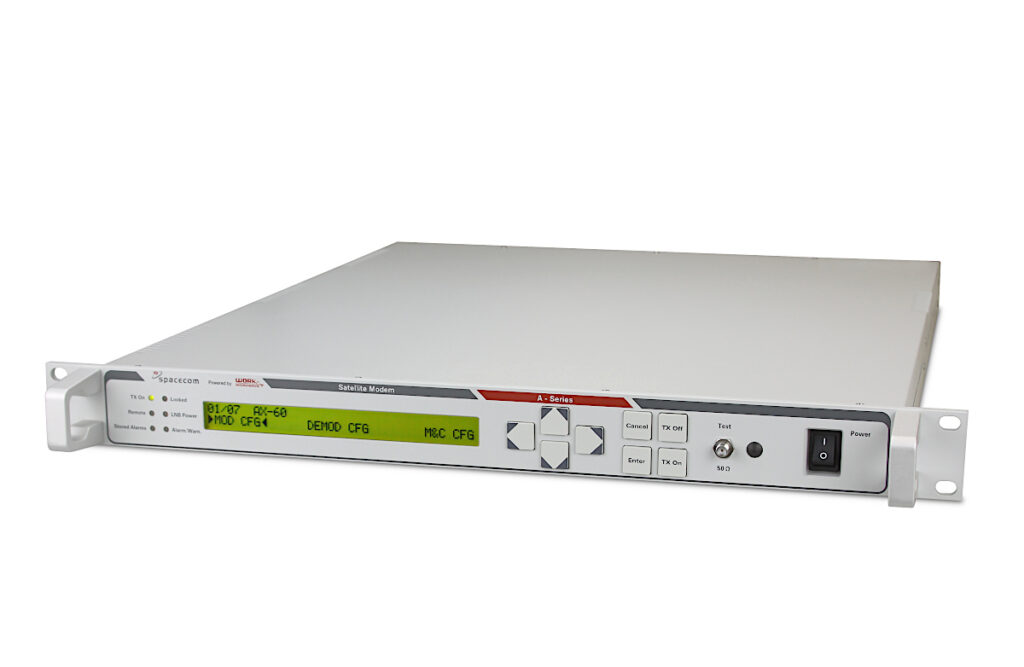

AX-60-S02190 CCSDS TM/TC Modem
WORK Microwave
A ground station modem designed for CCSDS 131 and 231 based mission communication, ensuring compatibility with IQ Spacecom XLink space segment transceivers.
Typed specifications121 values
Discloses 5 of 10 fields engineers filter by in this category (category median 2).
- Frequency bands
- L TX and RX L-band · datasheet p.2
- Mass
- 10 kg approx, up to, depending on device type · datasheet p.4 10 kg max · up to approx. 10 kg depending on device type
- Link protocols and waveforms
- CCSDS 231.0-B-3 TC datasheet p.1 CCSDS 131.0-B-3 TM | DVB-S2X - ETSI EN 302 307-2 | DVB-S2 - ETSI EN 302 307-1 | CCSDS 131.3-B-1 CADU frames over DVB-S2 +4
- Frequency range
- 950–2 150 MHz RX Signal input L-band · datasheet p.3 680–2 300 MHz RX Signal input L-band w/ licenses RXL680 and RXL2300 | 680–2 300 MHz RX w/ licenses RXL680 and RXL2300 | 950–2 150 MHz TX Signal output L-band
- Envelope (L×W×H)
- 483 x 44 x 505 mm³ (WxHxD) datasheet p.4 483 x 44 x 505 WxHxD, 1 RU 19"
- TX RF output power
- 0–0.001 W Output power · datasheet p.2 0.001 W max · TX output power, 0.1 dB steps
- Data rate
- 360 000 kbps max · IP data rate limit, rx+tx processing (or 80000 pps) · datasheet p.4
- RX sensitivity
- -70–-10 dBm Input power · datasheet p.3
- Modulation
- BPSK CCSDS 131.0 Modulation · datasheet p.3 BPSK CCSDS 231.0 Modulation | QPSK DVB-S2 Modulation (normal and short FEC frame) | QPSK DVB-S2X Modulation (normal FEC frame) | QPSK DVB-S2X Modulation (short FEC frame) +54
- Supply voltage
- 100–240 V nominal · datasheet p.4 90–264 V max · Mains power Input | 100–240 V Mains power Input | 100–240 V nom. · Mains power Input
- Power consumption
- 45 W typical · datasheet p.4 45 W typical (65 VA) | 45 W typ.
- Data interface
- other Alarm, DSUB-9 female · datasheet p.4 Ethernet Data network | Ethernet data network and M&C network, RJ-45 10/100/1000Base-T | Ethernet M&C network
- Operating temperature
- 0–50 °C Operating · datasheet p.4 -30–60 °C Operating w/ option EXT
- Function
- modem Space Mission Ground Modem · datasheet p.1
- Link use
- TT&C CCSDS 231.0-B-3 TC uplinks, CCSDS 131.0-B-3 TM downlinks · datasheet p.1 ground modem ground station counterpart for IQ Spacecom's XLink space term…
- TX chains
- 1 single L-band signal output · datasheet p.2
- RX chains
- 1 1x F female L-band input · datasheet p.3
- RF connector
- BNC 10 MHz reference input w/ option RI · datasheet p.4 BNC 10 MHz reference input, w/ option RI | F RX L-band input, F female, 75 Ohm | F RX Signal input L-band | N TX L-band output, N female, 50 Ohm +1
- Connector
- 2x RJ-45 Ethernet; N female (TX); F female (RX); BNC 10 MHz ref and DSUB-9 alarm w/ option RI; IEC C14 mains datasheet p.4 BNC female 10 MHz reference input w/ option RI | DSUB-9 female Alarm w/ option RI | Ethernet RJ-45 Data network | Ethernet RJ-45 M&C network +2
- Survival temperature
- -30–80 °C Storage · datasheet p.4
- Channel coding (FEC)
- convolutional (Viterbi) RX CCSDS 131.0, Convolutional 1/2, 2/3, 3/4, 5/6, 7/8 · datasheet p.3 Reed-Solomon RX CCSDS 131.0, RS 223/255 or 239/255 | concatenated RS + convolutional RX CCSDS 131.0, separate or concatenated | BCH TX CCSDS 231.0, BCH 56/64 | LDPC TX CCSDS 231.0, LDPC 64/128 or 256/512
- Warranty
- 3 years datasheet p.1
- Max RX input level
- -10 dBm max · RX input power -70...-10 dBm, total aggregate power · datasheet p.3
- Data interface speed
- 1 000 Mbps max · Ethernet 10/100/1000Base-T · datasheet p.4
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Downlink Compliance
- CCSDS 131.0-B-3
- Uplink Compliance
- CCSDS 231.0-B-3
- Symbol Rates
- 10 ksps up to 75 Msps
- Frequency
- 950...2150 MHz
- Data rate
- 360 Mbps or 80000 pps
- Operating temperature
- 0°C...50°C
- Storage temperature
- -30°C...80°C
- Supply voltage
- 100...240 V AC nominal
- Power
- 65 VA / 45 W typical
- Dimensions
- 483 x 44 x 505 mm³
- Mass
- up to approx. 10 kg
- TX Signal Output Impedance
- 50 Ohm
- RX Signal Input Impedance
- 75 Ohm
- RX Signal Input Connector
- 1x F female
- TX Signal Output Connector
- N female
- Relative humidity
- < 95% non condensing
About
The AX-60-S02190 CCSDS TM/TC Modem is a crucial component for ground station mission communication. It is specifically engineered to facilitate communication with IQ Spacecom XLink space segment transceivers. This modem is fully compliant with CCSDS 131.0-B-3 for downlink operations and CCSDS 231.0-B-3 for uplink operations. It supports a wide range of symbol rates, from 10 ksps up to 75 Msps, offering flexibility for various mission requirements. The modem also provides an IQ diagram output, which is valuable for signal analysis and monitoring. Built upon the proven and flexible A-Series SDR architecture, it guarantees compatibility with IQ Spacecom XLink transceivers, ensuring seamless integration into existing systems.
