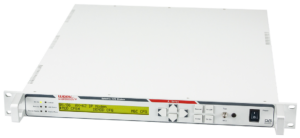

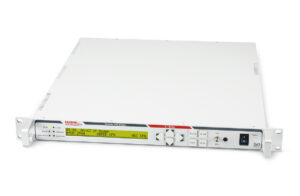

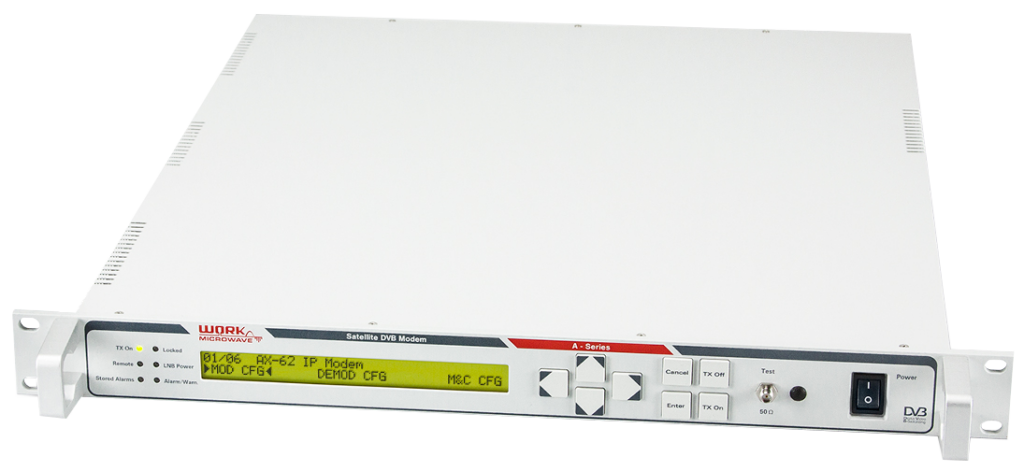

AX-62 Space Mission Ground Modem

Typed specifications106 values

Discloses 5 of 10 fields engineers filter by in this category (category median 2).

Frequency bands

L

TX and RX L-band · datasheet p.2

Mass

10 kg

max · depending on device type · datasheet p.4 10 kg max · up to approx. 10 kg depending on device type

Link protocols and waveforms

CCSDS 231.0-B-3 TC uplinks

datasheet p.1 CCSDS 131.0-B-3 TM downlinks  |  DVB-S2X - ETSI EN 302 307-2  |  DVB-S2 - ETSI EN 302 307-1  |  CCSDS 131.3-B-1 CADU frames over DVB-S2  +4

Frequency range

950 MHz

min · RX Signal input L-band · datasheet p.3 680 MHz min · RX Signal input L-band w/ licenses RXL680 and RXL2300  |  950 MHz min · TX Signal output L-band  |  2 150 MHz max · RX Signal input L-band  |  2 300 MHz max · RX Signal input L-band w/ licenses RXL680 and RXL2300  +4

Envelope (L×W×H)

483 x 44 x 505 mm³ (WxHxD)

datasheet p.4 483 x 44 x 505 WxHxD, 1 RU 19"

TX RF output power

0 W

min · datasheet p.2 0.001 W max  |  0.001 W max · TX output power, 0.1 dB steps

Data rate

360 000 kbps

rx+tx processing · datasheet p.4 360 000 kbps max · IP data rate limit, rx+tx processing (or 80000 pps)

RX sensitivity

-70 dBm

min · datasheet p.3 -10 dBm max

Modulation

BPSK

CCSDS 231.0 · datasheet p.2 QPSK DVB-S2  |  QPSK DVB-S2X, normal FEC frame  |  16APSK DVB-S2X, normal FEC frame, linear  |  QPSK DVB-S2X, short FEC frame  +25

Supply voltage

100 V

min · nominal · datasheet p.4 90 V min · max  |  90–264 V max  |  264 V max · max  |  240 V max · nominal  +1

Power consumption

45 W

typical · datasheet p.4 45 W typical (65 VA)  |  45 W typ.

Data interface

Ethernet

Data network · datasheet p.4 Ethernet data network and M&C network, RJ-45 10/100/1000Base-T  |  Ethernet M&C network

Operating temperature

0 °C

min · datasheet p.4 -30 °C min · w/ option EXT  |  50 °C max  |  60 °C max · w/ option EXT  |  0–50 °C  +1

Function

modem

Space Mission Ground Modem · datasheet p.1

Link use

TT&C

CCSDS 231.0-B-3 TC uplinks, CCSDS 131.0-B-3 TM downlinks · datasheet p.1 ground modem ground station element for New Space

TX chains

1

single L-band signal output · datasheet p.2

RX chains

1

1x F female L-band input · datasheet p.3

RF connector

BNC

10 MHz reference input, w/ option RI · datasheet p.4 F RX L-band input, F female, 75 Ohm  |  F RX Signal input L-band  |  N TX L-band output, N female, 50 Ohm  |  N TX Signal output L-band

Waveform development

other

software radio approach allows quick and easy extension of wa… · datasheet p.1

Connector

2x RJ-45 Ethernet; N female (TX); F female (RX); BNC 10 MHz ref and DSUB-9 alarm w/ option RI; IEC C14 mains

datasheet p.4 BNC female 10 MHz reference input w/ option RI  |  DSUB-9 female Alarm w/ option RI  |  RJ-45 Data network  |  RJ-45 M&C network  +1

Survival temperature

-30 °C

min · datasheet p.4 80 °C max  |  -30–80 °C storage

Channel coding (FEC)

convolutional (Viterbi)

RX CCSDS 131.0, Convolutional 1/2, 2/3, 3/4, 5/6, 7/8 · datasheet p.3 Reed-Solomon RX CCSDS 131.0, RS 223/255 or 239/255  |  concatenated RS + convolutional RX CCSDS 131.0, separate or concatenated  |  BCH TX CCSDS 231.0, BCH 56/64  |  LDPC TX CCSDS 231.0, LDPC 64/128 or 256/512

Warranty

3 years

datasheet p.1

Max RX input level

-10 dBm

max · RX input power -70...-10 dBm, total aggregate power · datasheet p.3

Data interface speed

1 000 Mbps

max · Ethernet 10/100/1000Base-T · datasheet p.4

Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer. Report a wrong value
