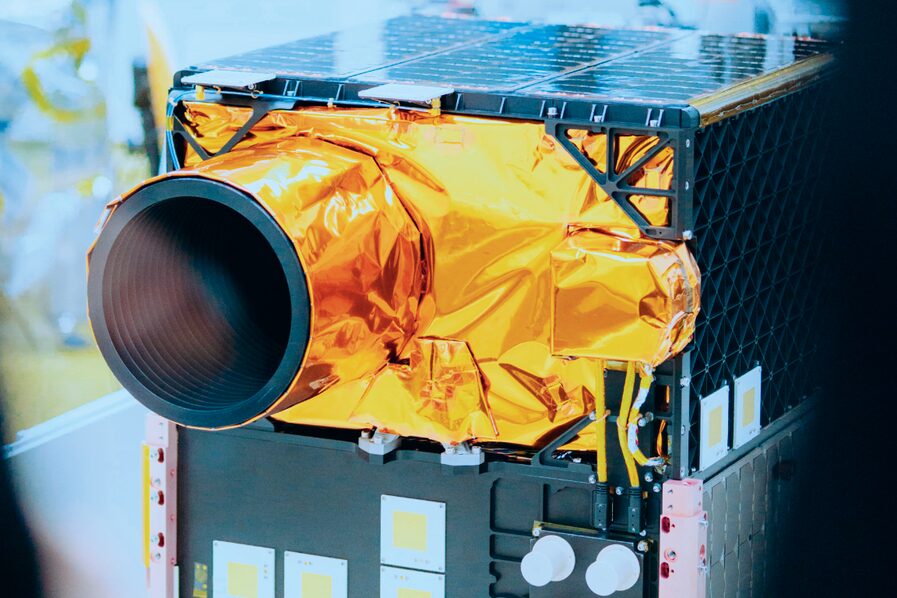

LEOS-50
Berlin Space Technologies
The LEOS-50 is Berlin Space Technologies’ heritage small satellite platform, flight proven with in-orbit operation since 2015. It is designed for demanding Earth observation missions carrying medium-sized payloads, offering a payload envelope of up to 55 x 55 x 40 cm and up to 30 kg payload mass. The bus provides up to 160 W […]
Typed specifications22 values
Discloses 3 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 30 kg product page
- Envelope (L×W×H)
- 570 x 570 x 400 mm system volume, printed 570 x 570 x 400 mm3 · datasheet p.1
- Power consumption
- 160 W product page
- Data interface
- RS-422 TM/TC protocols: RS422, LVDS, others · datasheet p.2 LVDS TM/TC protocols: RS422, LVDS, others
- Design lifetime
- 5 years design life 5 years in LEO · datasheet p.1
- Orbit
- LEO design life 5 years in LEO · datasheet p.1
- Max payload mass
- 30 kg max · payload 15 - 30 kg (recommended); BST suggests payloads with … · datasheet p.1
- Payload envelope (L × W × H)
- 550 x 550 x 400 mm payload volume, printed 550 x 550 x 400 mm3 · datasheet p.1
- Power available to payload
- 25 W payload, average · datasheet p.1 160 W peak; payload
- Onboard storage for payload data
- 1 024 GB payload data storage 1 TB per DPU · datasheet p.2
- Propulsion
- included electrical propulsion (bus); 75 kg with electric propulsion · datasheet p.1
- Payload data downlink rate
- 320 000 kbps X-Band downlink (bus characteristics, p.1) · datasheet p.1 100 000 kbps max · payload data downlink X-Band, up to 100 Mb/s (technical speci…
- Radio band
- S S-Band TT&C · datasheet p.1 X X-Band downlink
- Subsystems included
- propulsion electrical propulsion · datasheet p.1 S-band radio S-Band TT&C | X-band downlink X-Band downlink
- Max satellite wet mass
- 75 kg system mass 75 kg with electric propulsion · datasheet p.1
- Flight heritage
- In-orbit since 2015; missions include NExSat-1 (Egypt, launched Feb 2024) and AFR/ABA First Runner (India, launched Jun 2023) product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Max payload mass
- 30 kg
- Payload envelope
- 55 x 55 x 40 cm
- Peak payload power
- 160 W
- Payload data rate
- 10 Gbps
- Onboard storage
- 1 TB per data processing unit
- Downlink
- X-band, up to 100 Mbps
- Communications security
- CCSDS-compatible with authentication and encryption
- Propulsion
- Electrical propulsion
- Design lifetime
- 5 years (LEO)
- Flight heritage
- In-orbit since 2015; missions include NExSat-1 (Egypt, launched Feb 2024) and AFR/ABA First Runner (India, launched Jun 2023)
About
The LEOS-50 is Berlin Space Technologies’ heritage small satellite platform, flight proven with in-orbit operation since 2015. It is designed for demanding Earth observation missions carrying medium-sized payloads, offering a payload envelope of up to 55 x 55 x 40 cm and up to 30 kg payload mass. The bus provides up to 160 W peak payload power, a high-speed 10 Gbps payload data interface with 1 TB onboard storage, and an X-band downlink of up to 100 Mbps, with CCSDS-compatible communications including authentication and encryption. It supports electrical propulsion and is designed for a 5-year LEO mission life, targeting government space agencies, New Space operators, and commercial Earth observation customers. Flight heritage includes NExSat-1, an Egyptian Earth-observation microsatellite built with Egypt’s National Authority of Space Sciences, launched February 2024; and AFR (ABA First Runner), an 80 kg Indian Earth-observation nanosatellite built by Azista BST Aerospace, launched June 2023 on a Falcon 9 rideshare. BST also offers the related, more powerful LEOS-100 platform built on LEOS-50’s flight-proven avionics for payloads up to 250 kg.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
