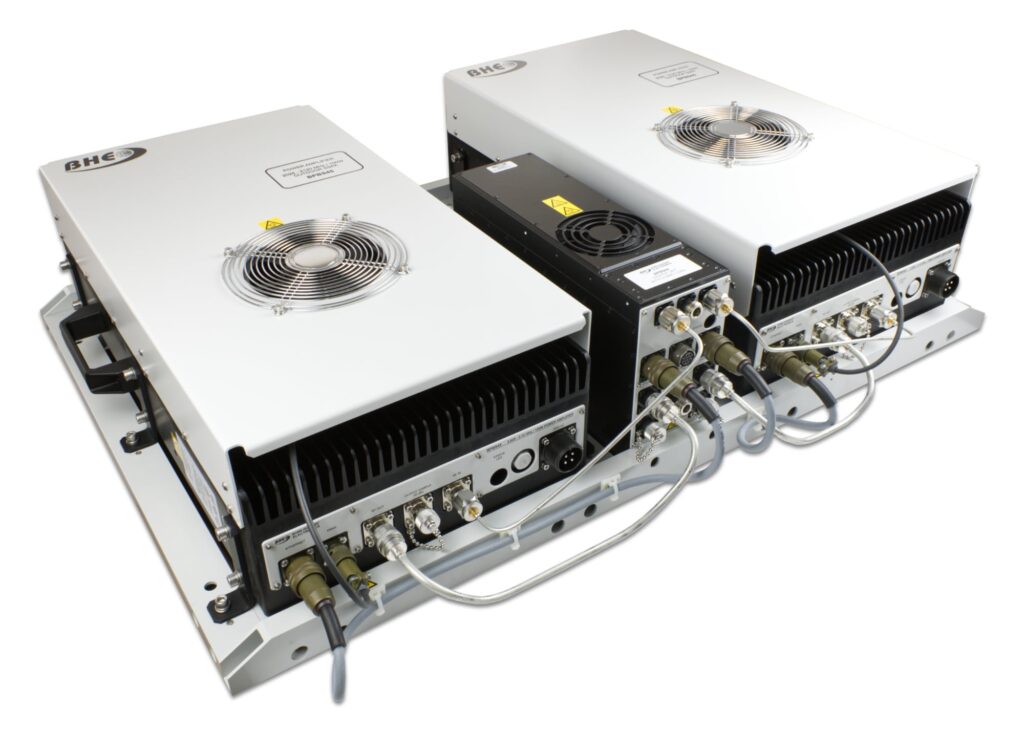

BPBS44 – 100 W 1:1 Redundant S-band Outdoor Power Amplifier
Bonn Hungary Electronics Ltd.
This solid state power amplifier is designed for S-band satellite communications systems as an uplink SSPA, featuring 100 W output RF power and 1:1 hot redundant arrangement for high reliability.
Typed specifications16 values
Discloses 4 of 8 fields engineers filter by in this category (category median 2).
- Frequency band
- S datasheet p.1
- Mass
- 52 500 g datasheet p.2
- Frequency range
- 2 025–2 120 MHz datasheet p.1
- Envelope (L×W×H)
- 873 x 610 x 204 mm datasheet p.2
- TX RF output power
- 100 W @ P3dB · datasheet p.1 100 W P3dB
- Supply voltage
- 110–240 V datasheet p.1
- Power consumption
- 100 W product page
- Data interface
- Ethernet datasheet p.1 RS-485 Optional
- Operating temperature
- -40–60 °C datasheet p.2
- Connector
- AC: MS3102E18-10P datasheet p.2 Ethernet: Amphenol MS3112E12-10S | RF IN: N–female | Sample: N–female | RF OUT: N–female
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier4 lines, in the manufacturer's own wording
- Frequency band
- S-band
- Housing
- Outdoor
- Output power
- 100 W
- Redundancy
- 1:1 redundant
About
The BPBS44 is a solid state power amplifier specifically intended for use in S-band satellite communications systems as an uplink SSPA. It is designed for direct installation to the antenna, with an outdoor construction that provides protection against harsh environmental conditions. The SSPA offers full remote monitoring and control capabilities via its built-in Ethernet interface. Its 1:1 hot redundant arrangement significantly increases the overall reliability of the system, ensuring continuous operation. Key features include 100 W output RF power, stable output power over temperature, and an Ethernet or RS-485 M&C interface.
