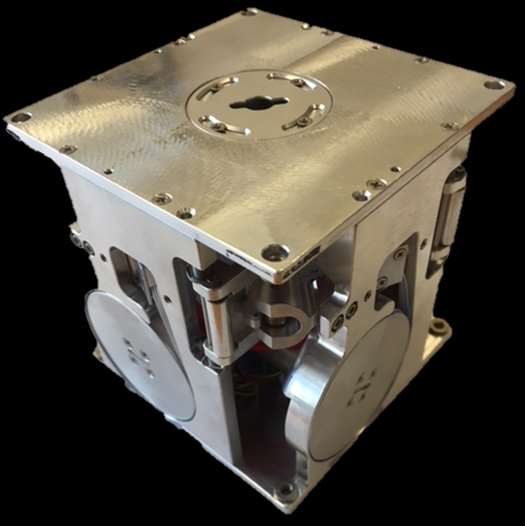

1U Quad CubeSat Boom Deployer
CTD (Composite Technology Development)
1U CubeSat boom deployer carrying four booms with wire management, deploying to 3.0 m.
Typed specifications5 values
Discloses 3 of 17 fields engineers filter by in this category (category median 3).
- Capacity
- 1 U product page
- Deployer type
- tube (P-POD type) datasheet p.7
- Accepted satellite form factors
- 1U datasheet p.7
- Satellites per form factor
- 4 datasheet p.7
- Satellite class
- CubeSat datasheet p.7
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Form factor
- 1U CubeSat
- Booms
- Four (quad), with wire management
- Deployed length
- 3.0 m
- Boom construction
- Overlapping slit-tube booms, or patented Slit-Lock for maximum payload stability
- Boom material - carbon fibre composite
- Ultimate stiffness and thermal stability
- Boom material - fiberglass
- RF transparency
- Boom material - hybrid metal-composite
- Antenna elements
- Family
- 1/4U, 1U Quad and six-axis CubeSat boom deployers
About
The 1U Quad CubeSat Boom Deployer is a member of CTD’s composite boom and CubeSat boom deployer family, which CTD describes as the smallest deployers on the market. The unit packs four booms with wire management into a 1U envelope and deploys to 3.0 m.
Booms use overlapping slit-tube construction, or CTD’s patented Slit-Lock for maximum payload stability. Boom materials are tailored to the mission: carbon fibre composite for ultimate stiffness and thermal stability, fiberglass for RF transparency, and hybrid metal-composite for antenna elements.
CTD also offers a 1/4U CubeSat boom deployer in the same family, engineered for maximum, efficient stowage.
