D-SP3X-L-1W
NPC Spacemind

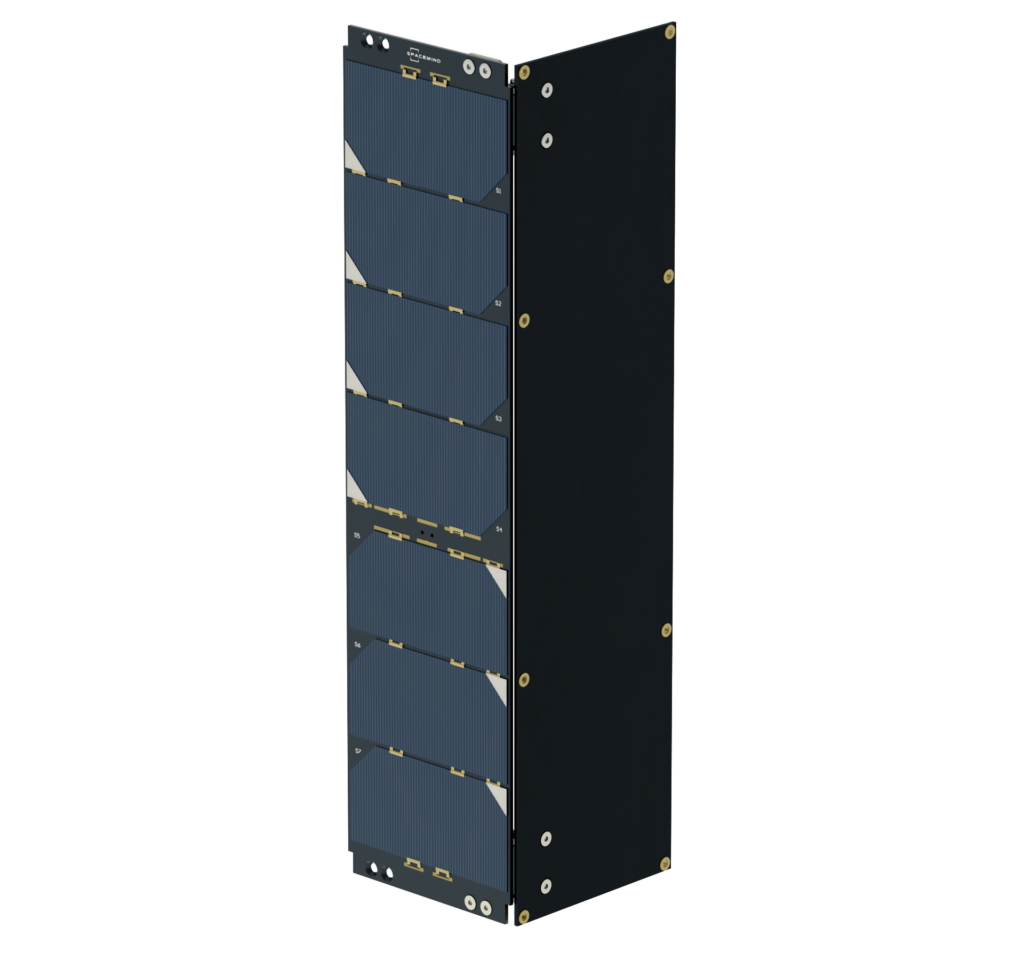

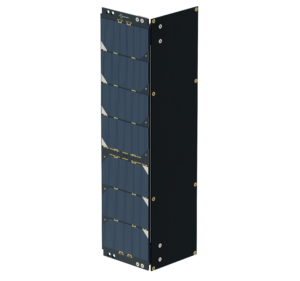

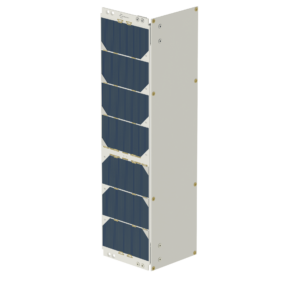

The D-SP3X-L-1W is a deployable solar panel designed for 3U/6U CubeSat structures, featuring a 1-wing lateral configuration and high-efficiency triple junction UTJ solar cells.
Typed specifications18 values
Discloses 6 of 12 fields engineers filter by in this category (category median 3).
- Output power (BOL)
- 8–8.8 W P Max · datasheet p.2
- Form factor (as printed)
- XY side datasheet p.2
- Deployable
- yes datasheet p.1
- Supply voltage
- 18.2–19.3 V product page
- Power consumption
- 8–8.8 W product page
- Data interface
- SPI datasheet p.1
- Fits satellite size
- 3U compatibility 3U/6U · datasheet p.2 6U compatibility 3U/6U
- Open-circuit voltage at the panel output (Voc)
- 18.2–19.3 V datasheet p.2
- Max-power voltage at the panel output (Vmp)
- 16–17.5 V datasheet p.2
- Integrated devices
- temperature sensor datasheet p.2 coarse sun sensor optional sensor add-on: 2 | gyroscope optional sensor add-on: IMU (3D Acc + 3D Gyro) | other optional sensor add-on: magnetic sensor (3 axis)
- Connector
- Power connectors: 2 x parallel datasheet p.2
- Satellite class
- CubeSat datasheet p.1
- Max-power current (Imp)
- 0.5–0.52 A datasheet p.2
- Integrated sensors (as printed)
- Optional add-on: digital temperature sensor (SPI / I²C), NTC temperature sensor, 2 coarse sun sensors, IMU (3D Acc + 3D Gyro), magnetic sensor (3 axis) datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier4 lines, in the manufacturer's own wording
- Peak power
- 8 - 8.8 W
- Max power current
- 500 - 520 mA
- Max power voltage
- 16 - 17.5 V
- Open circuit voltage
- 18.2 - 19.3 V
About
The D-SP3X-L-1W is a deployable solar panel specifically engineered for the XY side of CubeSat structures, compatible with both 3U and 6U form factors. It boasts high-efficiency triple junction UTJ solar cells, providing a peak power output ranging from 8 to 8.8 W. The panel delivers a max power current of 500 – 520 mA and a max power voltage of 16 – 17.5 V, with an open circuit voltage between 18.2 – 19.3 V. It includes two parallel picoblade power connectors for easy integration. Customization options are available, including the ability to add cells on the body fixed surface. Further options include a digital temperature sensor (SPI / I2C communication), an NTC temperature sensor, two coarse sun sensors, an inertial module (3D Acc + 3D Gyro), and a 3-axis magnetic sensor.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
