D-SP3X-L-2W
NPC Spacemind

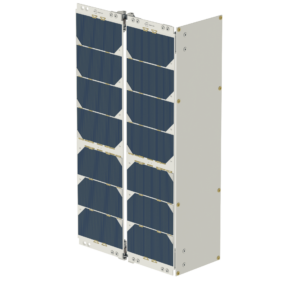

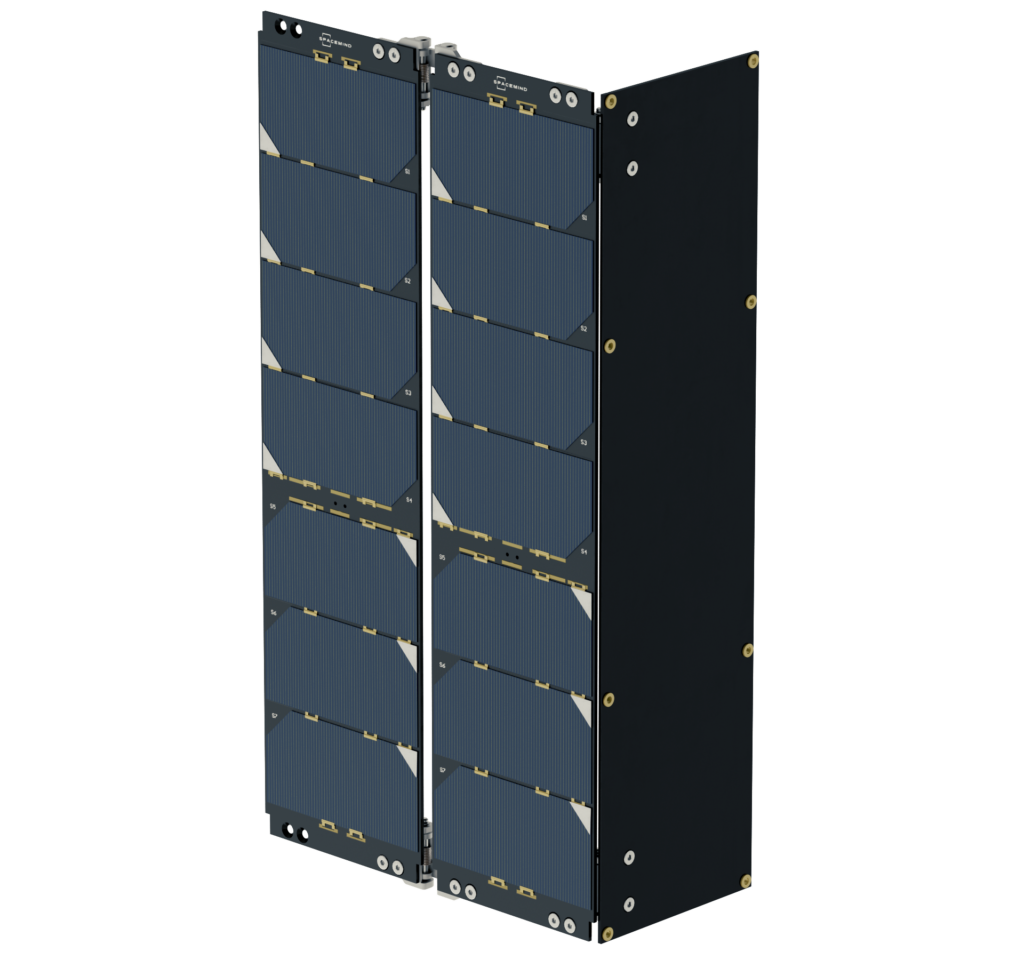

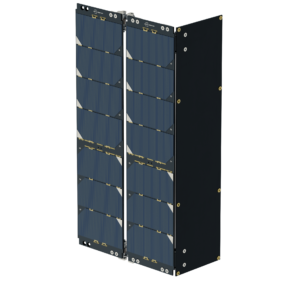

The D-SP3X-L-2W is a deployable solar panel system designed for CubeSat structures, featuring a 2 Wings Lateral Configuration and high-efficiency triple junction UTJ solar cells.
Typed specifications14 values
Discloses 4 of 12 fields engineers filter by in this category (category median 3).
- Output power (BOL)
- 16–17.6 W P Max · datasheet p.2
- Form factor (as printed)
- XY side datasheet p.2
- Deployable
- yes datasheet p.1
- Power consumption
- 16–17.6 W product page
- Data interface
- SPI datasheet p.1
- Fits satellite size
- 3U compatibility 3U/6U · datasheet p.2 6U compatibility 3U/6U
- Integrated devices
- temperature sensor datasheet p.2 coarse sun sensor optional sensor add-on: 4 | gyroscope optional sensor add-on: IMU (3D Acc + 3D Gyro) | other optional sensor add-on: magnetic sensor (3 axis)
- Connector
- Power connectors: 2 x parallel datasheet p.2
- Satellite class
- CubeSat datasheet p.1
- Integrated sensors (as printed)
- Optional add-on: digital temperature sensor (SPI / I²C), NTC temperature sensor, 4 coarse sun sensors, IMU (3D Acc + 3D Gyro), magnetic sensor (3 axis) datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier5 lines, in the manufacturer's own wording
- Configuration
- 2 Wings Lateral
- Compatibility
- 3U/6U CubeSat structures
- Solar Cells
- High efficiency triple junction UTJ
- Peak power
- 16 – 17.6 W
- Power connectors
- 2 parallel picoblade
About
The D-SP3X-L-2W is a deployable solar panel specifically designed for the XY side of CubeSat structures, featuring a 2 Wings Lateral Configuration. It is compatible with both 3U and 6U CubeSat structures. This system utilizes high-efficiency triple junction UTJ solar cells, providing a peak power output ranging from 16 to 17.6 W. For power connectivity, it includes 2 parallel picoblade power connectors. The D-SP3X-L-2W also offers an option to add additional solar cells on the body fixed surface for increased power generation. Customization options are available to meet specific mission requirements. Further options include a digital temperature sensor with SPI / I2C communication, an NTC temperature sensor, 4 coarse sun sensors, an inertial module (3D Accelerometer + 3D Gyroscope), and a 3-axis magnetic sensor.
