Elements
Minco Products, Inc

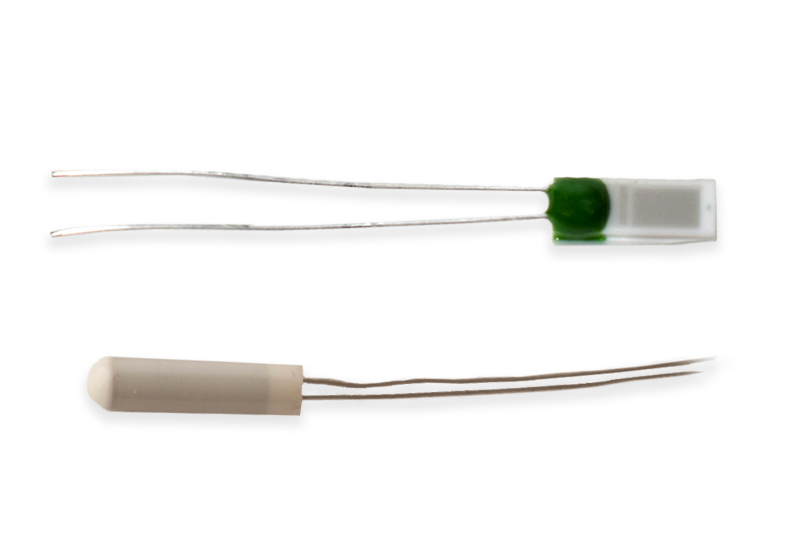

Wire-wound and thin-film ceramic RTD elements deliver accurate, reliable and repeatable temperature measurement over a wide temperature range.
Technical specifications
- Temperature range
- -50 to 260 °C
- Pressure rating
- 3.4 bar
About
Minco’s Elements are wire-wound and thin-film ceramic RTD elements designed to provide accurate, reliable, and repeatable temperature measurement across a broad temperature range. These ceramic elements offer excellent shock and vibration resistance when integrated into probes or potted directly into heat sinks and housings. The most common type of ceramic element is the Platinum RTD, available in 100Ω and 1000Ω options. Both platinum RTD options provide industry-standard measurement capabilities with a .00385Ω/Ω/°C TCR. Additionally, Minco offers other base platinum resistances and TCRs, as well as nickel RTDs. The company incorporates various types of sensing elements in its products, including RTDs, thermocouples, thermistors, and digital integrated circuits. Minco offers a variety of Element sensors, specifically Wire-Wound Sensors and Thin-Film Sensors.
Documentation
- Minco-Temperature-Sensors-and-Instruments-Product-Guide-J.pdf PDF source: www.minco.com ↗
- Minco-Temperature-Sensors-and-Instruments-Product-Guide-J.pdf PDF source: www.minco.com ↗
- Minco-HVAC-Design-Guide-2019.pdf PDF source: www.minco.com ↗
