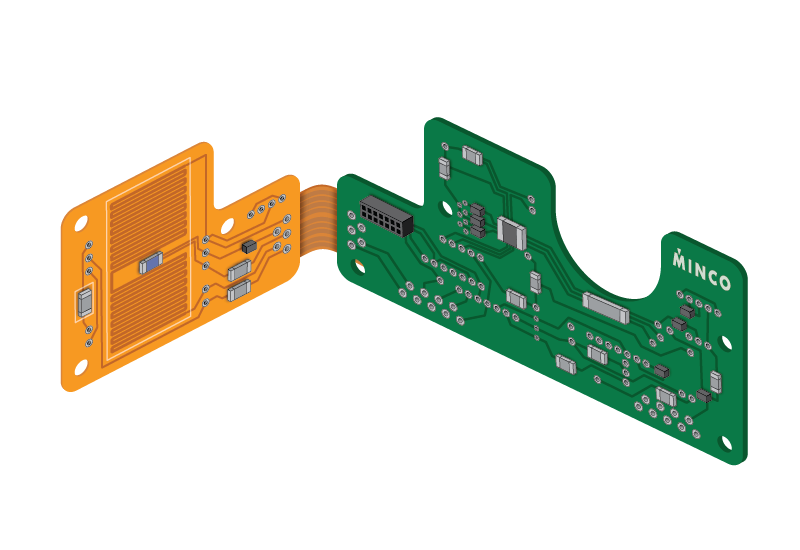

FLEX CIRCUITS
Minco Products, Inc
Minco Products offers innovative and precision-engineered flexible printed circuit board (Flex PCB) solutions, designed to reduce weight and cost while improving performance in demanding applications.
Technical specifications
- Circuit substandard panel size
- 10.5 x 22" max/12 x 24" (267 x 559 mm max./305 x 610 mm), 16.5 x 22" max/18 x 24" (419 x 559 mm max./457 x 610 mm)
- Layers
- 18 for selected designs
- Conductor width/space
- 0.002" (0.05 mm) minimum / 0.002" (0.05 mm) minimum for thinnest foils
- Hole diameter
- 0.002" (0.05 mm) minimum
- Outline dimensions and hole-to-border tolerance
- SRD: 0.015" (0.38 mm) + 0.1% linear distance CMD: 0.010" (0.25 mm) + 0.1% linear distance
- Laser/Hard tool
- 0.003" (0.08 mm) + 0.1% linear distance
- Hole positional tolerance within a pattern
- 0.002"
- Hole positional tolerance pattern to pattern
- 0.002" (0.05 mm) + 0.2% linear distance
- Bend radius (flexibility)
- Double-layer: 10 x circuit thickness (minimum) Multilayer: 24 x circuit thickness (minimum)
- Circuit thickness
- 0.006" (0.15 mm) per layer
- Temperature
- -65 to 150 °C (85 to 302 °F)
- Insulation resistance
- 100 MΩ minimum @ 25 °C (77 °F) typical
- Dielectric (typical)
- 1000 VRMS @ 60 Hz for 30 seconds, 1 mA maximum leakage current
About
Minco Products has firmly established itself as a leading and reliable manufacturer of flexible printed circuit boards (Flex PCB). With a commitment to excellence and a focus on quality, Minco Products consistently delivers innovative and precision-engineered Flex PCB solutions to meet the diverse needs of its clients. Our dedication to maintaining the highest standards in manufacturing is reflected in the durability, reliability, and performance of our flexible circuit boards. Whether it’s for medical devices, aerospace applications, or industrial electronics, Minco Products stands out as a trusted partner, providing top-notch rigid flex PCB solutions that exemplify durability, flexibility, and unparalleled quality in the ever-evolving field of electronics manufacturing. Minco invests heavily in rigid flex circuit technologies and has gone through rigorous testing to ensure the highest possible reliability and repeatability in our processes. We offer various configurations including single-layer, double-layer, and multilayer flex and rigid flex, addressing a variety of application needs. Our solutions can include fully integrated thermal, sensing, and control technologies to simplify assembly. Customers can select application-ready specifications, choosing materials, physical properties, electrical characteristics, and finishes to customize performance for specific use cases. We also conduct testing for physical and electrical performance to confirm flex circuit designs meet specifications for shock resistance, insulation resistance, inductance, impedance, and more. Minco’s expertise is proven over 60 years, helping engineering teams design and build mission-critical devices for high-reliability industries.
