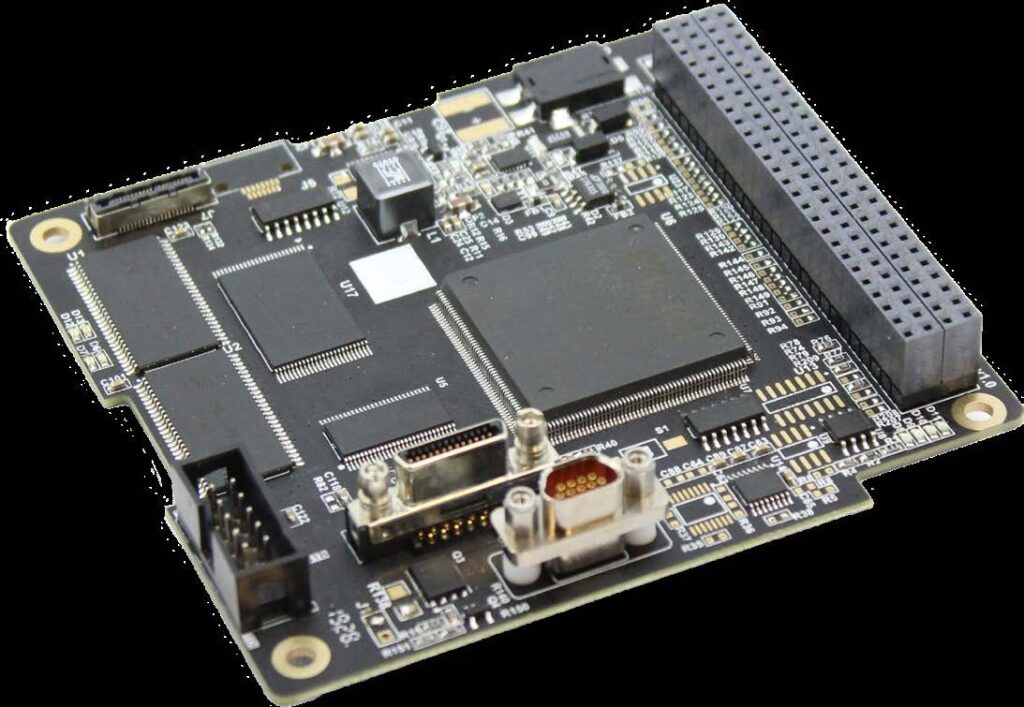

FG-1
CAVU Aerospace
The FG-1 is a state-of-the-art Cubesat satellite board designed for high-quality image capture from CameraLink cameras, featuring a radiation-hardened FPGA and robust environmental specifications for space operation.
Key figurescomparable across the catalogue
- Mass
- 75 kg
- Power
- 1 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Supply voltage
- Single 12 V or 5 V and 12 V
- Power consumption
- <1 W for FG-1 Board
- Mass
- 75gr
- Dimensions
- Cubesat standard
- Temperature
- -40 C to +85 C @ 10 bar
- Radiation hardness
- 30Krad (Si), SEE @ 60MeV Latch-up Immune
- Shocks
- ISS CubeSat Deployer Compatible
- Random vibrations
- ISS CubeSat Deployer Compatible
- Nand flash
- Up to 64Gbit SLC with ECC and EDAC protection
- Serial memory
- FRAM/MRAM
- Dram
- 1Gb with optional ECC and EDAC
- Interfaces
- CAN2.0
- Interfaces (2)
- High Speed QSPI LVDS Payload
- Interfaces (3)
- Configurable UART and I2C
- Interfaces (4)
- Optional Micro-D for Control
- Interfaces (5)
- SDR26 Medium/Full Camera Interface
About
The FG-1 is a state-of-the-art Cubesat satellite board specifically designed for capturing high-quality images from a CameraLink camera in a Cubesat satellite. It embodies the latest advancements in space technology, ensuring optimal performance even in the harsh conditions of space. The device is built to withstand the rigors of space travel, providing consistent performance throughout its lifespan. It operates efficiently within a temperature range of -40 to 85 degrees Celsius and adheres to launch vehicle shocks and vibrations. At its core, the FG-1 utilizes an Actel/Microsemi Flash-based FPGA, which is immune to Single Event Upsets (SEUs). It supports Power Over CameraLink (PoCL) with an onboard On/OFF switch and CameraLink UART configuration. The FG-1 is capable of handling complex computations and data processing tasks, making it an invaluable asset for any imaging Cubesat mission. It offers flexible power input options, extensive memory configurations, and various interfaces for control and data transfer.
