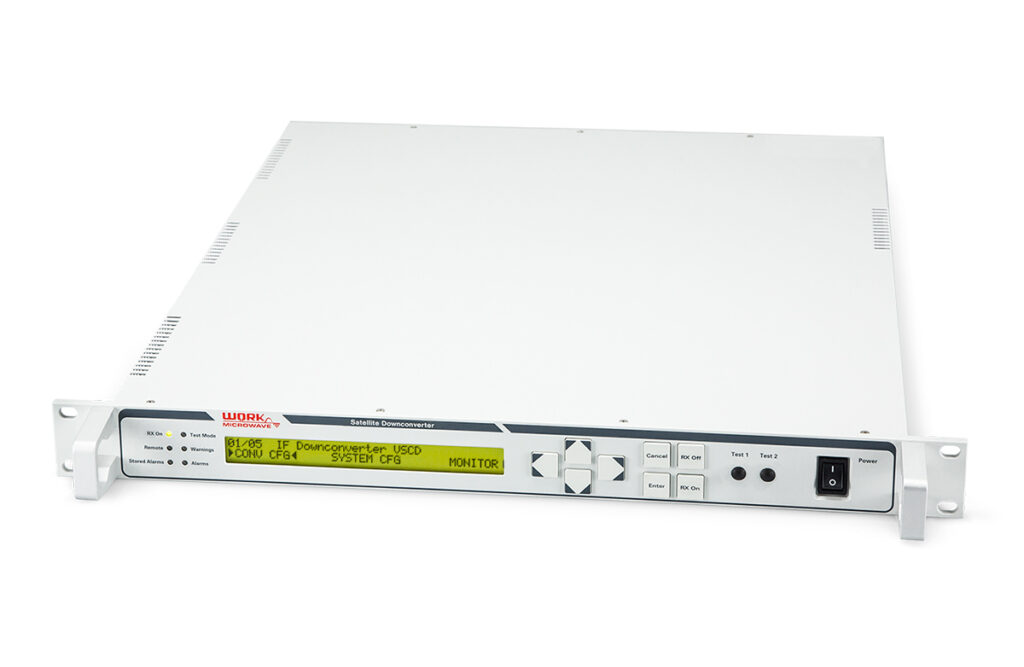

IF Downconverter VSCD
WORK Microwave
Frequency Downconverters for L- to Q-band, available in indoor and outdoor configurations, suitable for standard and customized applications.
Technical specifications
- Bands
- L, S, C, X, Ku, K(DBS), Ka, Q-Band
- IF Frequencies
- 70 MHz, 140 MHz, 230 MHz or 720 MHz
- Phase Noise
- < -50 dBc/Hz @ 10 Hz
- OCXO Stability
- < 10^-7 / year
- Gain Slope Equalizer
- Adjustable (standard)
- Gain Compensation
- Digital
- Switchable IF
- Optional
About
The WORK Microwave IF Downconverter VSCD offers frequency downconversion across a wide range of bands, including L, S, C, X, Ku, K(DBS), Ka, and Q-Band. It supports various IF frequencies such as 70 MHz, 140 MHz, 230 MHz, or 720 MHz. Key features include very low phase noise, specified at less than -50 dBc/Hz at 10 Hz, and a highly stable OCXO with long-term stability better than 10^-7 per year. The unit comes with an adjustable gain slope equalizer as a standard feature and incorporates digital gain compensation. An optional switchable IF is also available, providing flexibility for different system requirements. These downconverters are designed for use in teleport infrastructure applications.
