Electric Lock
KOSMOLAB Launch Services

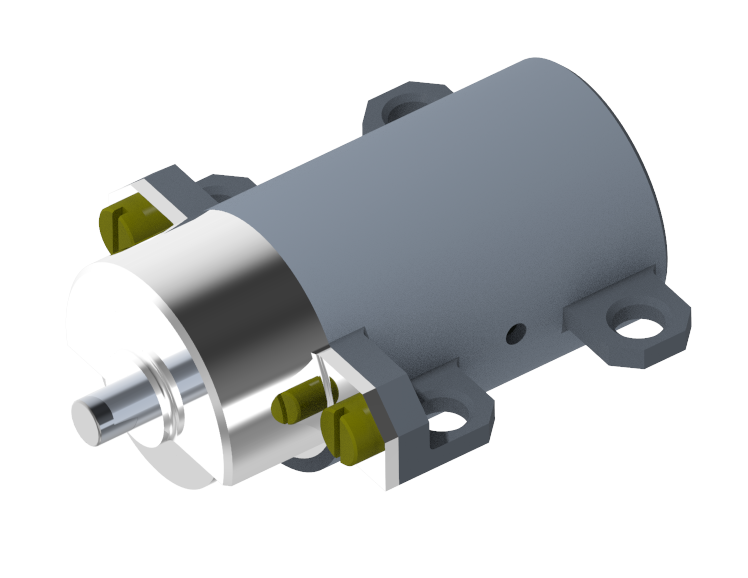

The Electric Lock is a mechanism designed for the release of actuating mechanisms in space-rocket hardware, offering custom modifications based on specific requirements.
Typed specifications20 values · 19 confirmed by the manufacturer
Discloses 8 of 10 fields engineers filter by in this category (category median 2). ✓ Manufacturer-confirmed data · 2026-09
- Mass
- 100 g ✓ manufacturer max · datasheet p.1
- Envelope (L×W×H)
- 48.7 × 37.4 × 22.4 mm ✓ manufacturer product page
- Release time
- 10 ms ✓ manufacturer manufacturer
- Operating temperature
- -60–60 °C ✓ manufacturer datasheet p.1
- TRL
- 9 ✓ manufacturer manufacturer
- Lead time
- 3 months ✓ manufacturer typ. · indicative · manufacturer
- Export status
- ITAR-free ✓ manufacturer manufacturer
- Separation type
- electromagnetic ✓ manufacturer manufacturer
- Release command type
- voltage pulse ✓ manufacturer manufacturer
- Release actuator voltage
- 28 V ✓ manufacturer manufacturer
- Command pulse duration
- 200 ms ✓ manufacturer manufacturer
- Cycles / reuses
- 100 ✓ manufacturer manufacturer
- Flight heritage
- TPK SERIES deployer have been flight-qualified as part of the Angara-A5 launch vehicle (2024 launch). All satellites were successfully deployed into target orbits. printed on this datasheet; text names TPK SERIES deployer · datasheet p.2
- Missions flown
- 1 ✓ manufacturer manufacturer
- Release current
- 2 A ✓ manufacturer manufacturer
- Launch vehicles
- Angara ✓ manufacturer manufacturer PSLV PSLV✓ manufacturer | Soyuz-2 Soyuz-2✓ manufacturer | Soyuz-2.1v Soyuz-2.1v✓ manufacturer | Start-1M Start-1M✓ manufacturer
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier5 lines, in the manufacturer's own wording
- Dimensions (L×W×H)
- 48.7 × 37.4 × 22.4 mm
- Mass
- ≤ 0.1 kg
- Armature stroke
- ≥ 4.5 mm
- Pull force
- 0.45 ± 0.05 kg
- Operating temperature
- -60°C to +60°C
About
The Electric Lock is a specialized component developed for the release of actuating mechanisms within space-rocket hardware. KosmoLab offers modifications of this Electric Lock to meet specific customer requirements, including development, production, and acceptance tests of the actuating mechanism. Customers are encouraged to submit their application and required parameters to receive an optimal complex solution. The lock is designed to operate in extreme temperatures ranging from -60°C to +60°C, has a mass of less than 0.1 kg, an armature stroke of at least 4.5 mm, and a pull force of 0.45 ± 0.05 kg. Its compact dimensions are 48.7 × 37.4 × 22.4 mm.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
